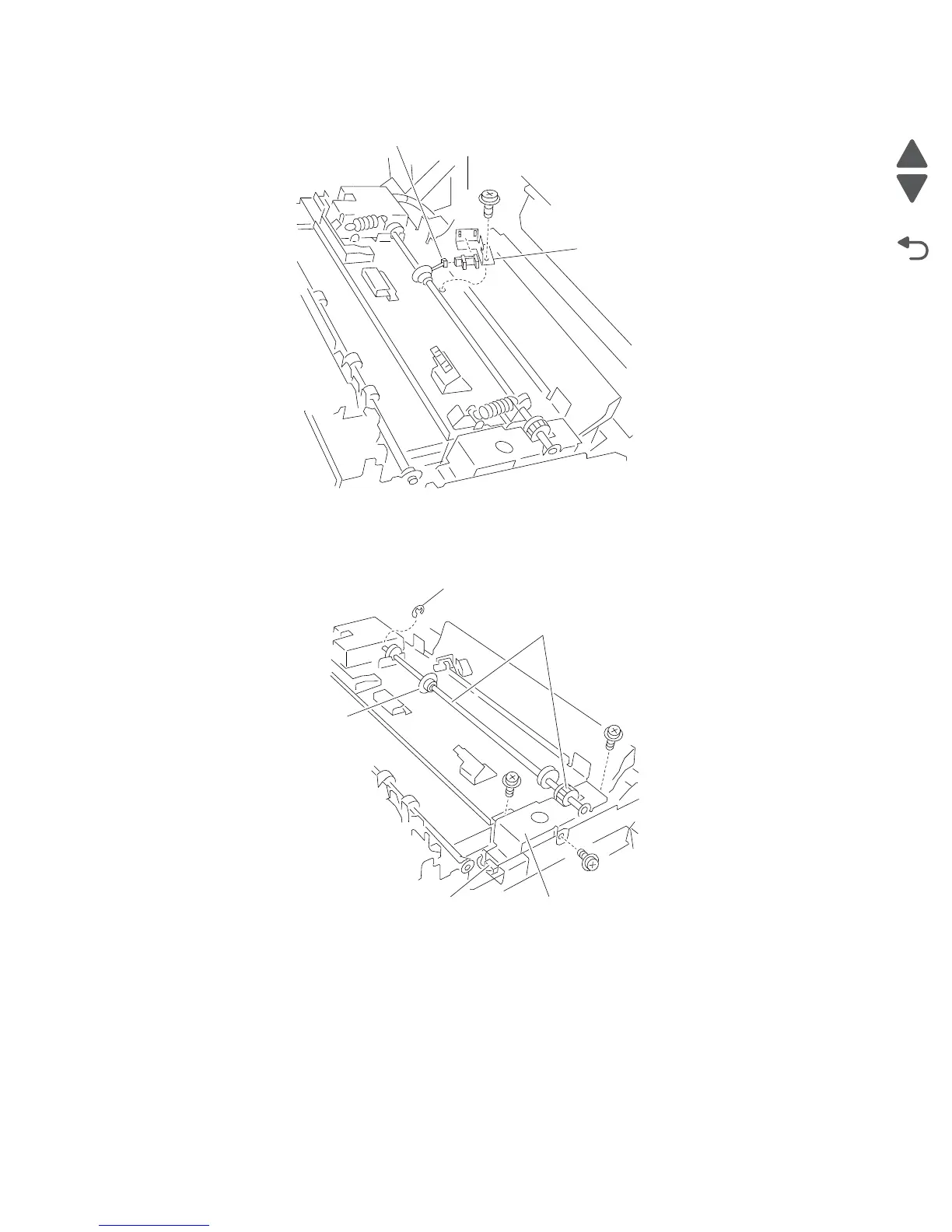

Replacement note: When reinstalling the transfer roll retract cam assembly (D), ensure that the bushing
(E), pin (F), and washer are replaced.
B
Connector
C
Actuator
Connector
E-clip
D
