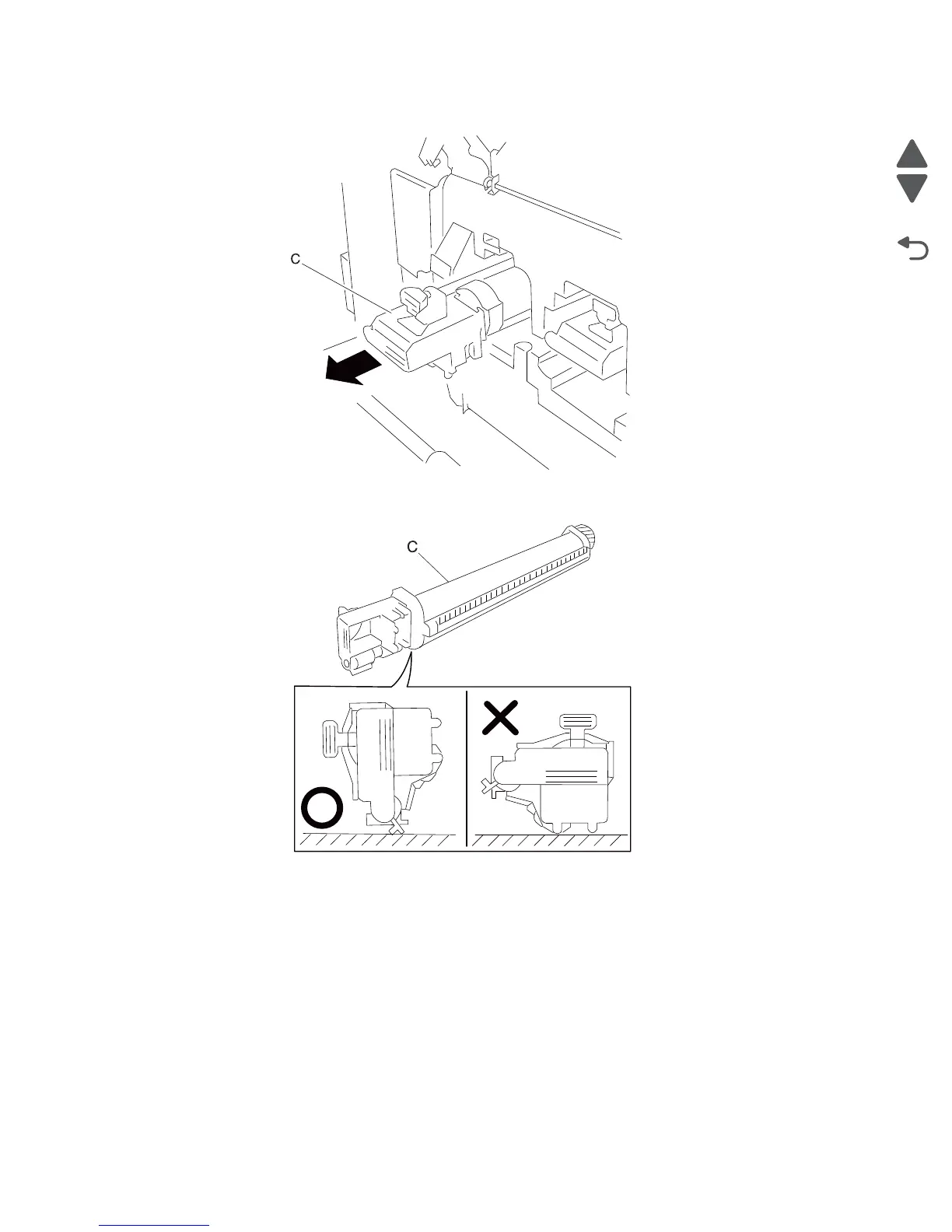

5. Pull the appropriate PC unit assembly (C) from the machine.
Note: When the PC unit assembly (C) is removed, ensure that it is stored in the position as shown in the
graphic below.
Replacement warning: When replacing the PC unit assembly (C), ensure that the rail on the PC unit
assembly (C) is properly inserted into the metal track or physical binding and damage will occur. In the
