Repair information 4-107
7510
Go Back
Previous
Next

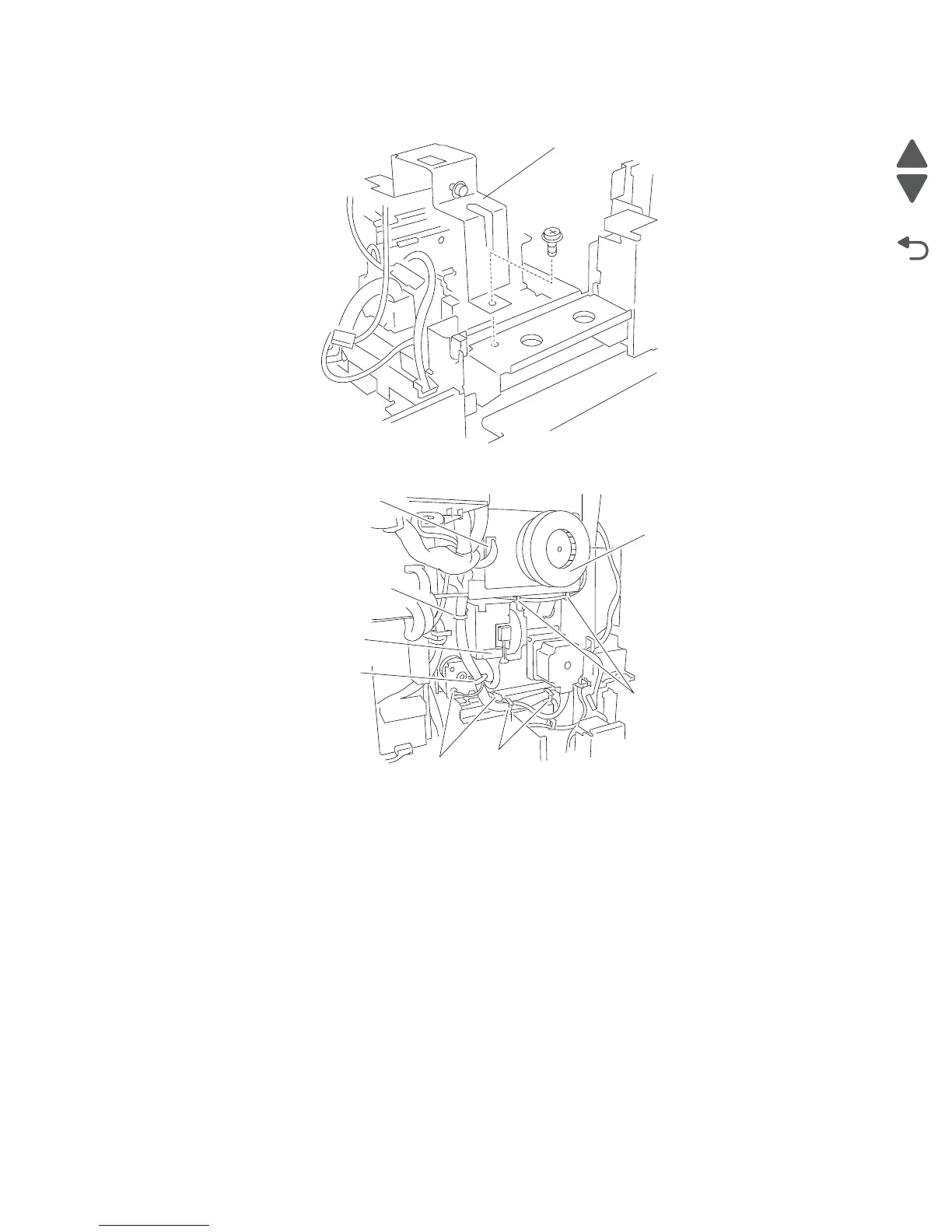

15. Gently remove the K developer transport drive motor assembly (A).
A
Connector
Frame clamp
Connector
Clamp
Connectors
Clamps
Clamps
B
