1-44 Service Manual
7510
Go Back
Previous
Next

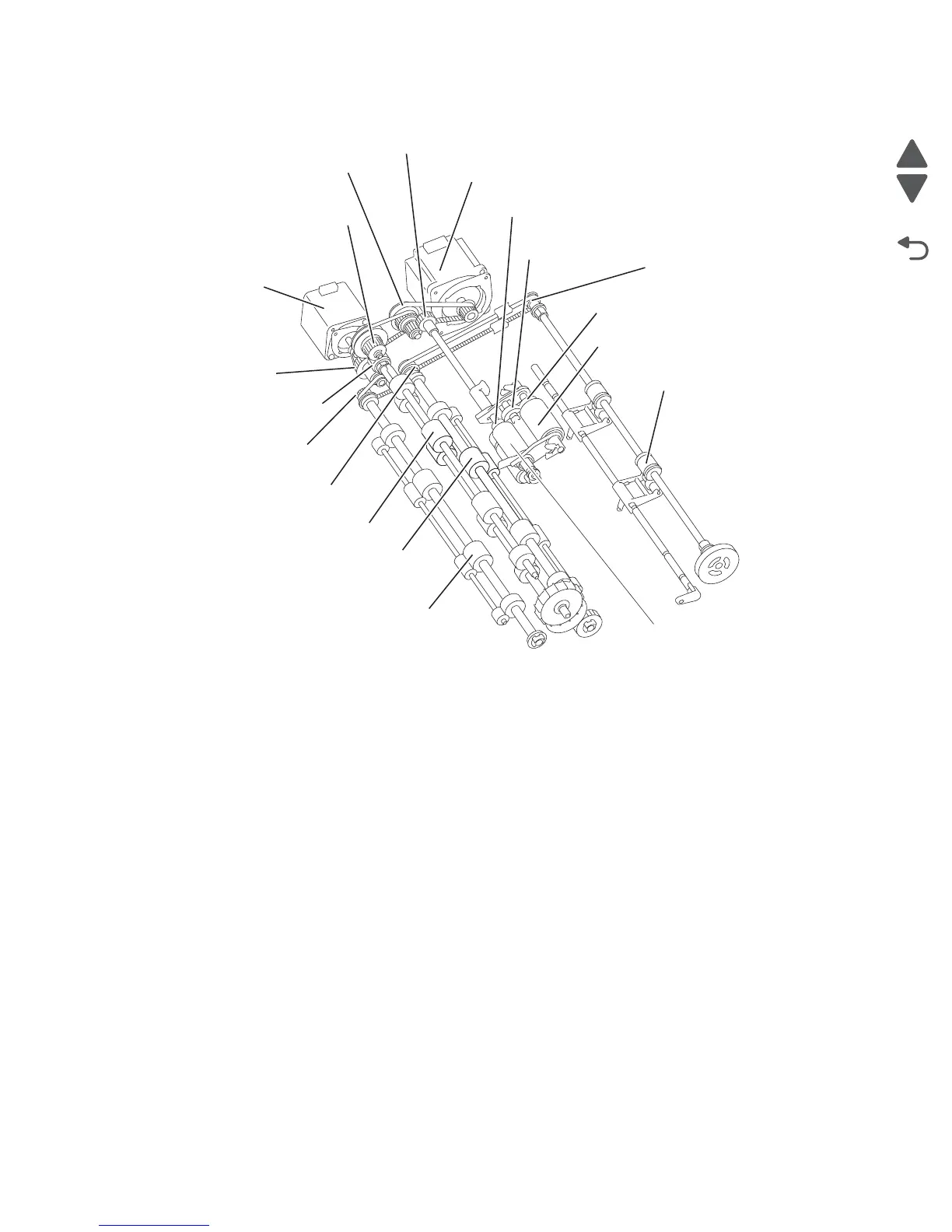

Feed roll
Exit roll assembly
Pick roll
Pick roll drive gear 34T
Exit roll drive pulley 20T
Pick roll idler gear 36T
Feed roll drive gear 26T
ADF feed motor assembly
Feed/pick drive gear 20T
Feed drive gear/pulley14/32/37T
Transport roll drive
gear pulley 20/50T
ADF registration motor
Registration main drive
pulley 21/54T
Transport roll drive gear 20T
Registration roll drive pulley 28T
Exit/feed-out drive pulley 25/28
Transport roll assembly
Registration roll assembly
Feed-out roll assembly
