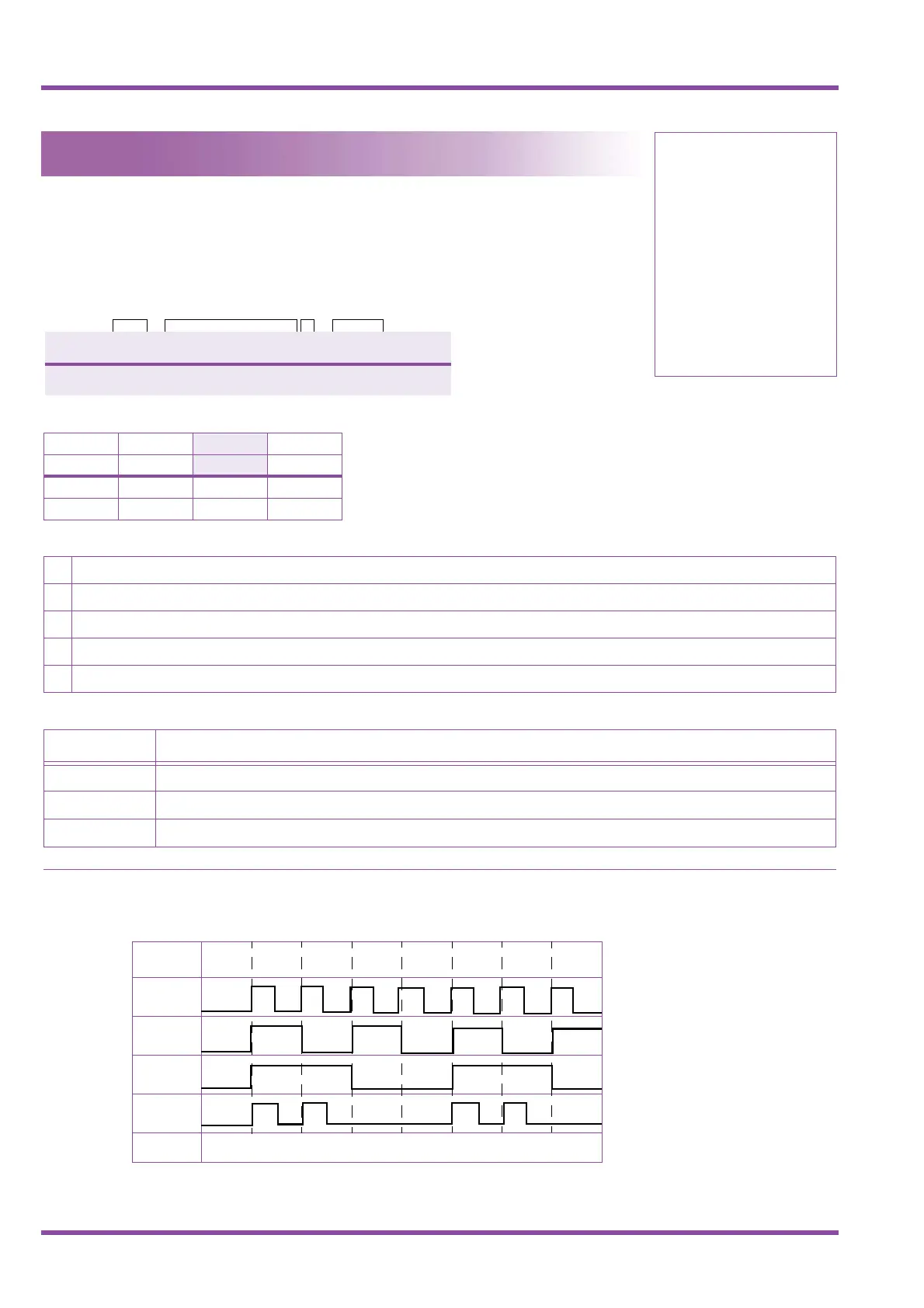

1 - 188 External Ring Relay Cycle Selection
NEC Business Solutions Ltd Xen Master & Xen Axis
A6-324000-642-02 - Release 6.0
May 2003
1-7-07
System Mode
1
Submode
7
Data No.
07
PC Programming
a
+BP
External Ring Relay Cycle Selection
General Description
Use this Memory Block to assign one of six distinctive ringing controls/intervals to relay
circuits.
Display
Settings
LK 1 LK 2 LK 3 LK 4
The shaded area indicates the default setting.
Cycle 1 Cycle 2 Cycle 3 Cycle 4
LK 5 LK 6 LK 7 LK 8
Cycle 5 Cycle 6 Continuous
Programming Procedures
1 Go off-line.
2 Press L1 + LK7 +
KG to access the Memory Block.
3
Press corresponding CO/PBX line key to change the data option.
4 PressNto write the data.
5 Press
Pto go back on-line.
Related Programming
M.B. Number Memory Block Name
1-2-00
Internal Paging Timeout Selection
1-7-02
External Speaker Connection Selection
2-08
ECR Relay to Tenant Assignment
N
An External Tone relay or the Night Chime relay must be assigned in Memory Block 2-08 ECR Relay to Tenant
Assignment before the tone is generated from JK1.
0 7 : E X T R I N G 1 = C Y 3
T I M E D I S P L A Y
Data
No.
Title
Setting
Data
Ext Ring
Relay
(1~4)
s= seconds
Cycle
1
2
3
4
5
Continuous
0s 1s 2s 3s 4s 5s 6s
To Next Page
