Tie Line Loop Off-Guard Time Selection 1 - 281
Programming Manual May 2003
A6-324000-642-02 - Release 6.0
May 2003
3-21
System Mode
3
Submode
—
Data No.
21
PC Programming
a
+ALM

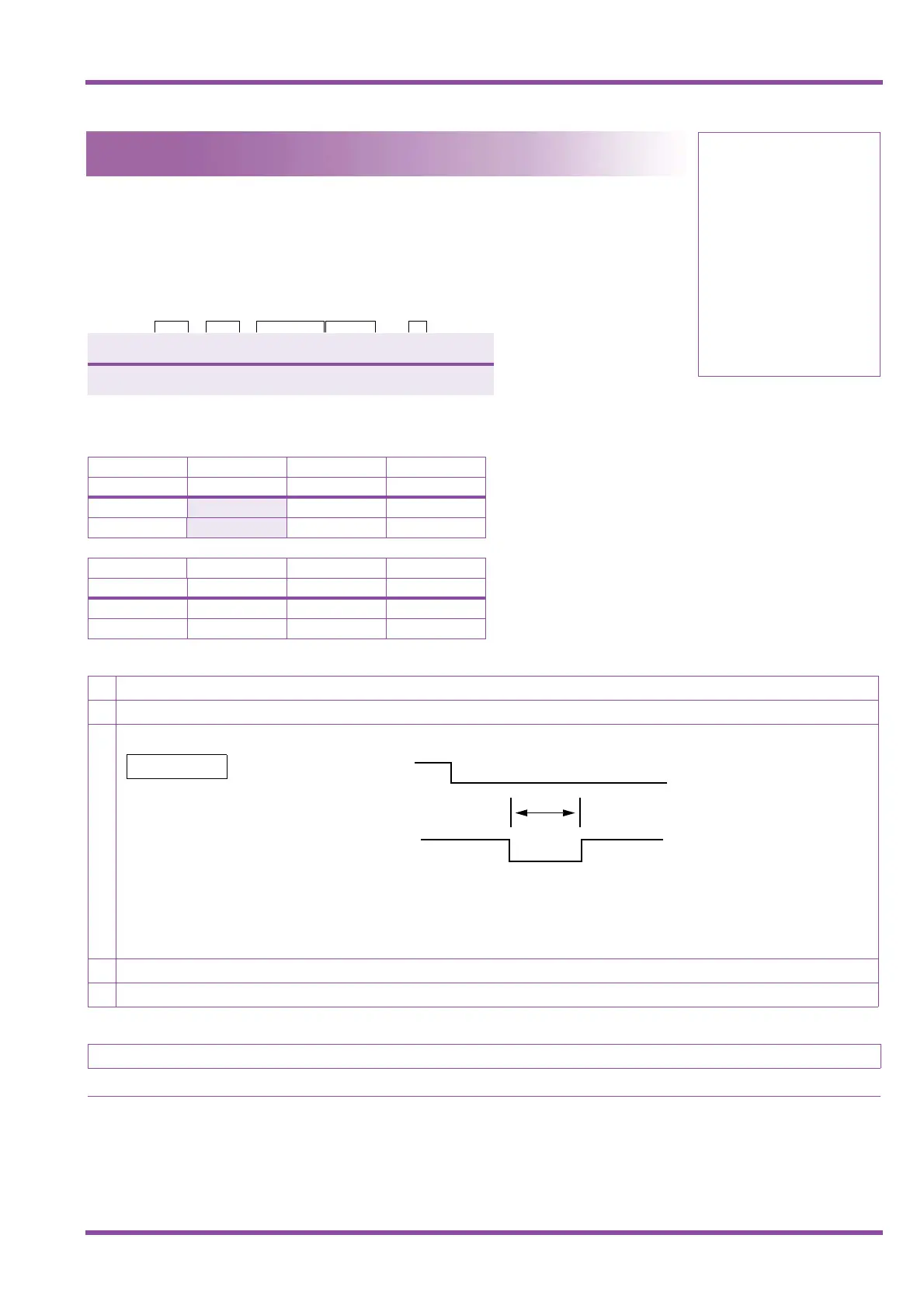

Tie Line Length of Wink Signal Selection
General Description
Use this Memory Block to specify the duration of a wink pulse that is sent to another
system.
Display
Settings
(Page 1)
LK 1LK 2LK 3LK 4
The shaded area indicates the default setting.
30 ms. 60 ms. 90 ms. 120 ms.
LK 5
LK 6 LK 7 LK 8
150 ms.
180 ms. 210 ms. 240 ms.
(Page 2)
LK 1LK 2LK 3LK 4
270 ms. 300 ms. 330 ms. 360 ms.
LK 5 LK 6 LK 7 LK 8
390 ms. 420 ms. 450 ms. 480 ms.
Programming Procedures
1 Go off-line.
2 Press LK3 +
N + BA to access the Memory Block.
3 Press the corresponding CO/PBX line key to change the data option.
Note: Use the following to enter data:
S to go to the next page
T to go to the previous page
R to go to the next CO/PBX Line No.
4 Press
Nto write the data.
5 Press
Pto go back on-line.
Related Programming
No related programming is necessary for this Memory Block.
N
1. Specify the Wink Start method in Memory Block 3-24 Tie Line Incoming Interdigit Timeout Selection.
0 1 / 2 1 : W I N K 1 8 0 | 1
T I M E D I S P L A Y
CO/PBX
No.
(01~64)
Data
No.
Title
Page
No.
Setting
Data
Wink Pulse Sending
Receiving Side
Incoming Signal Detection
Time
DC Loop Supervision
To Next Page
