3.3

Date Code 20170927 Instruction Manual SEL-751 Relay

PC Software

Terminal

Terminal Window

Select Communications > Terminal on the ACSELERATOR QuickSet main

menu bar to open the terminal window (see Figure 3.4).

Figure 3.4 Communications Menu

The terminal window is an ASCII interface with the relay. This is a basic

terminal emulation. Many third-party terminal emulation programs are

available with file transfer encoding schemes. Open the terminal window by

either clicking Communications > Terminal or by pressing <Ctrl+T>.

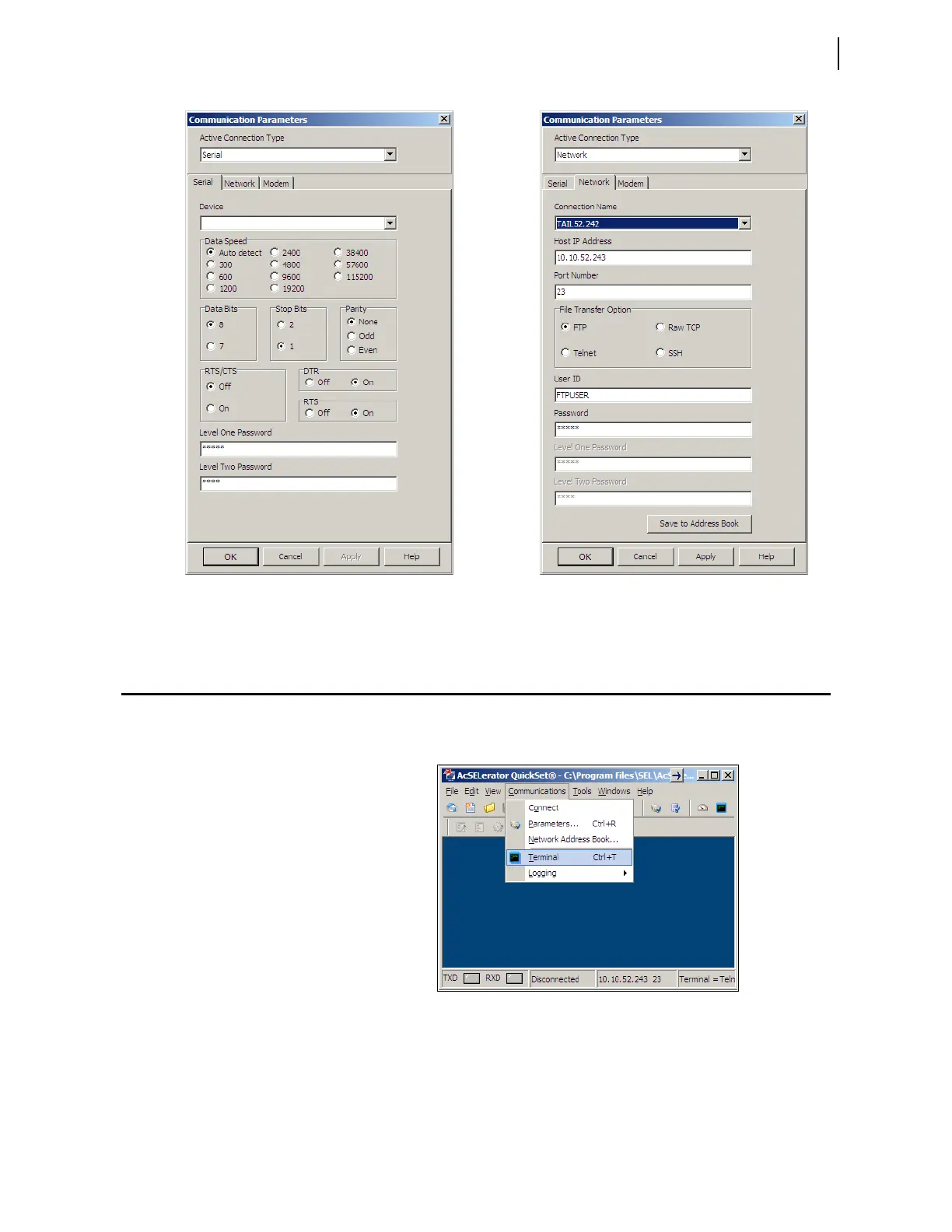

Figure 3.2 Serial Port Communication Parameters

Dialog Box

Figure 3.3 Network Communication Parameters

Dialog Box
