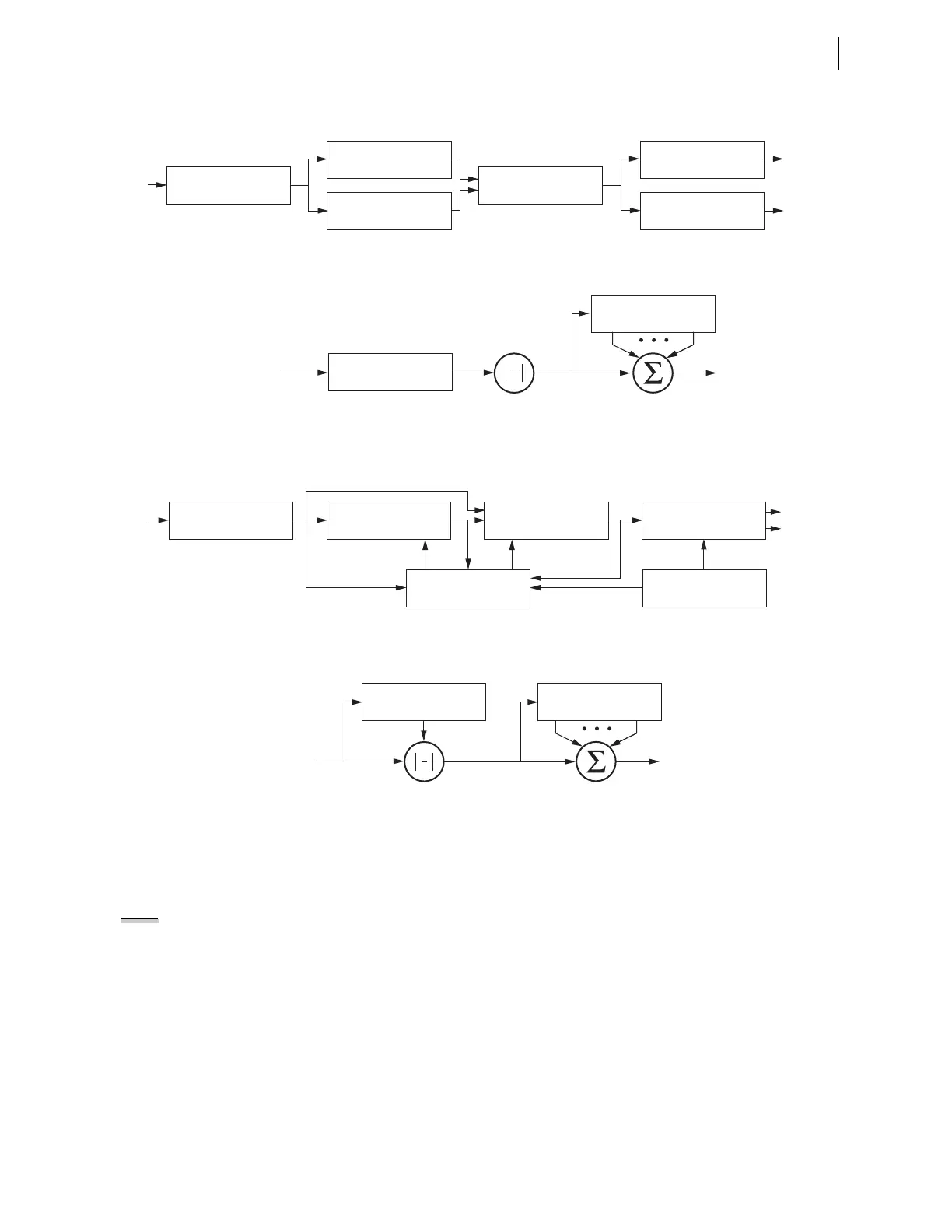

Figure 4.56 HIF Detection Block Diagram
HIF Detection Settings
Table 4.28 lists the relay settings corresponding to high-impedance fault
detection. High-impedance fault detection is enabled by group setting
EHIF := Y or T. When EHIF is set to Y, the detection algorithm begins calcu-
lating a running average of the applicable algorithm quantity to provide a sta-
ble prefault reference. This initial tuning asserts Relay Word bits ITUNE_x
(where x = A, B, C). This process takes 24 hours but is interrupted by a change
in the EHIF setting value, a change in the FNOM setting value, a loss of load
current, or a relay trip condition.
Once interrupted, the initial tuning restarts the next time the relay detects load
current. If necessary, it can be restarted with the INI HIF command or by
asserting the programmable SEL
OGIC control equation HIFITUNE. See INI
HIF Command in Section 7: Communications for more information on the
INI HIF command. After the initial tuning process, the relay retains the
learned value for four hours. If a line is de-energized for more than four hours,
