Schweitzer Engineering Laboratories SEL-751 - Table; Figure 4.24 Internal Enables (DIRVE and DIRIE) Logic for Zero-Sequence Voltage-Polarized and Channel in Current-Polarized Directional Elements

To Next Page

To Previous Page

4.37

Date Code 20170927 Instruction Manual SEL-751 Relay

Protection and Logic Functions

Group Settings (SET Command)

q From Figure 4.73; w to Figure 4.27 and Figure 4.28; e to Figure 4.25 and

Figure 4.27;

r to Figure 4.23, Figure 4.32, Figure 4.33, Table 4.19, and Table 4.20;

t to Figure 4.28.

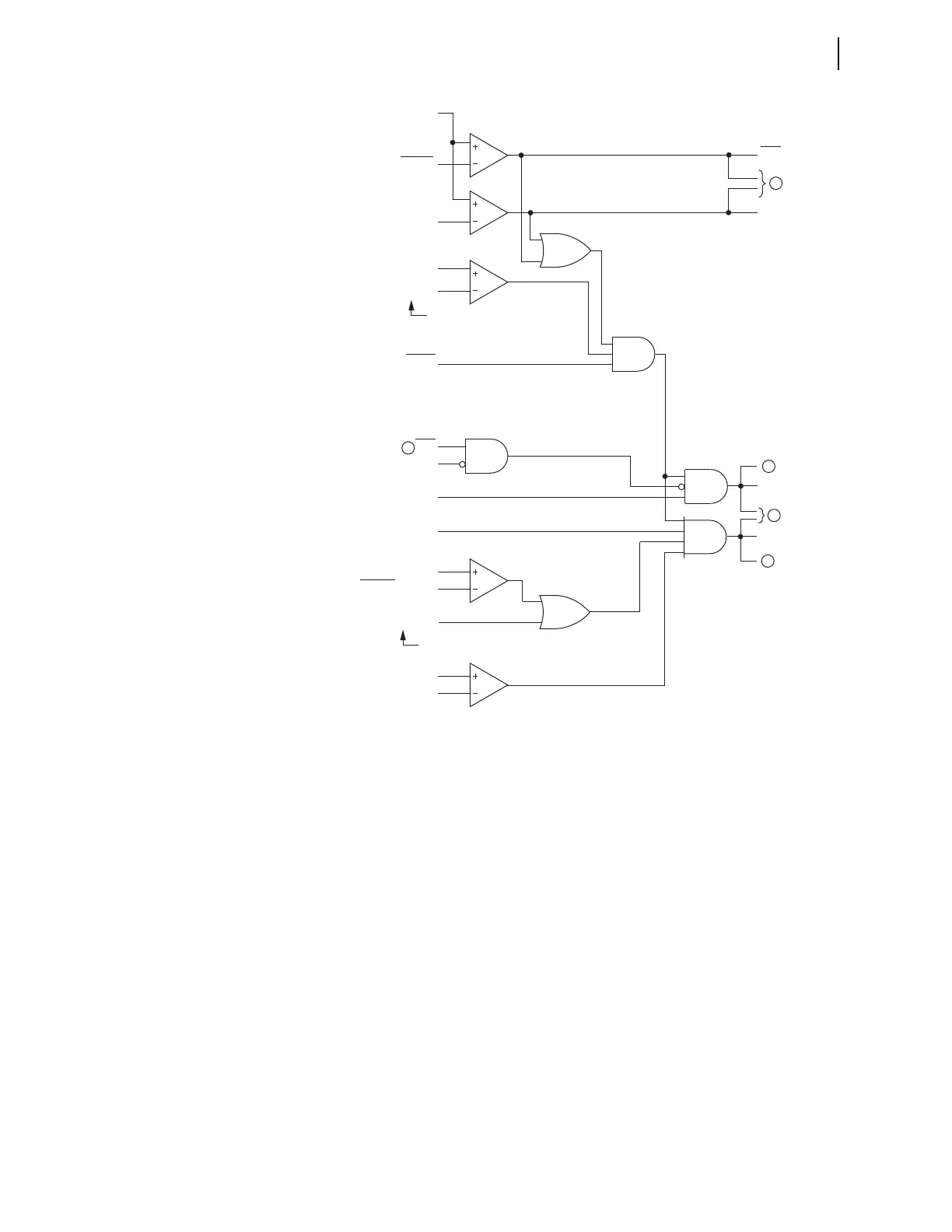

Figure 4.24 Internal Enables (DIRVE and DIRIE) Logic for Zero-Sequence

Voltage-Polarized and Channel IN Current-Polarized Directional Elements

VSCONN := 3V0

Loss-of-Potential

LOP

"I" listed in

setting ORDER

Setting Enable

"V" listed in

setting ORDER

DIRIE

(Internal Enable)

DIRVE

(Internal Enable)

Neutral Ground Threshold = (Channel I

Nominal Rating) • (0.05)

EDIRIV

50GF

50GR

Neutral Ground

Threshold

50GRP

50GFP

Setting

(Residual)

Relay

Word

Bits

SELOGIC Enable

Relay

Word

Bits

= I

G/3

)

a0 • |I

KGN • CTRN/CTR • |I

KGN = OFF

Settings

SELOGIC

Setting
