8.23

Date Code 20170927 Instruction Manual SEL-751 Relay

Front-Panel Operations

Touchscreen Display Front Panel

Table 8.9 identifies all the applications available in the Meter folder.

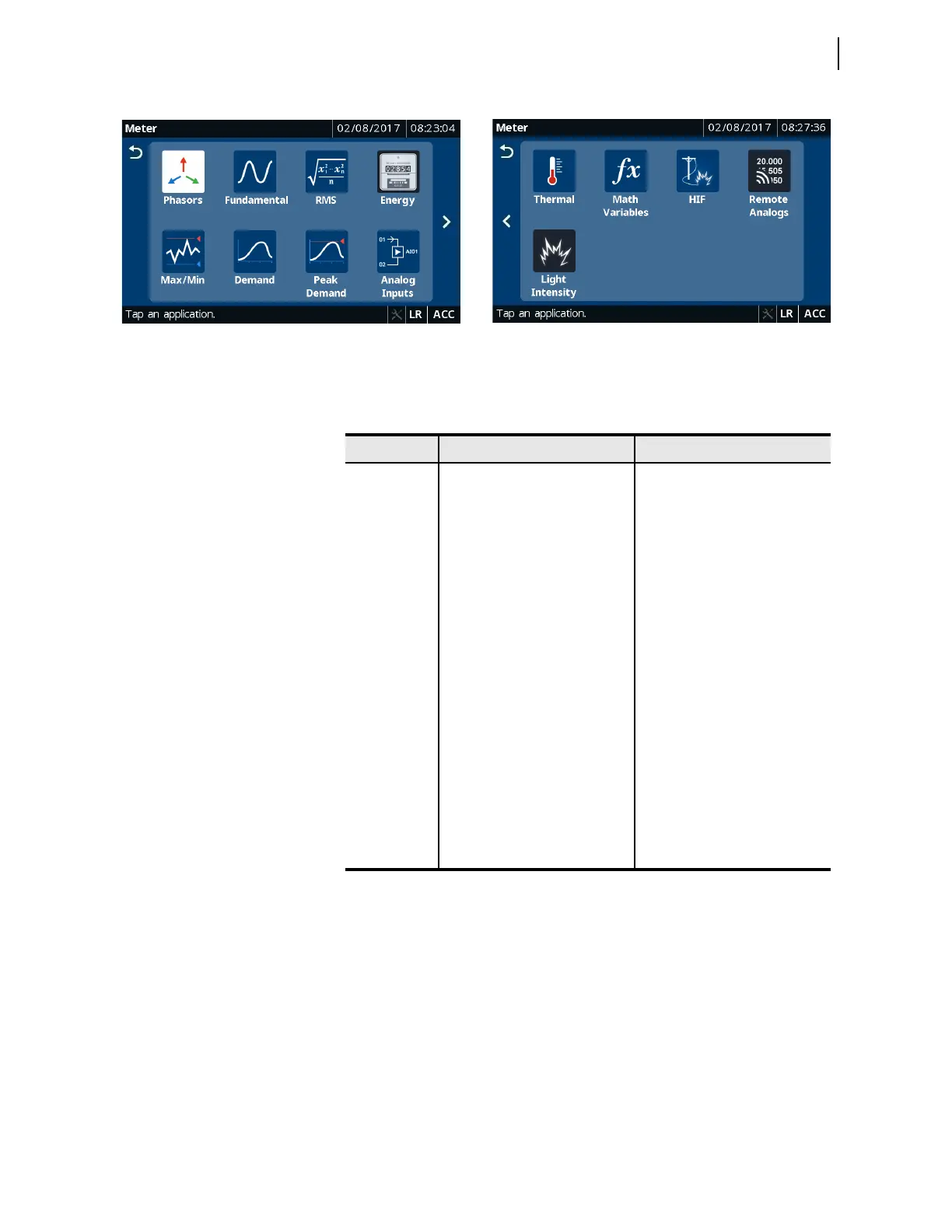

Figure 8.31 Meter Applications

Table 8.9 Meter Application Availability

Folder Name Application Name Comments

Refer to the relay part number.

Meter

Phasors Always available

Fundamental Always available

RMS Always available

Energy Available if the relay supports

voltages

Max/Min Always available

Demand Always available

Peak Demand Always available

Analog Inputs Shown when (Slot C = 5x or 6x) or

(Slot D = 5x or 6x) or (Slot E = 5x

or 6x)

Thermal Always available

Math Variables Always available

HIF Shown when HIF is supported,

i.e., when the firmware option is

3, 5, or 8

Remote Analogs Always available

Light Intensity Shown when Slot E = (70 or L0)

or 77
