Schweitzer Engineering Laboratories SEL-751 - Figure 4.61 Undervoltage Element Logic

To Next Page

To Previous Page

4.99

Date Code 20170927 Instruction Manual SEL-751 Relay

Protection and Logic Functions

Group Settings (SET Command)

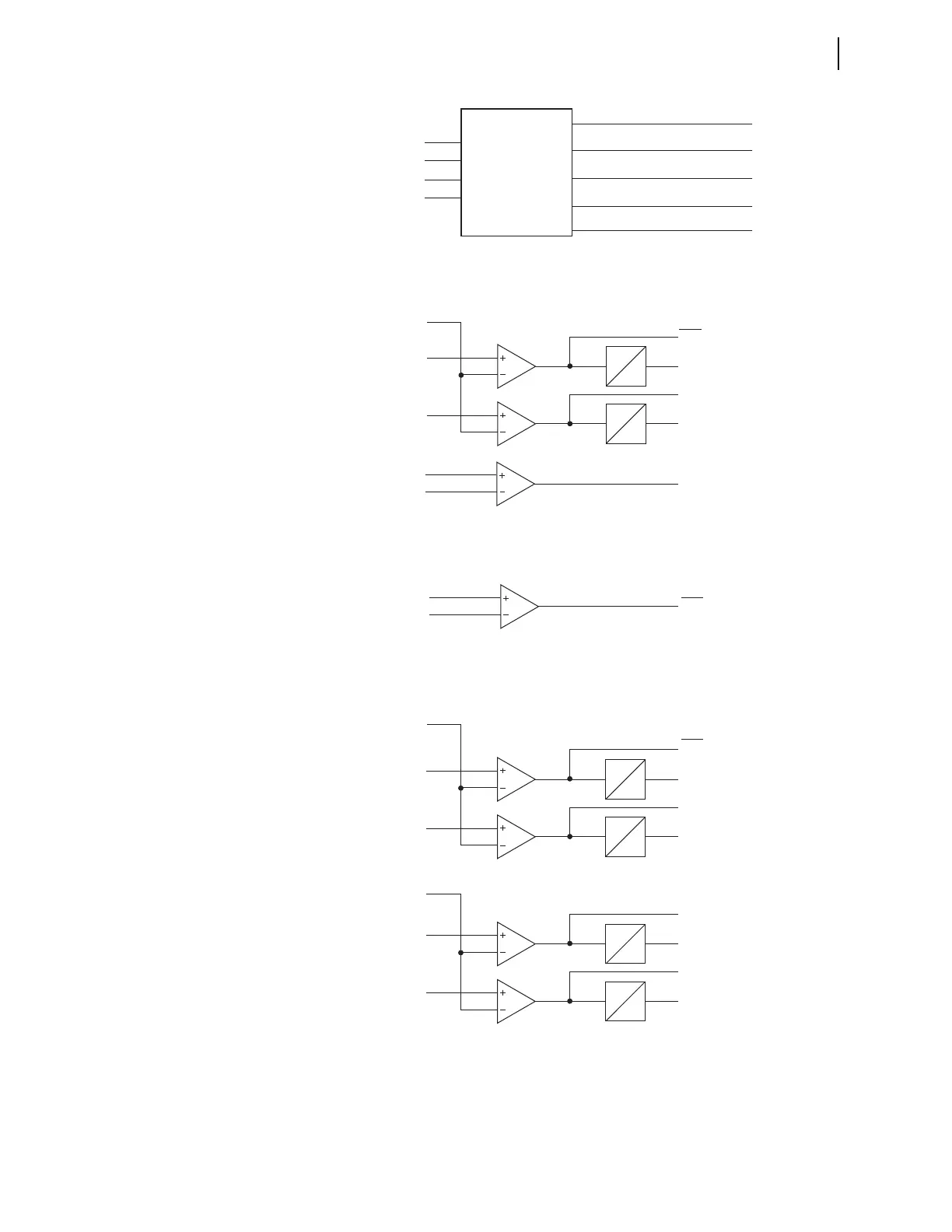

Figure 4.61 Undervoltage Element Logic

When DELTA_Y := DELTA

27PP1P

|VPPmax|

3P27

When DELTA_Y := DELTA or WYE

When DELTA_Y := WYE

27PP1P

27PP1D

27PP1T

27PP2P

27PP2D

27PP2T

Relay

Word

Bits

|VPPmin|

|VS|

27P1P

|VPmin|

27P1D

27P1T

27P2P

27P2D

27P2T

Relay

Word

Bits

27P2

27P1

3P27

|VPmax|

27P1P

27PP1

27PP2

27S1P

27S1D

27S1T

27S2P

27S2D

27S2T

27S1

27S2

Relay

Word

Bits

Note: 27S1P, 27S2P, 27P1P, 27P2P, 27PP1P, and 27PP2P are settings

VAB or VA

VBC or VB

VCA or VC

Voltage

Magnitude

Calculation

|VS|

|VPmin|

(Minimum Phase Voltage Magnitude)

(Maximum Phase Voltage Magnitude)

|VPmax|

(Maximum Phase-to-Phase Voltage Magnitude)

|VPPmax|

(Minimum Phase-to-Phase Voltage Magnitude)

|VPPmin|
