8.31

Date Code 20170927 Instruction Manual SEL-751 Relay

Front-Panel Operations

Touchscreen Display Front Panel

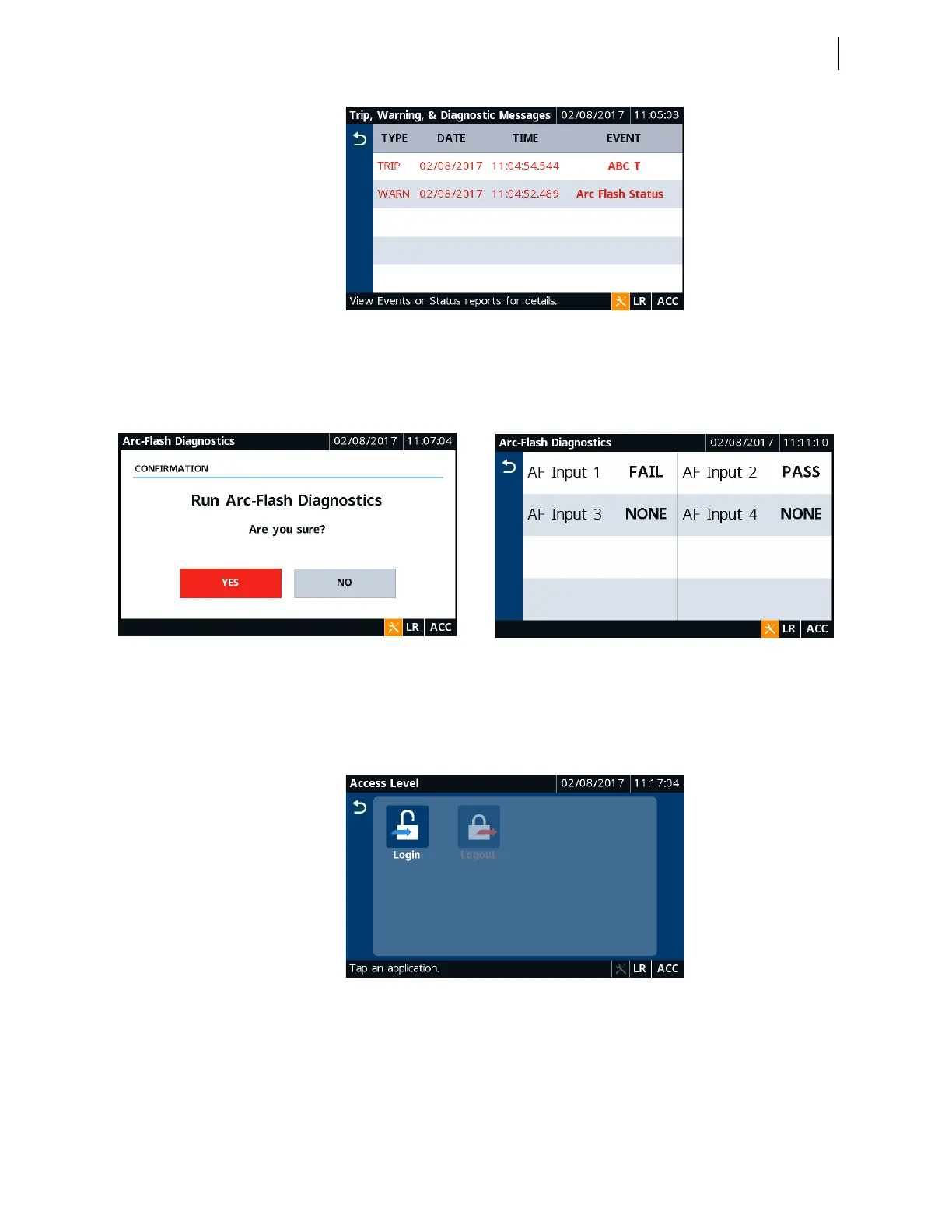

Figure 8.56 Trip and Diagnostic Messages

Tap on the Arc-Flash Diagnostics application to run a diagnostic check on the

arc-flash sensors. Figure 8.57 and Figure 8.58 show typical arc-flash

diagnostics screens.

Access Level

Tapping this folder navigates you to the Access Level screen where you can

either log in to or log out of the 2AC level.

Figure 8.59 Access Level Applications

Figure 8.57 Arc-Flash Diagnostics Figure 8.58 Arc-Flash Diagnostics Confirmation
