Schweitzer Engineering Laboratories SEL-751 - Figure 4.91 Response of Thermal and Rolling Demand Meters to a Step Input (Setting DMTC = 15 Minutes)

To Next Page

To Previous Page

4.155

Date Code 20170927 Instruction Manual SEL-751 Relay

Protection and Logic Functions

Group Settings (SET Command)

Comparison of Thermal and Rolling Demand Meters

The example in Figure 4.91 shows the response of thermal and rolling demand

meters to a step current input. The current input is at a magnitude of zero and

then suddenly goes to an instantaneous level of 1.0 per unit (a “step”).

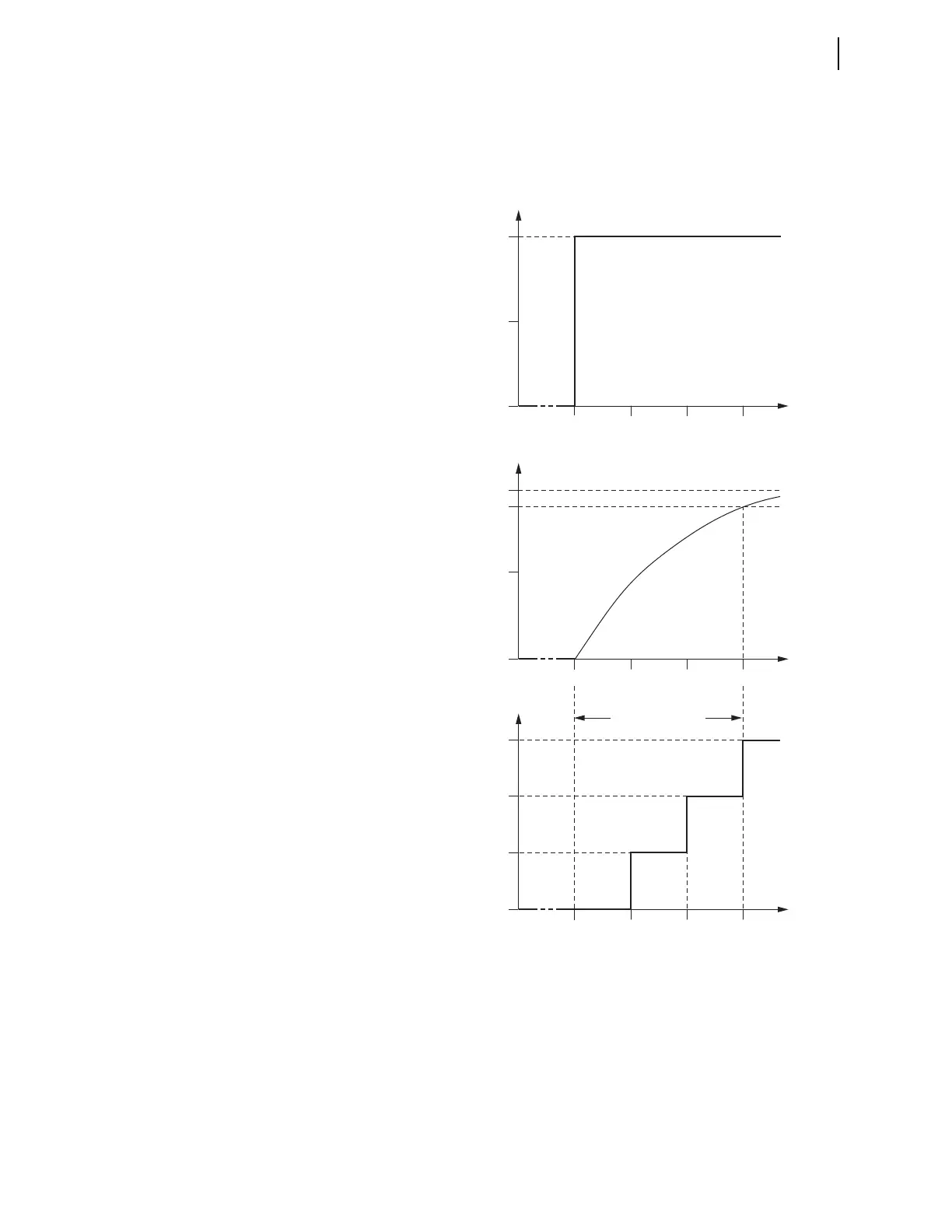

Figure 4.91 Response of Thermal and Rolling Demand Meters to a Step Input

(Setting DMTC = 15 minutes)

Thermal Demand

Meter Response

(EDEM = THM)

Thermal Demand Current (per unit)

0 5 10 15

0.5

0.9

1.0

Time

(Minutes)

Rolling Demand

Meter Response

(EDEM = ROL)

Rolling Demand Current (per unit)

DMTC = 15 minutes

0 5 10 15

.33

.67

1.0

Time

(Minutes)

Step Current

Input

Instantaneous Current (per unit)

0 5 10 15

0.5

1.0

Time

(Minutes)
