Schweitzer Engineering Laboratories SEL-751 - Figure 4.69 Angle Difference between VP and VS Compensated by Breaker Close Time (Fp < Fs and VP Shown as Reference in this Example)

4.112
SEL-751 Relay Instruction Manual Date Code 20170927
Protection and Logic Functions
Group Settings (SET Command)
Intermediate calculations:
(fP – fS) = (59.95 Hz – 60.05 Hz) = –0.10 Hz = –0.10 slip cycles/second
TCLOSD • (1 / 1000) = 0.1 second
Resulting in:
Angle Difference
= |(VP – VS) + [(fP – fS) • TCLOSD • (1 / 1000) • (360°/slip cycle)]|
= |(VP – VS) + [–0.10 • 0.1 • 360°]|
= |(VP – VS) – 3.6°|

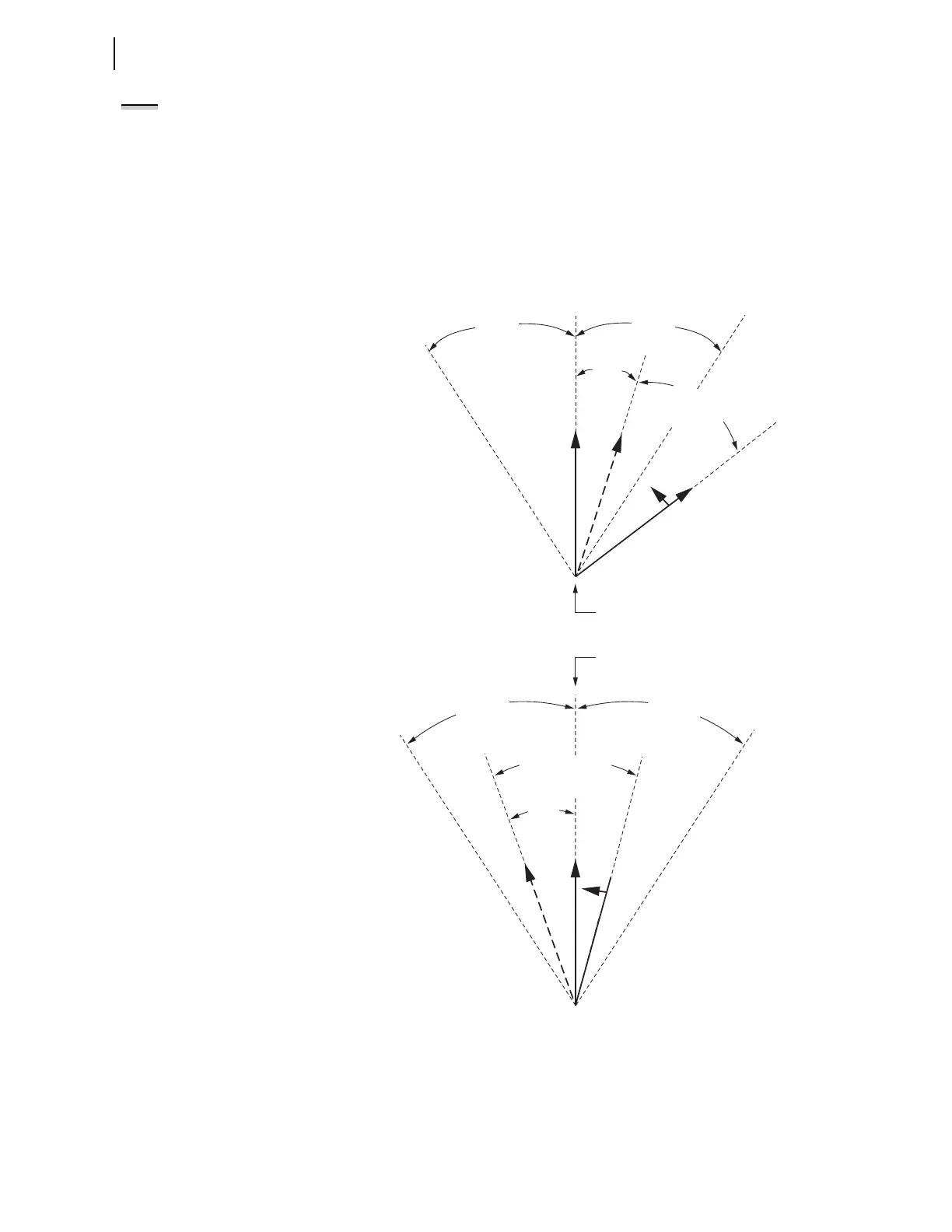

Figure 4.69 Angle Difference Between VP and VS Compensated by Breaker
Close Time (fP < fS and VP Shown as Reference in This Example)
During the breaker close time (TCLOSD), the voltage angle difference
between voltages VP and VS changes by 3.6 degrees. This angle compensa-
tion is applied to voltage VS, resulting in derived voltage VS*, as shown in
Figure 4.69.
NOTE: The angle compensation in
Figure 4.69 appears much greater
than 3.6 degrees. Figure 4.69 is for
general illustrative purposes only.
