Schweitzer Engineering Laboratories SEL-751 - Figure 2.26 SEL-751 Provides Overcurrent Protection for a Delta-Wye Transformer Bank (Wye-Connected Pts)

2.35
Date Code 20170927 Instruction Manual SEL-751 Relay
Installation
AC/DC Control Connection Diagrams
Voltages are necessary for voltage elements, synchronism-check elements, voltage-polarized directional elements, fault
location, and metering (e.g., voltage, KW, KVAR). INxxx and OUTxxx indicate user-configurable optional digital inputs and
outputs.
Although automatic reclosing is probably not necessary in this example, output contact OUT102 can close the circuit
breaker via initiation from various means (serial port communications, optoisolated input assertion, etc.), with desired
supervision (e.g., hot bus check).
For sensitive earth fault (SEF) applications, the SEL-751 should be ordered with channel IN rated at 0.2 A nominal. See
AC Current Input specifications on page 1.13. See neutral ground overcurrent element pickup specifications in Table 4.9
and Table 4.15.

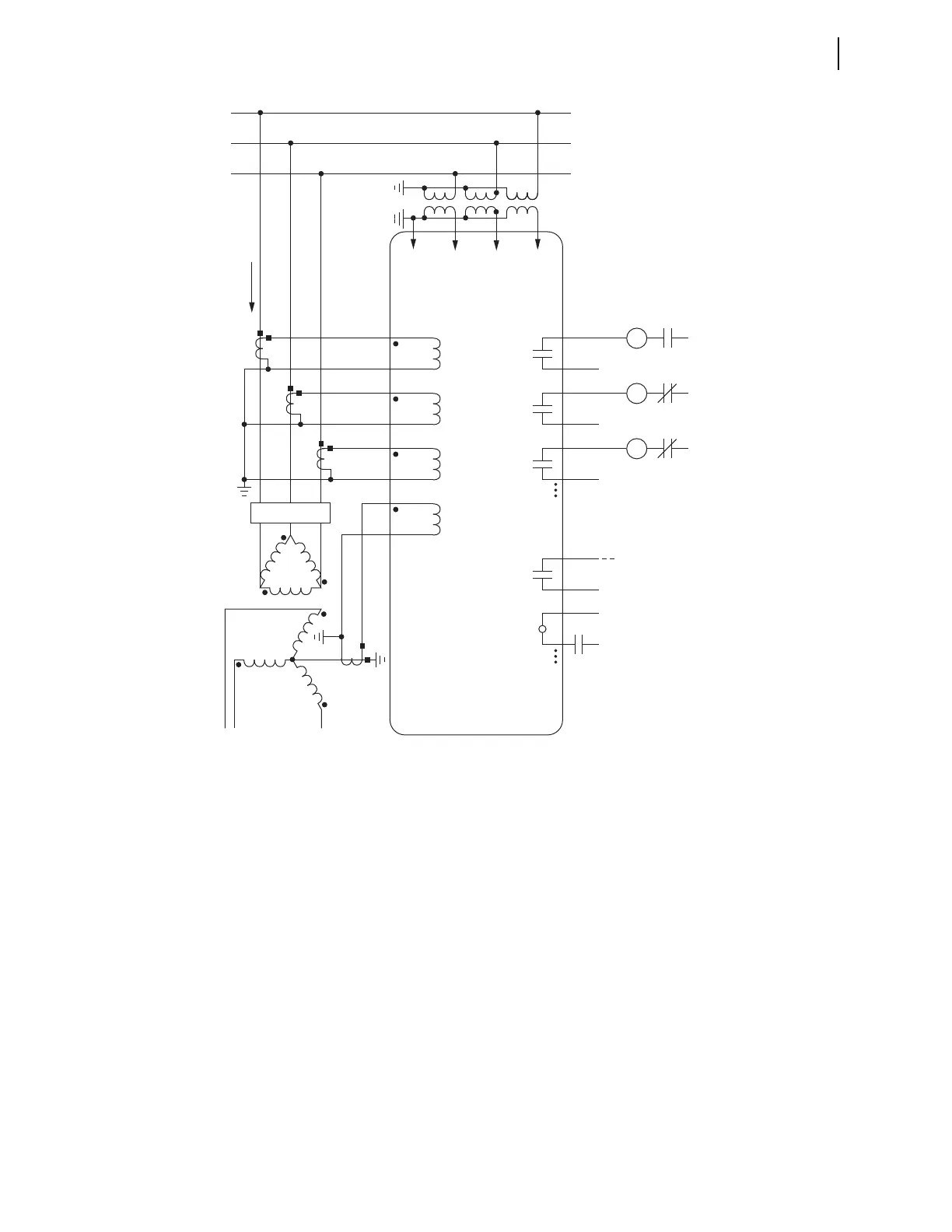

Figure 2.26 SEL-751 Provides Overcurrent Protection for a Delta-Wye Transformer Bank (Wye-Connected PTs)
