2.21

Date Code 20170927 Instruction Manual SEL-751 Relay

Installation

Relay Connections

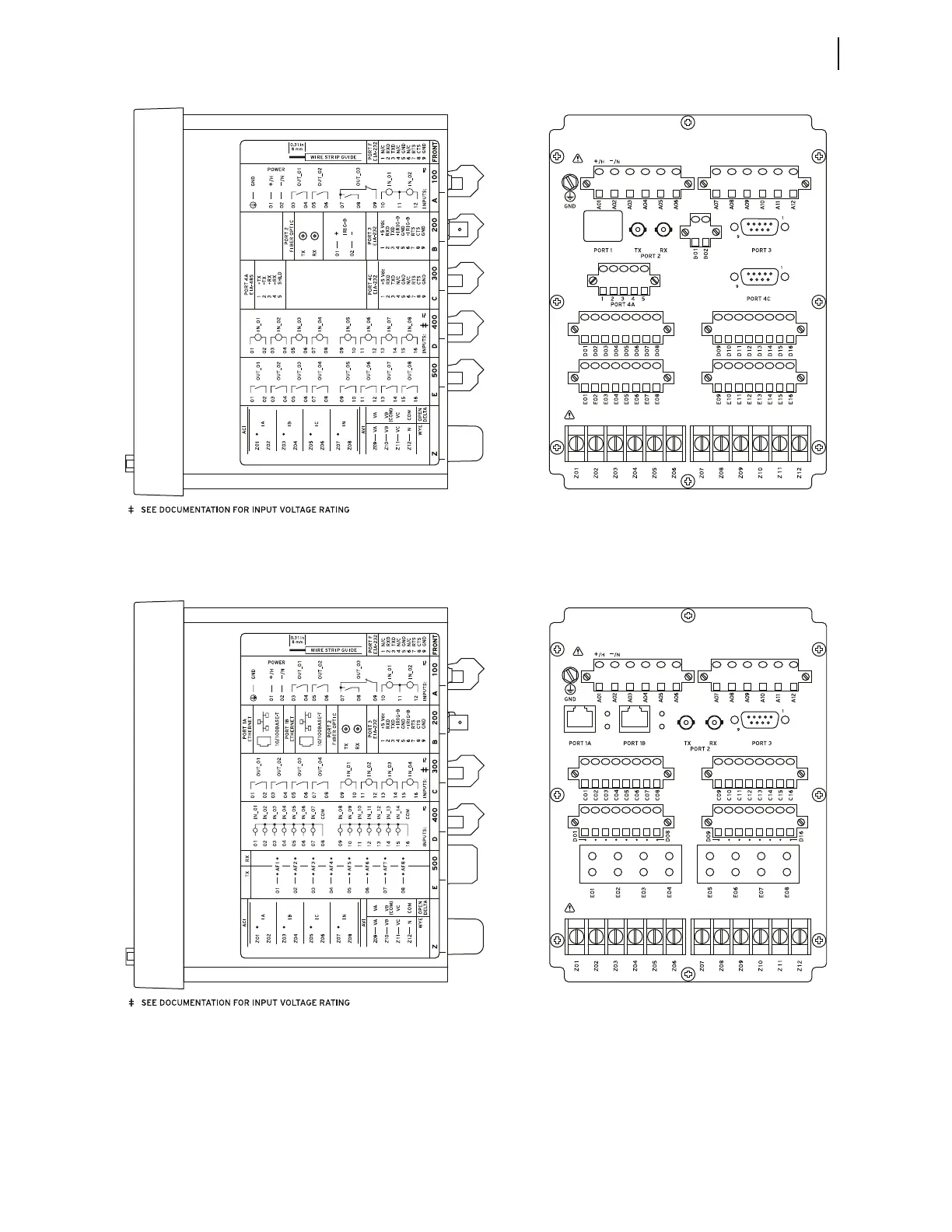

Figure 2.11 No Ethernet, EIA-232 Serial Communications, EIA-232/EIA-485 Communications

Card, 8 DI Card, and 8 DO Card (Form A) (Relay MOT 751401AA03A2A850000)

Figure 2.12 Dual Copper Ethernet, 4 DI/4 DO Card, 14 DI Card, 8 AFDI With Arc-Flash Detector

Inputs, 4 ACI/3 AVI Card With 5 A Phase, 200 mA Neutral, and Three-Phase AC Voltage Inputs (300 Vac)

(Relay MOT 7515S1A1A4A77870671)

(A) Side-Panel Input and Output Designations (B) Rear-Panel Layout
