Schweitzer Engineering Laboratories SEL-751 - Figure 4.34 Direction Forward;Reverse Logic for Residual Ground Overcurrent Elements

To Next Page

To Previous Page

4.46

SEL-751 Relay Instruction Manual Date Code 20170927

Protection and Logic Functions

Group Settings (SET Command)

q From Figure 4.32; w Figure 4.9; e Figure 4.2.

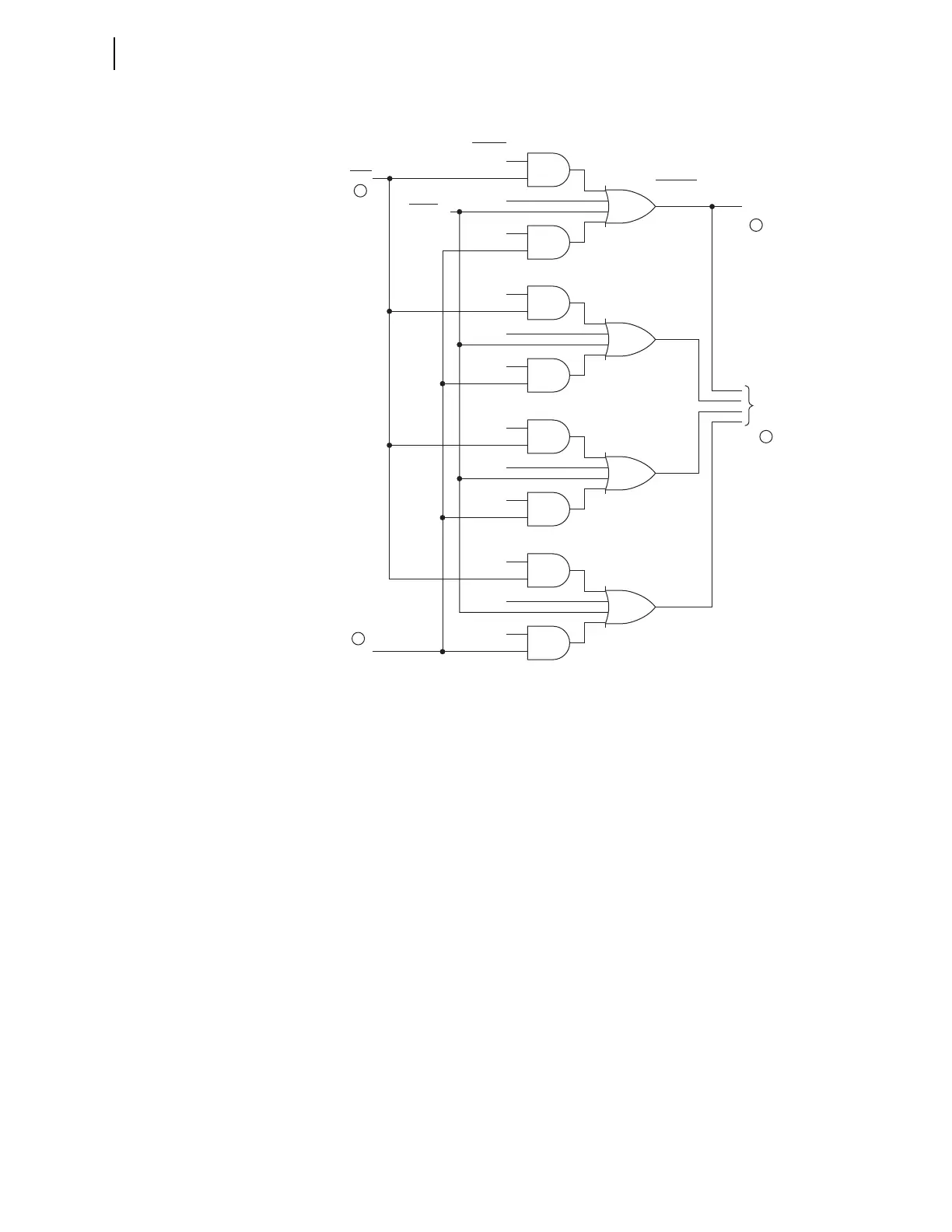

Figure 4.34 Direction Forward/Reverse Logic for Residual Ground

Overcurrent Elements

Level

Direction

Settings

DIRGF

DIR1 = F

DIR1 = N

Relay

Word

Bits

to Residual Ground

Time-0vercurrent

Elements

to Residual Ground

Instantaneous/

Definite-Time

Overcurrent

Elements

ORDER = OFF

ORDER = P

Setting

Forward

DIRGR

Reverse

DIR1 = R

Reverse

DIR2 = F

DIR2 = N

Forward

DIR2 = R

Reverse

DIR3 = F

DIR3 = N

Forward

DIR3 = R

Reverse

DIR4 = F

DIR4 = N

Forward

DIR4 = R

Reverse

Directional

Control

Level 1

G1DIR

Level 2

G2DIR

Level 3

G3DIR

Level 4

G4DIR
