Schweitzer Engineering Laboratories SEL-751 - Figure 2.31 SEL-751 Provides Overcurrent Protection for an Ungrounded System (Wye-Connected Pts)

To Next Page

To Previous Page

2.40

SEL-751 Relay Instruction Manual Date Code 20170927

Installation

AC/DC Control Connection Diagrams

A core-balance current transformer is often referred to as a zero-sequence, ground fault, or window current transformer.

Directional control for an ungrounded system is selected with setting ORDER := U (see Table 4.19–Table 4.21).

Nondirectional sensitive earth fault (SEF) protection is also available.

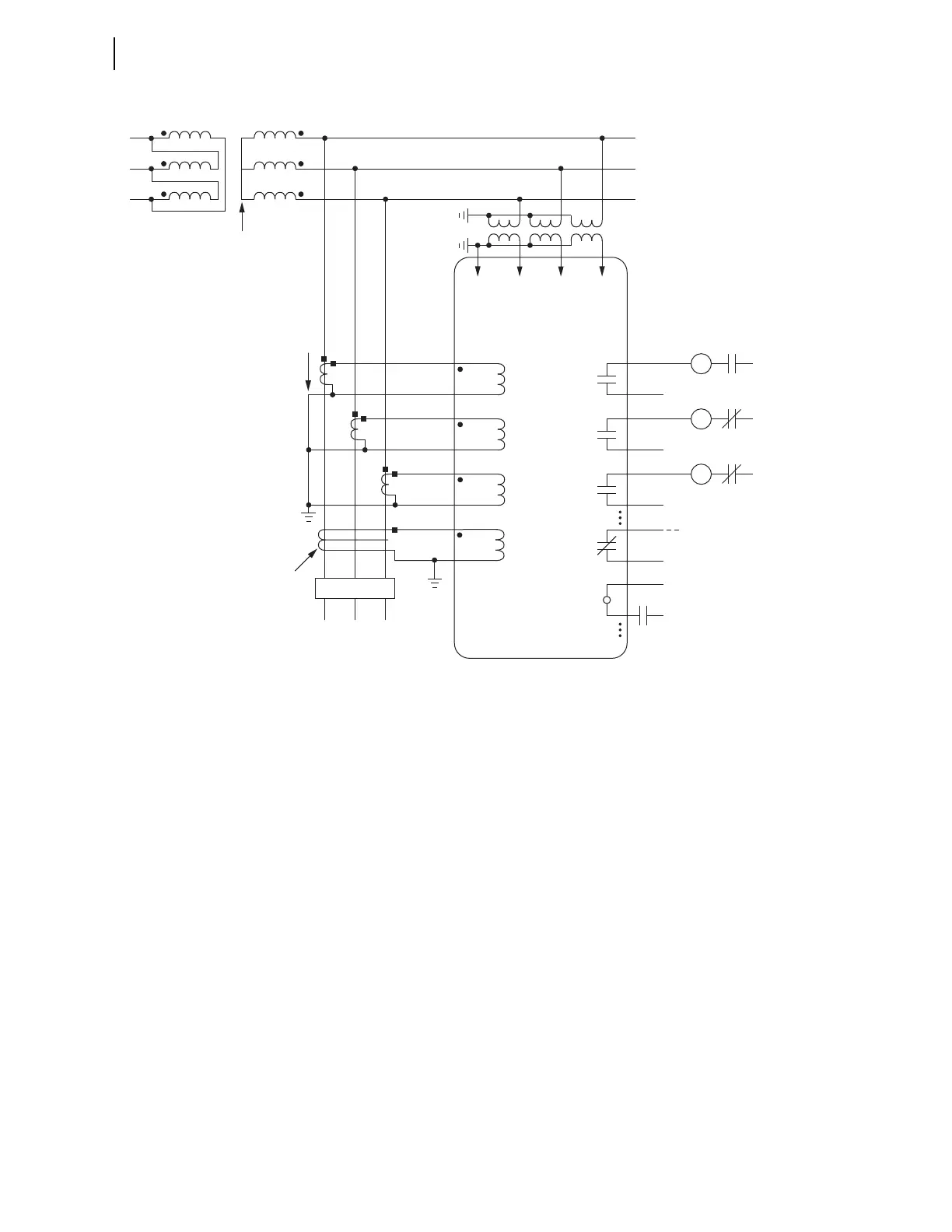

Figure 2.31 SEL-751 Provides Overcurrent Protection for an Ungrounded System (Wye-Connected PTs)

Trip

Coil

52A

(+)

(—)

Trip

Circuit

SEL-751 RELAY

OUT103

Forward Tripping Direction

Core-Balance CT

Coil

52B

(+)

(—)

Circuit

IB OUT102

Lock

Out

86B

(+)

(—)

Breaker

Failure

Trip

Circuit

IC OUTxxx

OUT101

FEEDER

ABc

(+)

ALARM

(+)

(—)

Breaker Status

INxxx

Ungrounded

TRANSFORMER BANK

to Annunciator, RTU,

or SEL Communications Processor

VCNVBVA
