Schweitzer Engineering Laboratories SEL-751 - Figure 2.9 Single Copper Ethernet, EIA-485 Communication, 8 DO (Form A) Card; Figure 2.10 Single Copper Ethernet with EIA-232 Communication, 10 RTD Card, 4 DI;4 DO Card and 2 AVI;4 AFDI Voltage Option Card with Arc-Flash Detector Inputs (Relay MOT 751501 A1 A9 X70850230)

To Next Page

To Previous Page

2.20

SEL-751 Relay Instruction Manual Date Code 20170927

Installation

Relay Connections

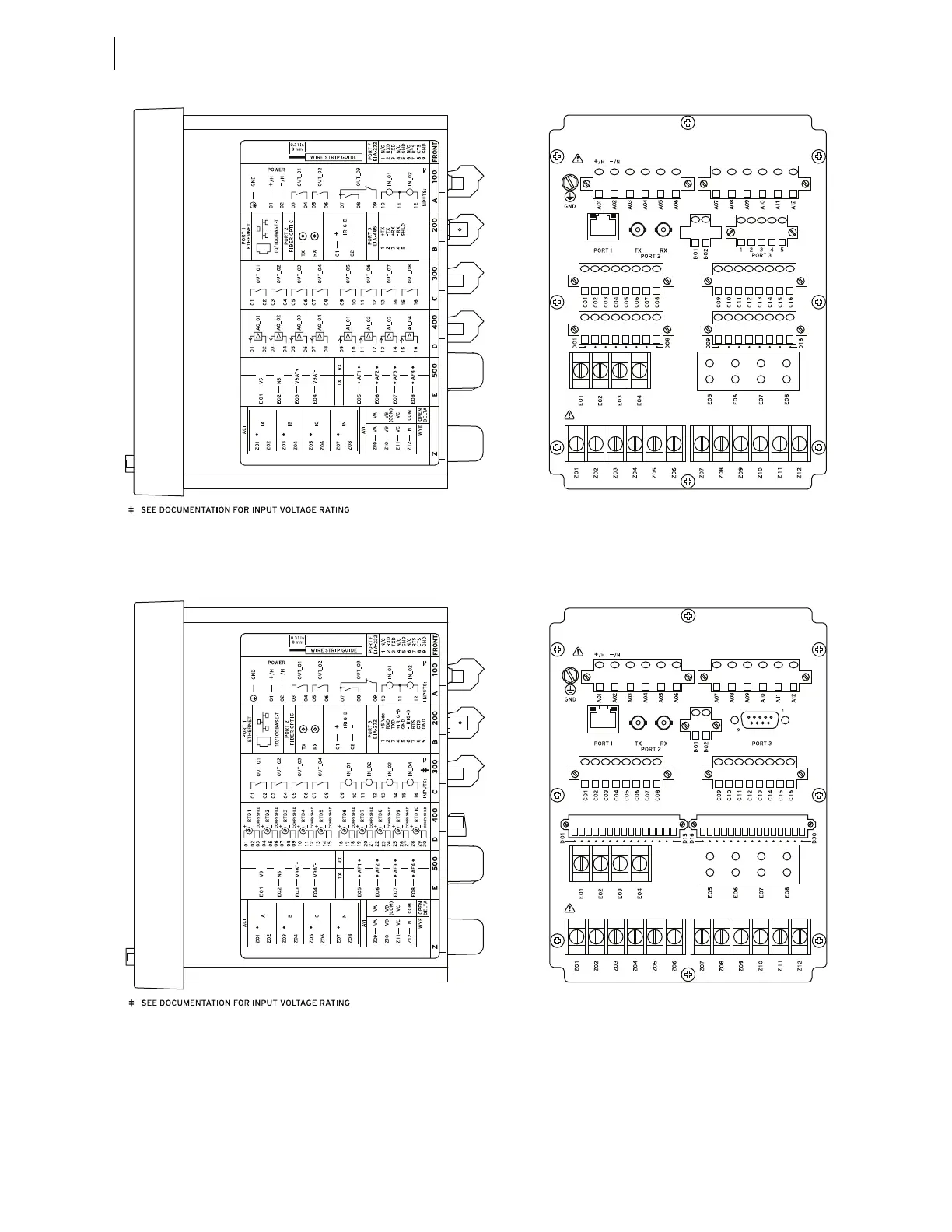

Figure 2.9 Single Copper Ethernet, EIA-485 Communication, 8 DO (Form A) Card, 4 AI/4 AO Card, and

2 AVI/4 AFDI Voltage Option With Arc-Flash Detector Inputs (Relay MOT 751201A2A6X70810320)

Figure 2.10 Single Copper Ethernet With EIA-232 Communication, 10 RTD Card, 4 DI/4 DO Card and

2 AVI/4 AFDI Voltage Option Card With Arc-Flash Detector Inputs (Relay MOT 751501A1A9X70850230)

(A) Side-Panel Input and Output Designations (B) Rear-Panel Layout
