3.8

SEL-751 Relay Instruction Manual Date Code 20170927

PC Software

Settings

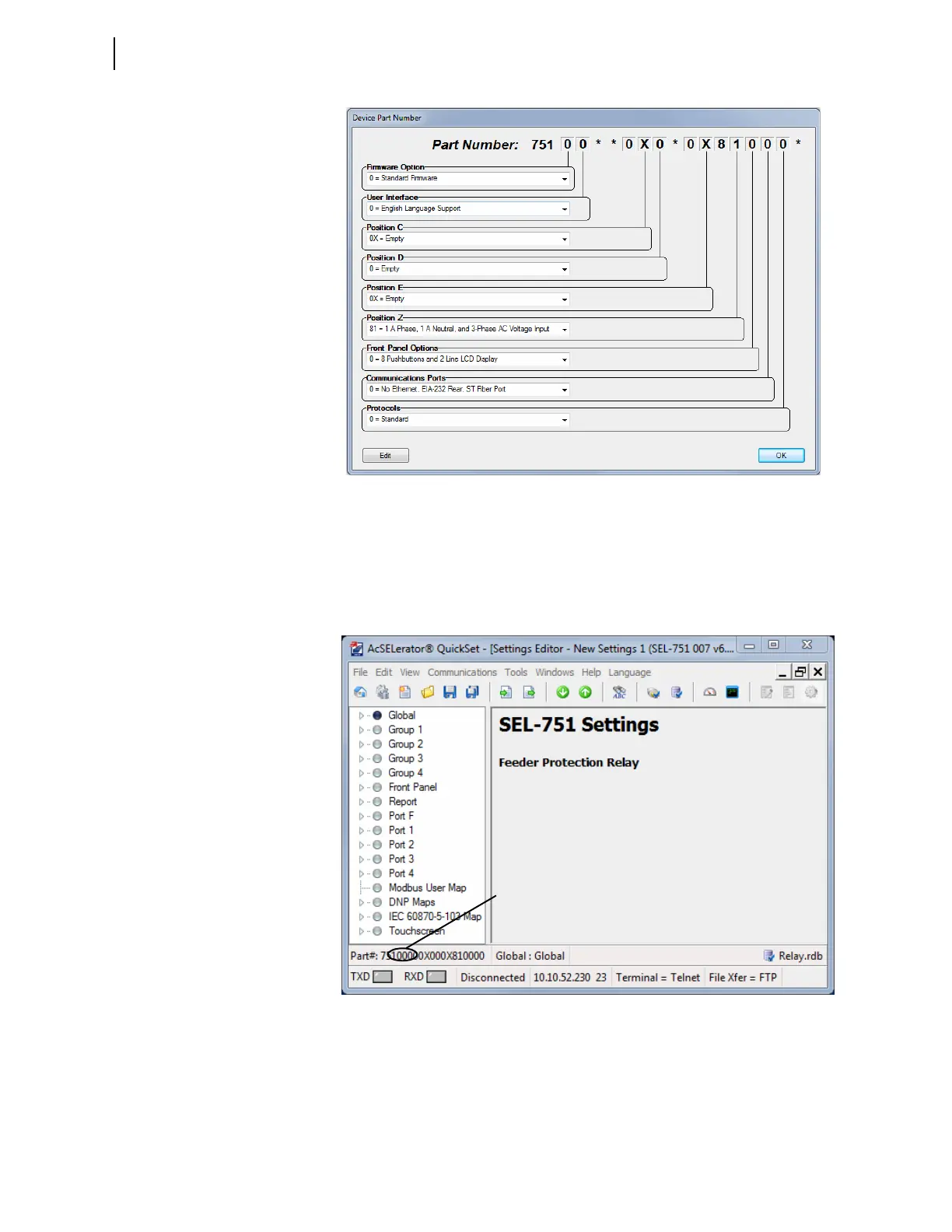

Figure 3.7 Update Part Number

Figure 3.8 shows the Settings Editor screen. View the bottom of the Settings

Editor window to check the Settings Driver number. Compare the QuickSet

Settings Driver number and the first portion of the Z-number in the FID string

(select Tools > HMI > HMI > Status). These numbers must match. QuickSet

uses this first portion of the Z-number to determine the correct Settings

Editor to display.

Figure 3.8 New Setting Screen

File > Open

The Open menu item opens an existing device from the active database folder.

QuickSet prompts for a device to load into the Settings Editor.

Z-Number
