2.27

Date Code 20170927 Instruction Manual SEL-751 Relay

Installation

AC/DC Control Connection Diagrams

The SEL-751 provides fail-safe and nonfail-safe trip modes (setting

selectable) for all output contacts. The following occurs in fail-safe mode:

➤ The relay coil is energized continuously if the SEL-751 is

powered and operational.

➤ When the SEL-751 generates a trip signal, the relay coil is de-

energized.

➤ The relay coil is also de-energized if the SEL-751 power supply

voltage is removed or if the SEL-751 fails (self-test status is

FAIL).

Figure 2.19 shows fail-safe and nonfail-safe wiring methods to control

breakers.

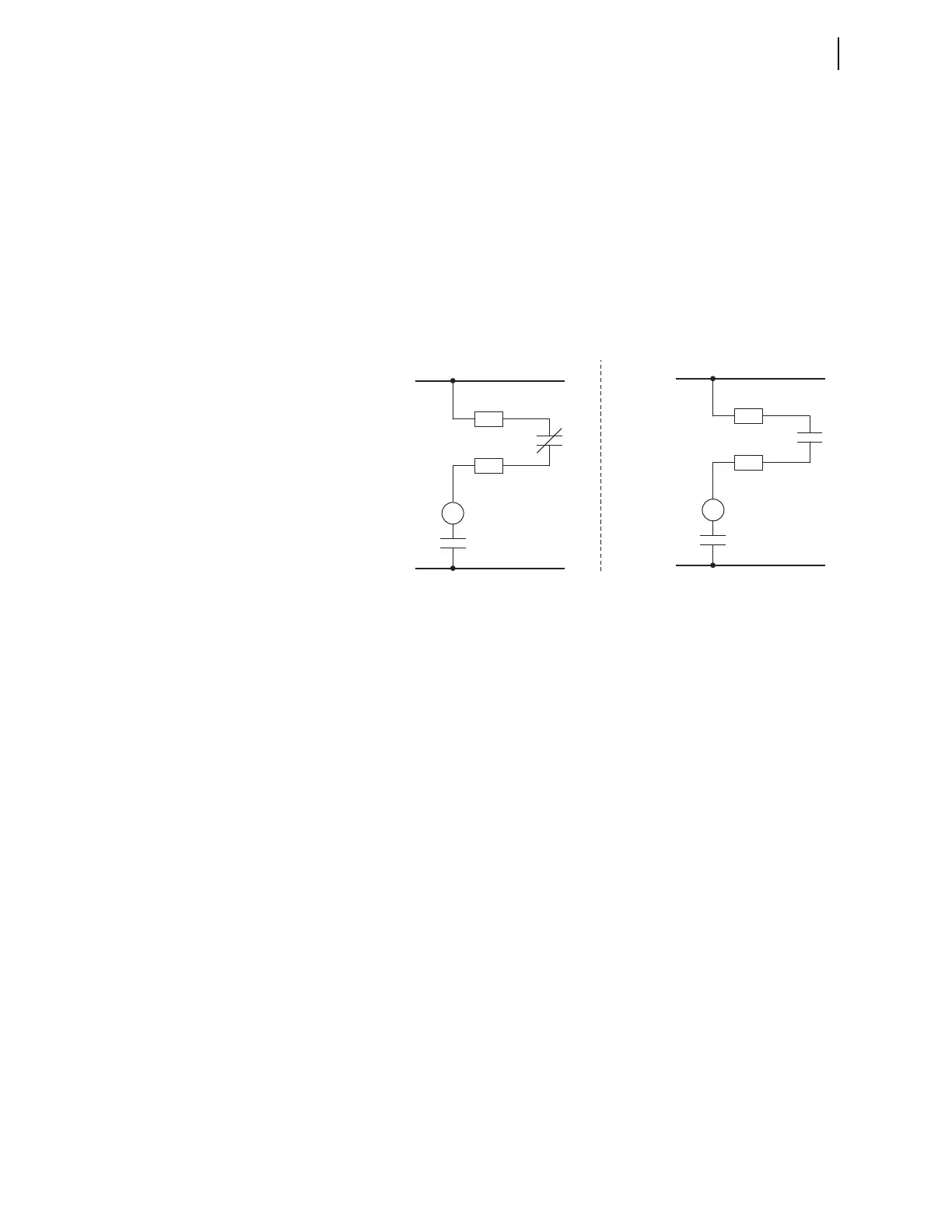

Figure 2.19 OUT103 Contact Fail-Safe and Nonfail-Safe Options

Nonfail-safe

OUT103FS = N

52A

Breaker Trip Coil

A08

A07

52A

Fail-Safe

(Electrically Held)

OUT103FS= Y

Circuit Breaker

Breaker Trip Coil

A09
