Date Code 20170927 Instruction Manual SEL-751 Relay

Front-Panel Operations

Touchscreen Display Front Panel

Control

Tapping this folder navigates you to the Control screen, as shown in

Figure 8.45. Use the Control folder applications Breaker Control, Output

Pulsing, and Local Bits to perform breaker control operations, pulse output

contacts, or control the local bits.

Breaker Control and Output Pulsing applications require that the breaker

jumper be installed on the main board. Refer to Password, Breaker Control,

and SEL

BOOT Jumper Selection on page 2.18 for information on the breaker

jumper.

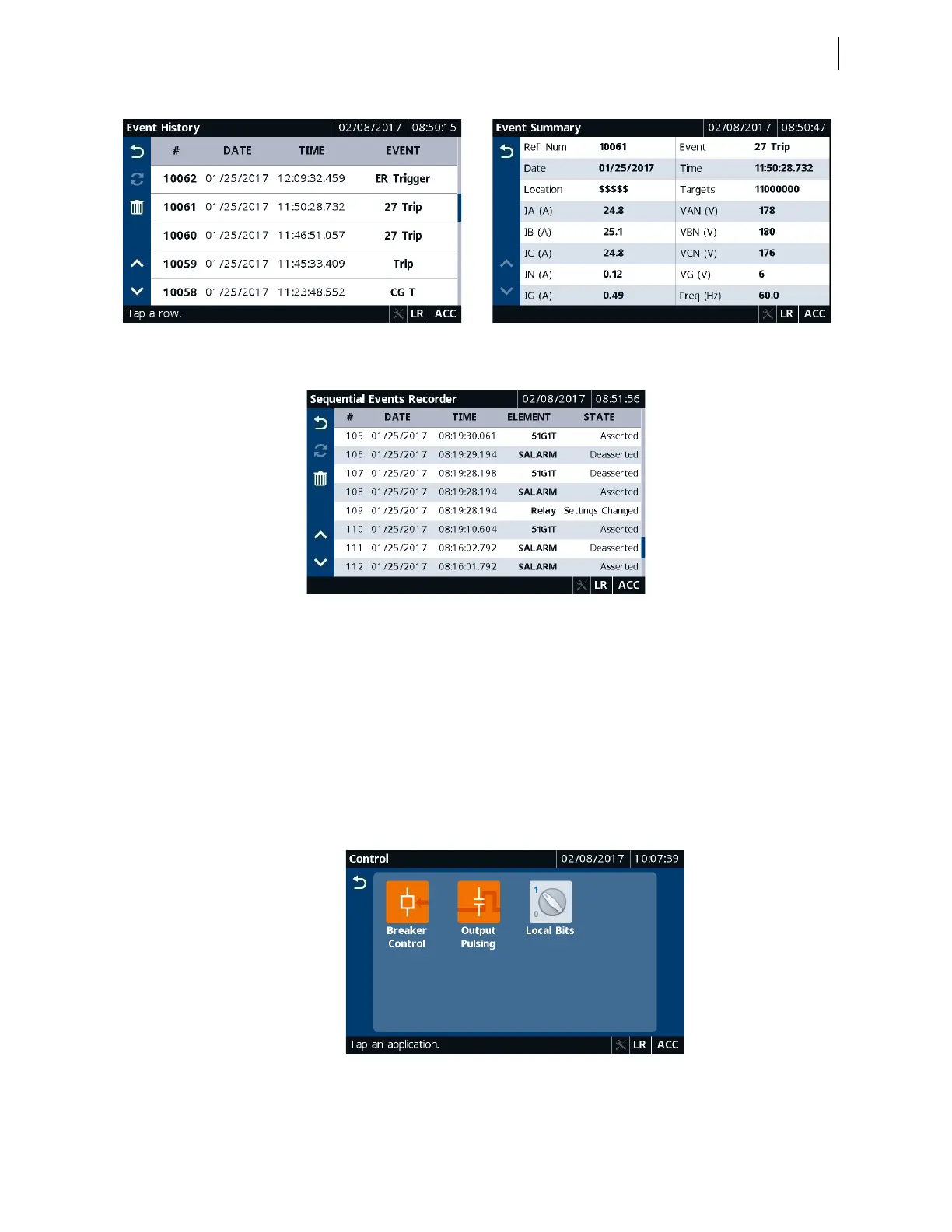

Figure 8.45 Control Applications
