6/02
2-121
DC1632/2240
8-151
Status Indicator RAPs
Prelaunch Training/Review
8-151 Tray 3 Take Away Sensor On
The Take Away Sensor does not detect paper fed from Tray 3.
Initial Actions
ï Check condition and specification of paper in Tray 3.
ï Check the paper path and sensor area for obstructions.
ï Check for wear and clean the Tray2 and Tray3 Feeder Roll, Take Away Roll and the
Nudger Roll.
Procedure
Enter dC330 [008-102] and press Start. Block and unblock the Take Away Sensor (PL 16.6).
The display changes state.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Enter dC330 [008-029. The Take Away Motor 1 energizes.
YN
Go to OF 99-6 Motor Open RAP.
Replace the Tray Module PWB (PL 16.15).

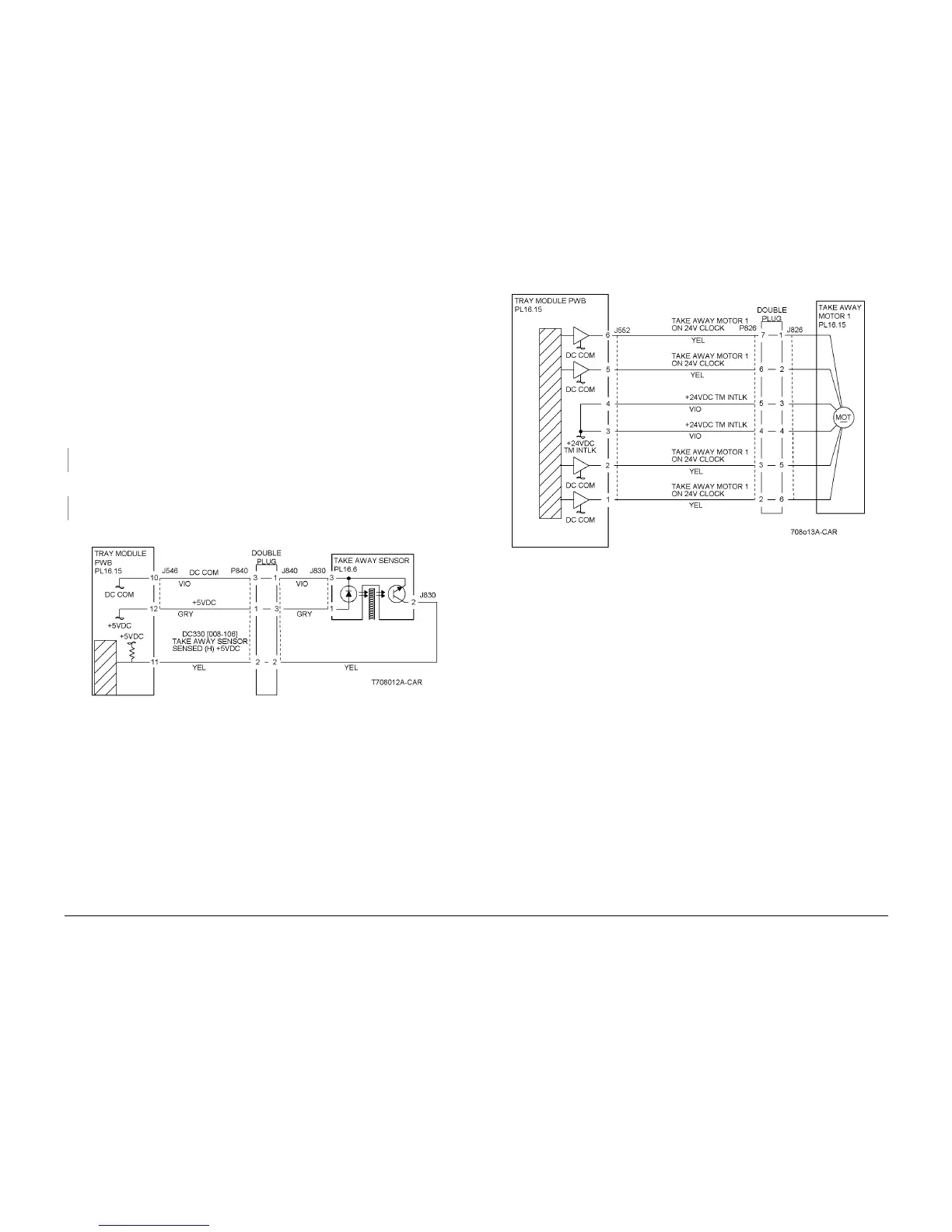

Figure 1 The Take Away Sensor
Figure 2 The Take Away Motor 1
To Next Page
