Status Indicator RAPs
8-152 Tray 4 Take Away Sensor On
The Take Away Sensor does not detect paper fed from Tray 4.
Initial Actions
ï Check condition and specification of paper in Tray 4.
ï Check the paper path and sensor area for obstructions.
ï Check for wear and clean the Tray 4 Feeder Roll, Take Away Roll and the Nudger Roll.
Procedure
Enter dC330 [008-102] and press Start. Block and unblock the Block and unblock the Take
Away Sensor (PL 16.6). The display changes state.
YN
Go to OF 99-2 Transmissive Sensor RAP.
Enter dC330 [008-029] and press Start. The Take Away Motor 1 PL 16.15 energizes.
YN
Go to OF 99-6 Motor Open RAP.
Enter dC330 [008-047] and press Start. The Take Away Motor 2 (PL 16.15) energizes.
YN
Go to OF 99-6 Motor Open RAP.
Replace the Tray Module PWB (PL 16.15).

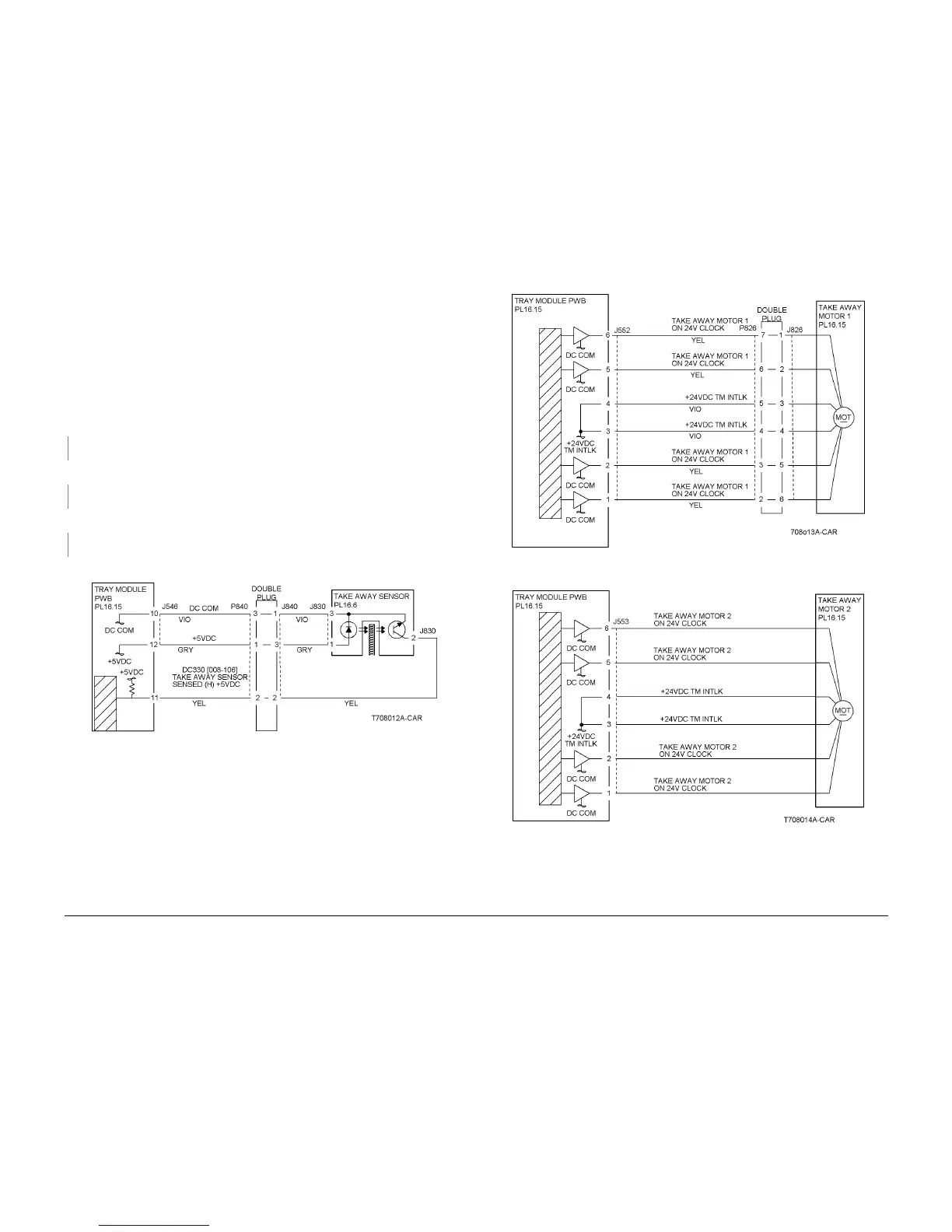

Figure 1 The Take Away Sensor
Figure 2 The Take Away Motor 1
Figure 3 The Take Away Motor 2
