Status Indicator RAPs
Prelaunch Training/Review
12-102 H Transport Entrance Sensor Off
Paper did not deactuate the H Transport Entrance Sensor.
Procedure
Open the H Transport. Check H Transport Belts, H Transport Belt Drive Rolls, and Guides on
H Transport Cover for installation or damage problems. The components are good.
YN
Repair as required (PL 17.3, PL 17.4).
Rerun the job. The problem continues.
YN
Return to Service Call Procedures.
Replace the H Transport Entrance Sensor for intermittent operation (PL 17.4).
NOTE: If the sensor fails H, 12-901 is declared after power is switched on.

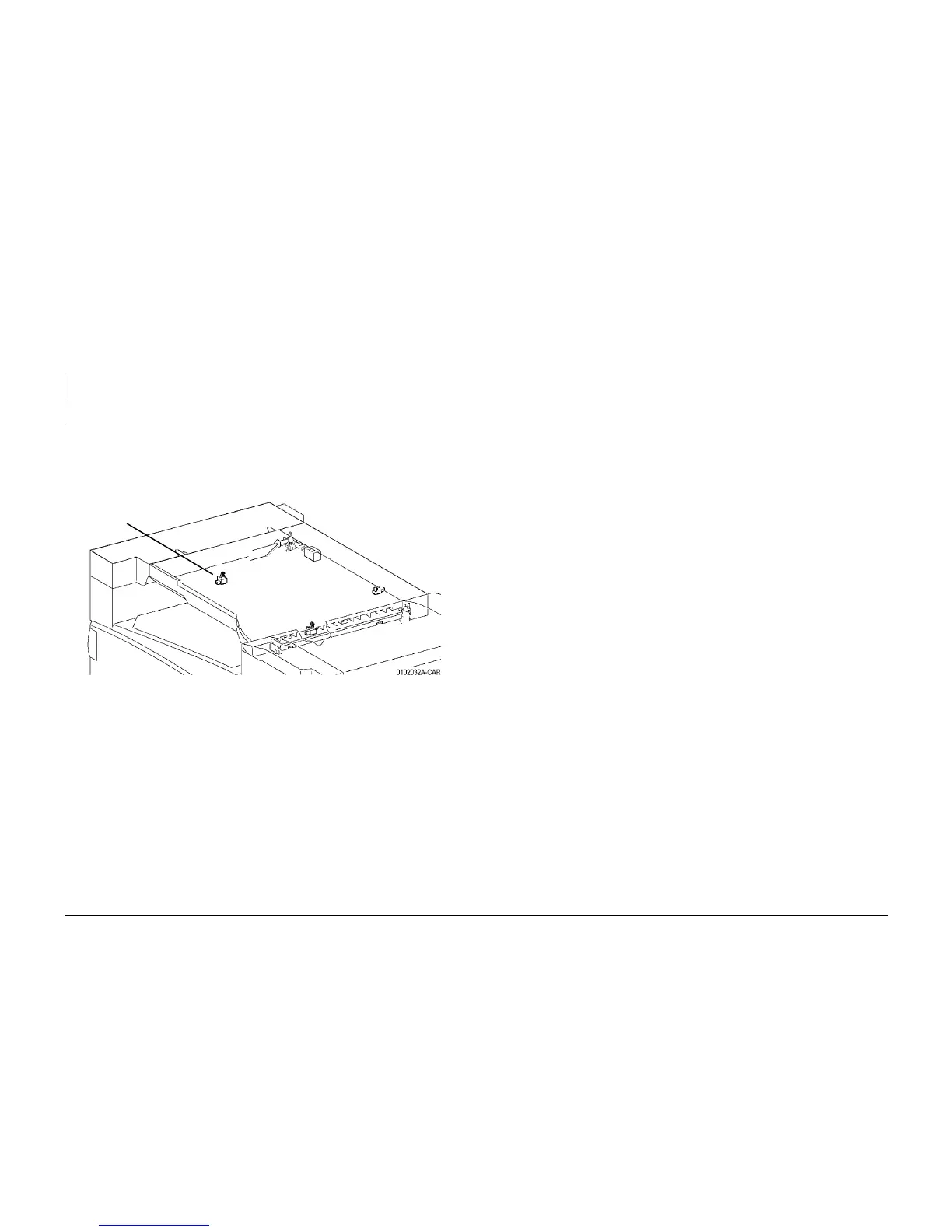

Figure 1 Component Location
Entrance
Sensor
