Prelaunch Training/Review
Status Indicator RAPs
12-104 H Transport Exit Sensor On
The H Transport Exit Sensor did not detect paper within the specific time after the H Transport
Entrance Sensor has detected the paper. (The specified time differs depending on the paper
size.)
Procedure
Enter dC330 [012-104] and press Start. Actuate and deactuate the H Transport Exit Sensor.
The display changes.
YN
Repair the sensor as required (PL 17.4) for mechanical problems. If the sensor is
mechanically good, check the circuit of the H Transport Exit Sensor (Figure 2).
Check H Transport Belts, H Transport Belt Drive Rolls, and Guides on H Transport Cover for
installation or damage problems. Repair as required (PL 17.3, PL 17.4).

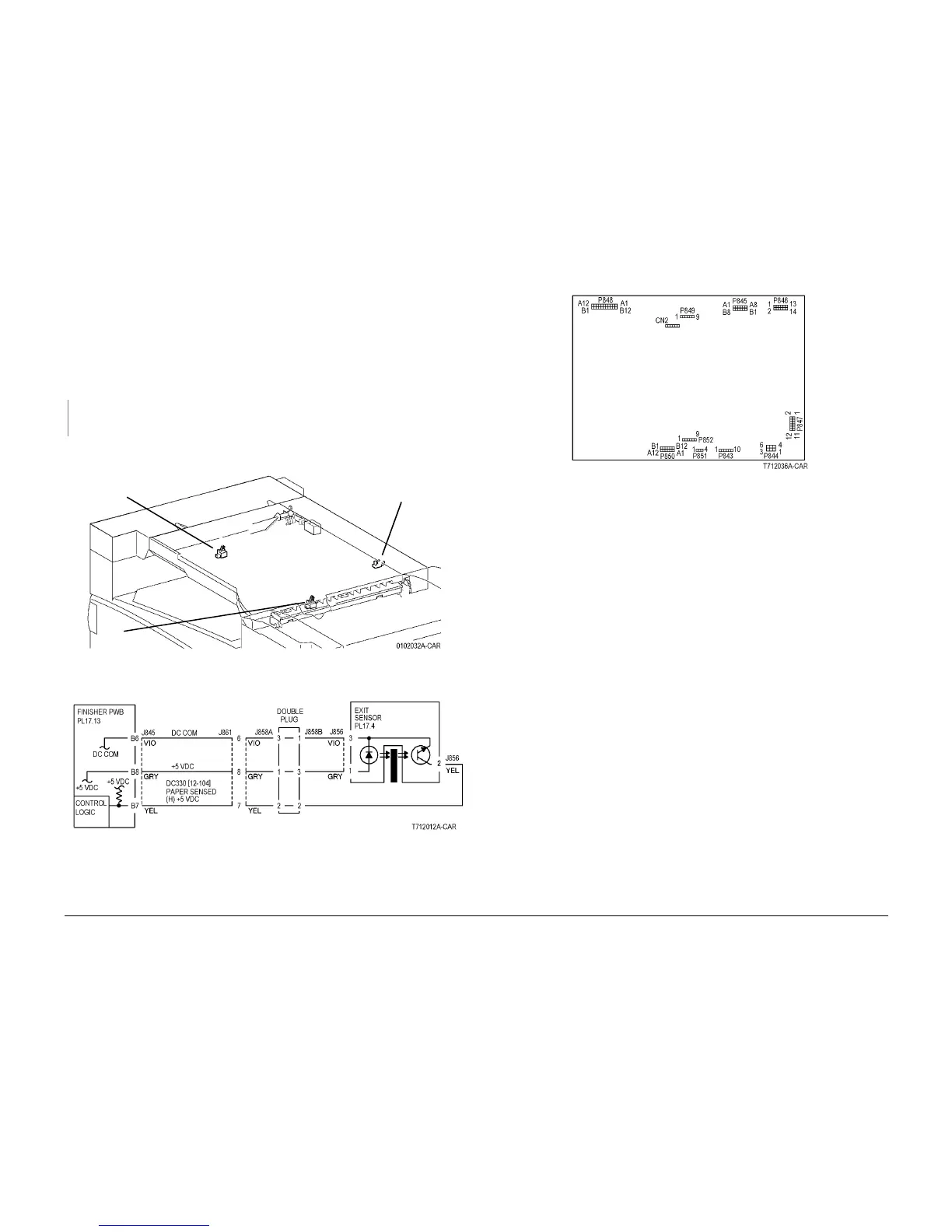

Figure 1 Component Location
Figure 2 H Transport Exit Sensor CD
Figure 3 Finisher PWB
Entrance
Sensor
Exit
Sensor
Interlock
Sensor
