Xerox DocuColor 1632

6/02
2-199
DC1632/2240
12-106
Status Indicator RAPs
Prelaunch Training/Review
12-106 H Transport Exit Sensor Off
Paper did not deactuate the H Transport Exit Sensor.
Procedure
Enter dC330 [012-217] and press Start. Actuate and deactuate the Decurler Cam Home Sen-
sor. The display changes.
YN
Check the circuit of the Decurler Cam Home Sensor (Figure 2).
Enter dC330 [012-070] and press Start. The Decurler Cam Clutch energizes.
YN
Check the circuit of the Decurler Cam Clutch (Figure 3).
Check the following:
ï Paper path failure for burr and foreign substance.
ï H Transport Belt Drive Roll for contamination, wear and a drive failure
ï Drive Transmission Gear from the Finisher Drive Motor for wear and breakage
ï H Transport and Finisher for a docking failure
ï Decurler Roll/pinch Roll for a drive failure
ï Compiler Entrance Roll for a drive failure

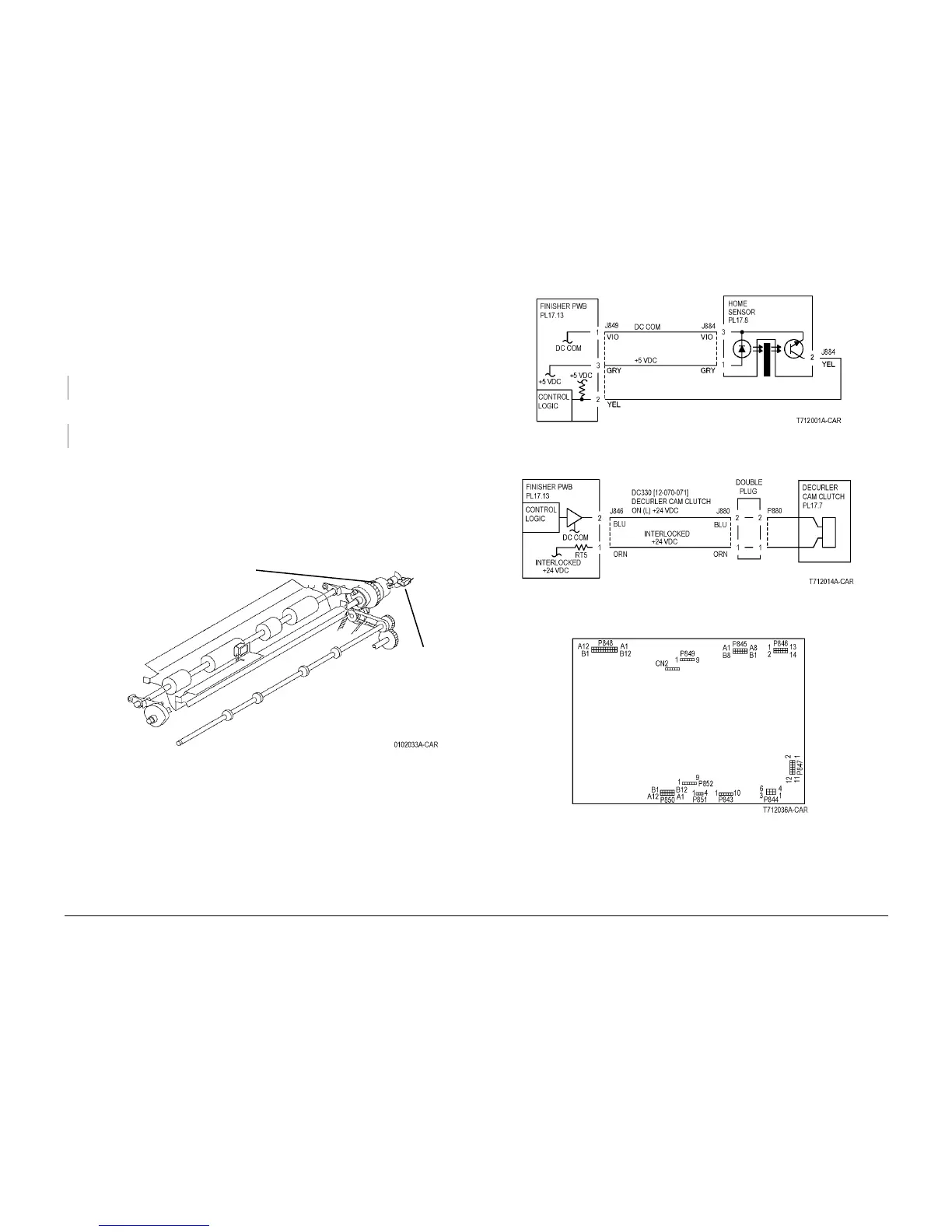

Figure 1 Component Location
Figure 2 Decurler Cam Home Sensor CD
Figure 3 Decurler Cam Clutch CD
Figure 4 Finisher PWB
Decurler
Clutch
Decurler
Cam
Home
Sensor
