Xerox DocuColor 1632

6/02
2-200
DC1632/2240
12-120
Prelaunch Training/Review
Status Indicator RAPs
12-120 Compiler Entrance Sensor On
The Compiler Entrance Sensor did not detect paper.
Procedure
Enter dC330 [012-101] and press Start. Actuate and deactuate the Complier Entrance Sen-
sor. The display changes.
YN
Check the circuit of the Complier Entrance Sensor (Figure 2).
Check the following:
ï Complier Entrance Sensor Actuator for breakage and bending
ï Paper path failure for burr and foreign substance.
ï Decurler Roll/pinch Roll for a drive failure
ï Drive Transmission Gear from the Finisher Drive Motor for wear and breakage

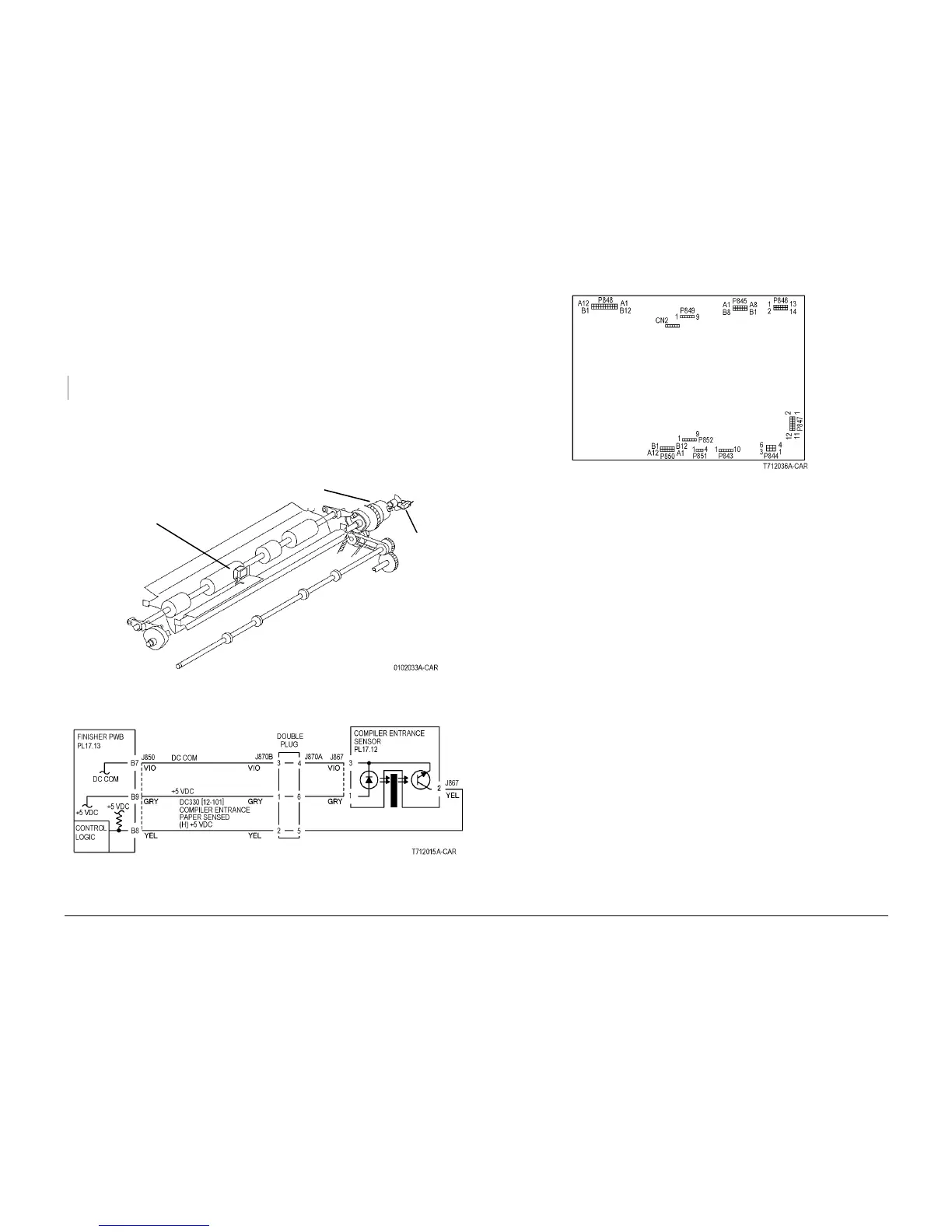

Figure 1 Component Location
Figure 2 Compiler Entrance Sensor CD
Figure 3 Finisher PWB
Compiler
Entrance
Sensor
Home
Sensor
D
ecur
l
er
Cl
utc
h
