Xerox DocuColor 1632

6/02
2-201
DC1632/2240
12-122
Status Indicator RAPs
Prelaunch Training/Review
12-122 Compiler Entrance Sensor Off
Paper does not deactuate the Compiler Entrance Sensor.
Procedure
Make a copy and observe paper in the Compiler Tray. The copy enters the Compiler Tray.
YN
There is a drives problem. Check the following:
ï The paper path failure for burr and foreign substance.
ï The Drive Transmission Gear from the Finisher Drive Motor for wear and breakage
ï The Decurler Roll/pinch Roll for a drive failure
ï The Compiler Entrance Roll for a drive failure
Repair the sensor as required (PL 17.4) for mechanical problems. If the sensor is mechani-
cally good, replace the Compiler Entrance Sensor.

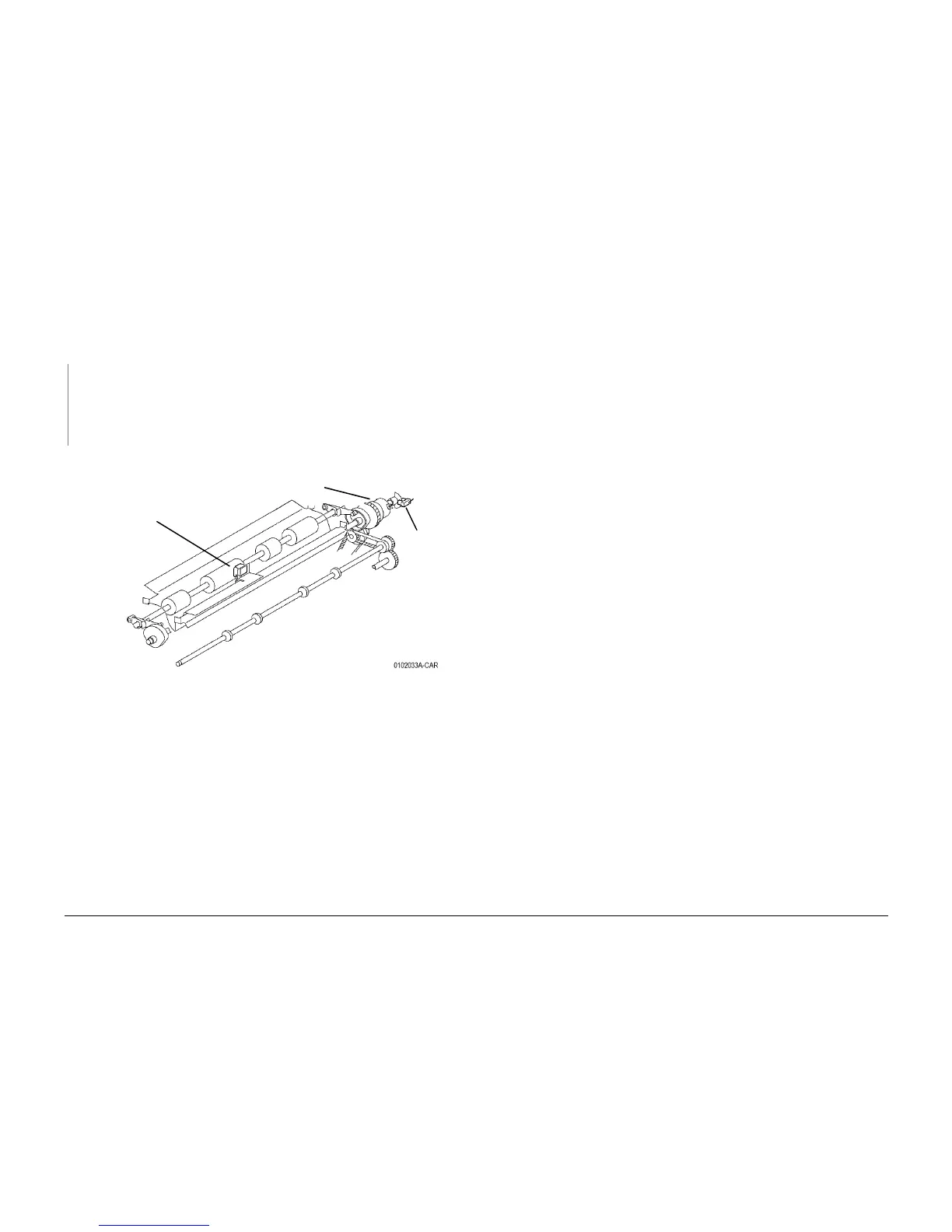

Figure 1 Component Location
Compiler
Entrance
Sensor
Home
Sensor
D
ecur
l
er
Cl
utc
h
