Status Indicator RAPs
Prelaunch Training/Review
12-904 Power On Compiler Paper Sensor
ï The Compiler Paper Sensor continues to detect paper when the paper was output auto-
matically due to the power on initialization.
ï The Compiler Paper Sensor detected paper with no history of paper output to the Com-
piler Tray when all the interlocks were closed.
Procedure
Check the following:
ï The Actuator for return failure
ï Enter dC330 [012-102] and press Start. Check only the signal wire of the sensor.
ï Check that the power voltage at the customer site does not drop.
ï Replace Finisher PWB (PL 17.13).

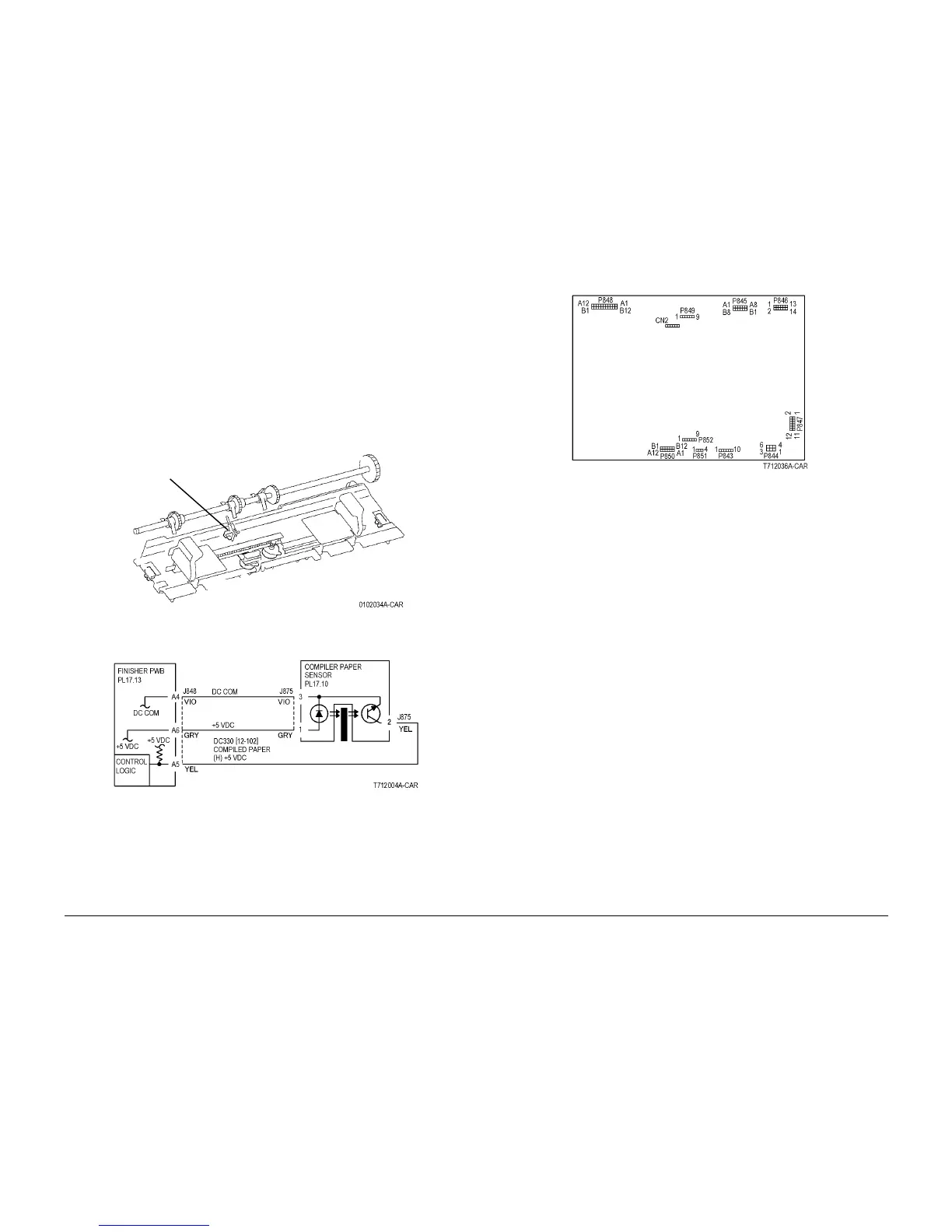

Figure 1 Component Location
Figure 2 Compiler Paper Sensor CD
Figure 3 Finisher PWB
Compiler
Paper
Sensor
To Next Page
