Status Indicator RAPs
1-301 RAP
Left Lower Cover is open
Procedure
Enter dC330 [001-302] and press Start. Open Left Lower Cover. Actuate Left Lower Cover
Interlock Switch with screwdriver. Display changes state.
YN
Go to General Transmissive Sensor RAP and repair LH Lower Cover Interlock Switch (PL
2.3).
Check Actuator and Left Lower Cover installation.

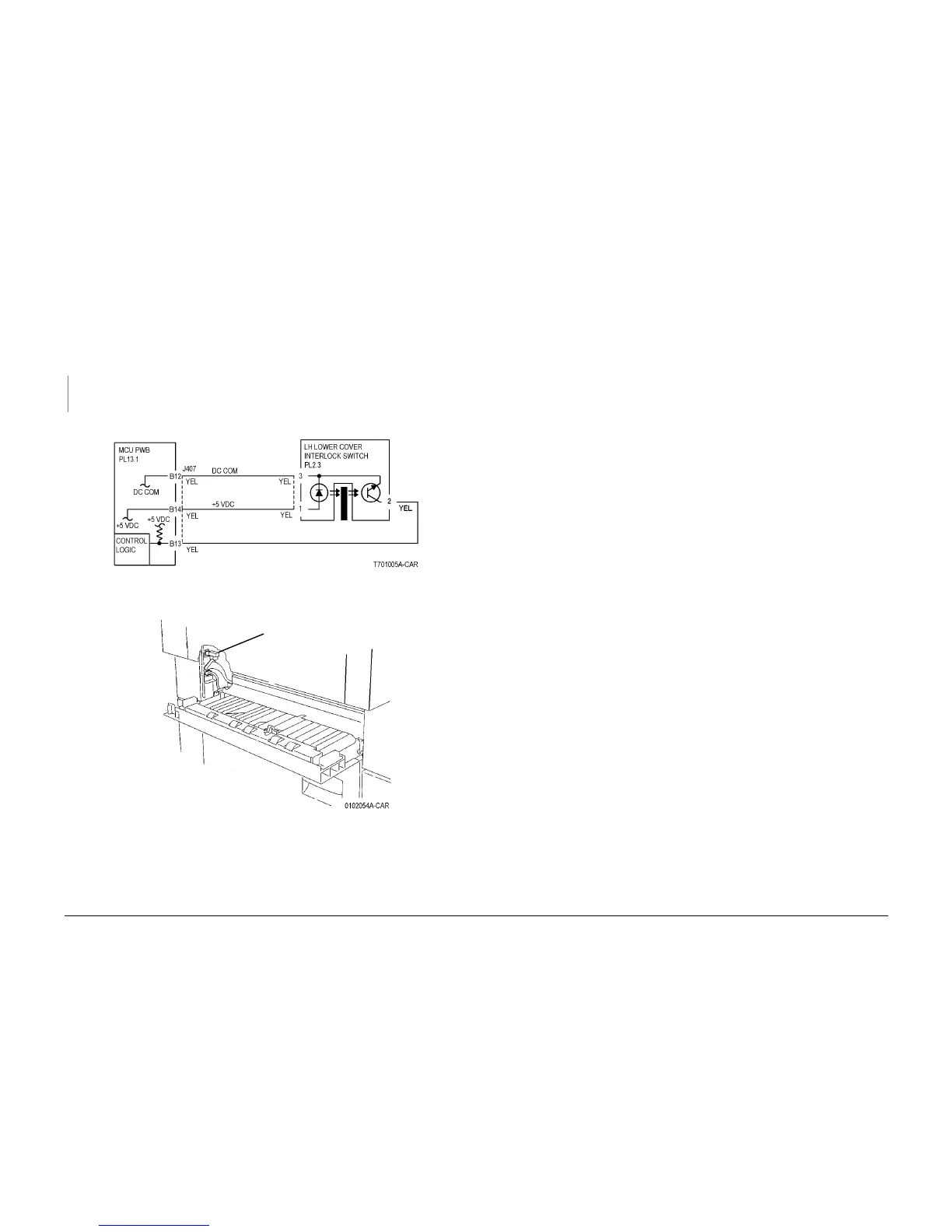

Figure 1 LH Lower Cover Interlock Switch CD
Figure 2 Component Location
LH Lower Cover
Interlock Switch
