6/02
4-45
DC1632/2240
REP 6.11
Repairs and Adjustments
Prelaunch Training/Review
7. Remove Carriage Cable (Figure 3).
a. Remove spring.
b. Separate spring and cable.
c. Pull out ball from hole.
d. Remove cable.

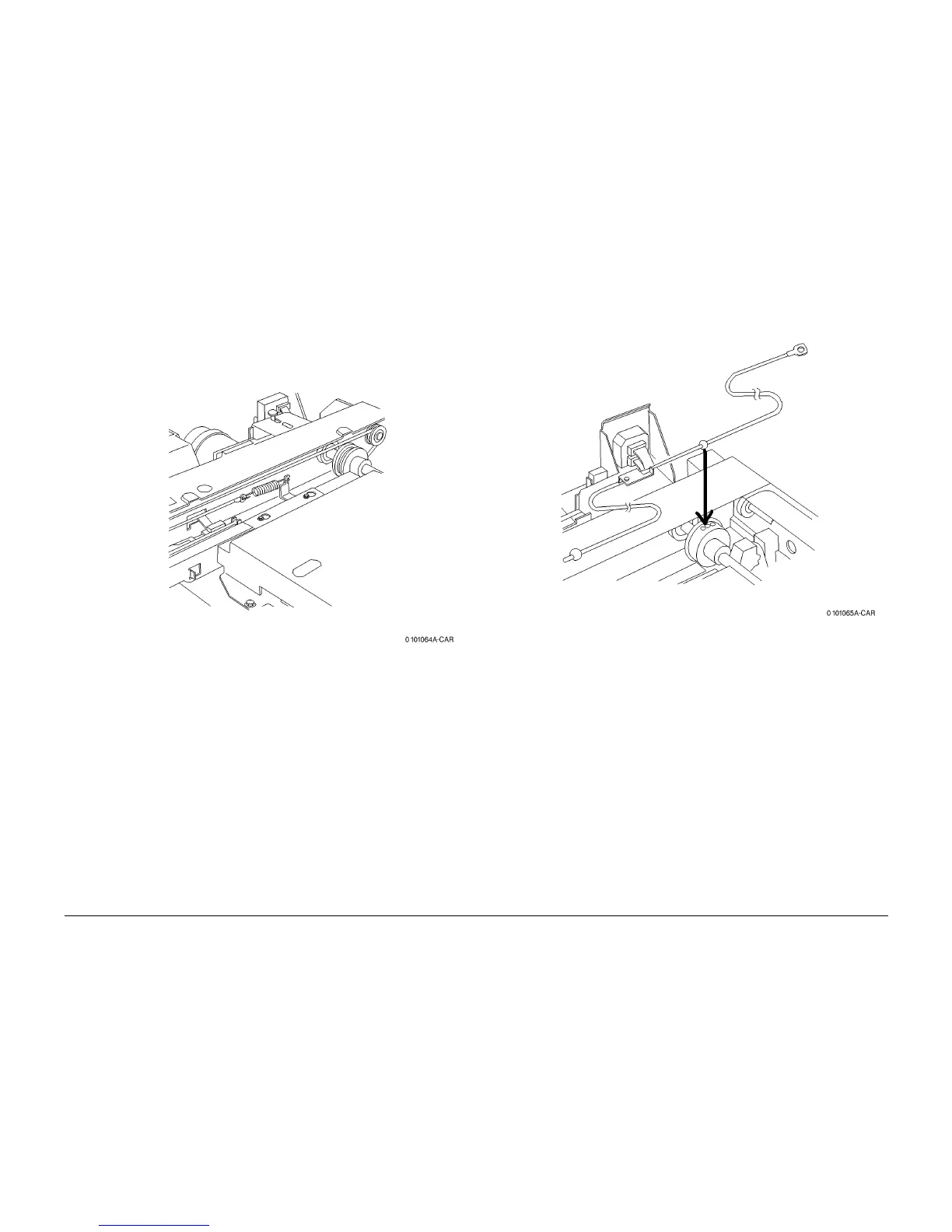

Figure 3 Removing Carriage Cable
Replacement
1. Wind Carriage Cable into pulley (Figure 4).
a. Insert Carriage Cable Ball into groove of pulley.
Figure 4 Winding Carriage Cable
