Xerox DocuColor 1632 Service Manual

6/02
4-46
DC1632/2240
REP 6.11
Prelaunch Training/Review
Repairs and Adjustments

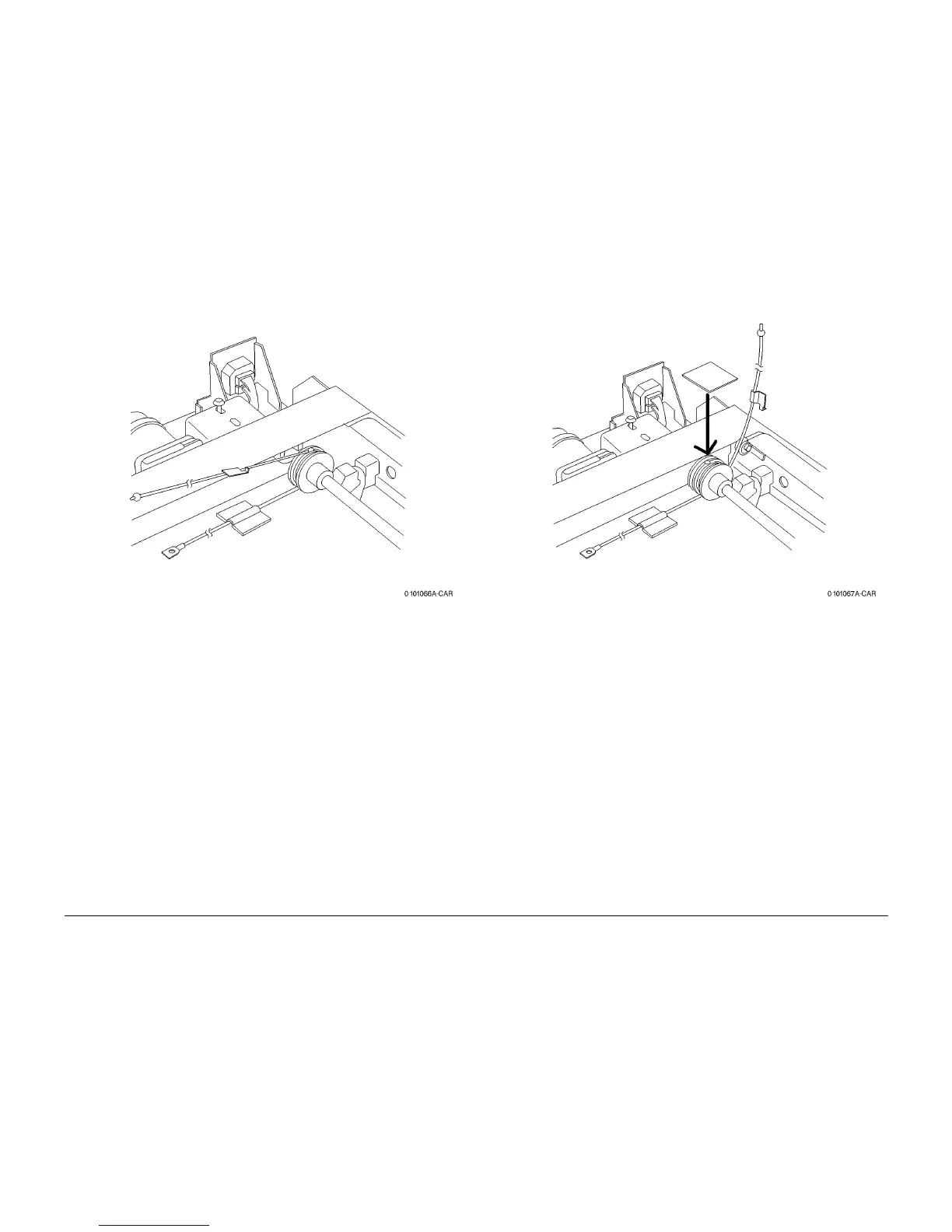

b. Wind cable (spring hook side) onto pulley for 2.5 turns. Tape and lock cable (on
spring hook) on frame (Figure 5).
Figure 5 Locking Cable
c. Wind cable (ball side) onto pulley for 2.4 turns. Tape and lock cable wound on pulley
(Figure 6).
Figure 6 Locking Cable
