Xerox DocuColor 1632 Service Manual

6/02
4-47
DC1632/2240
REP 6.11
Repairs and Adjustments
Prelaunch Training/Review

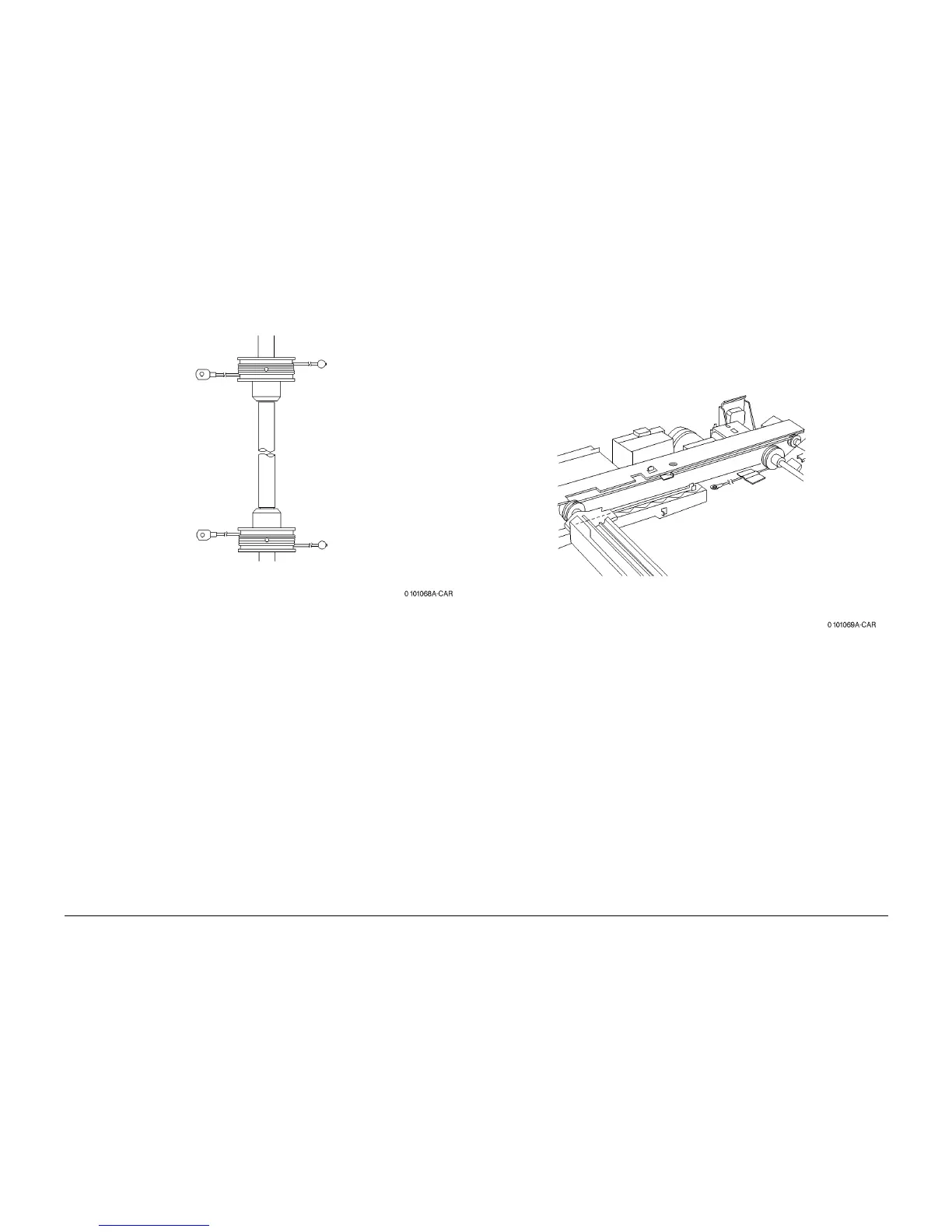

d. Check orientation of ends and number of carriage cable windings (front/rear) (Figure
7). Reconfigure as required.
Figure 7 Carriage Cable Windings
2. Install Carriage Cable (ball side) (Figure 8).
a. Hook cable to pulley (from bottom to top).
b. Hook cable to large pulley in Half Rate Carriage (from top to bottom).
c. Insert ball into frame hole.
Figure 8 Installing Carriage Cable (ball side)
