Status Indicator RAPs
Prelaunch Training/Review
3-951 Tray 2 No Paper
No paper in Tray 2
Procedure
Enter dC330 [007-121] and press Start. Actuate Tray 2 No Paper Sensor. Display changes
state.
YN
Go to OF 99-2 Transmissive Sensor RAP, repair Tray 2 No Paper Sensor (PL 15.3, PL
16.7).
Replace MCU PWB (PL 13.1).

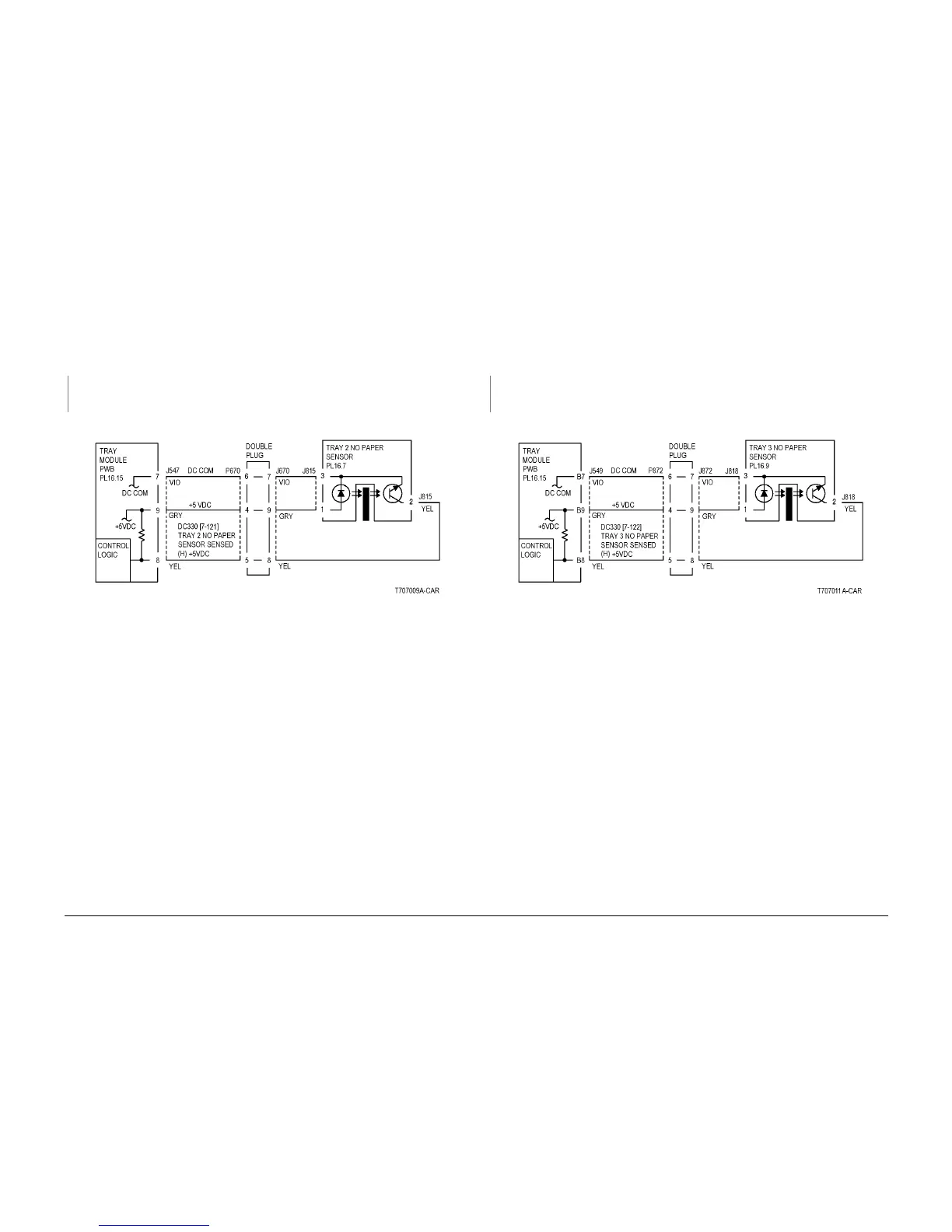

Figure 1 Tray 2 No Paper Sensor CD
3-952 Tray 3 No Paper
No paper in Tray 3
Procedure
Enter dC330 [007-122] and press Start. Actuate Tray 3 No Paper Sensor. Display changes
state.
YN
Go to OF 99-2 Transmissive Sensor RAP, repair Tray 3 No Paper Sensor (PL 15.5, PL
16.9).
Replace MCU PWB (PL 13.1).
Figure 1 Tray 3 No Paper Sensor
