6/02
2-40
DC1632/2240
3-949, 3-950
Prelaunch Training/Review
Status Indicator RAPs
3-949 Tray 4 Not In Position
Tray 4 not in ready position.
Initial Actions
ï Check that the paper size setting is correct.
ï Check the Paper Size Sensor for obstructions or damage.
Procedure
Ensure Tray 4 is closed. The voltage measured at P/J548-5 on the Tray Module PWB (PL
16.15) corresponds to the paper size in the table.
YN
There is +5VDC measured at P/J548-6 on the Tray Module PWB (PL 16.15)
YN
Check the wires and connectors. If the check is OK, replace the Tray Module PWB
(PL 16.15)
Check the wires and connectors. If the check is OK, replace the Tray 2 Paper Size Sensor
(PL 16.1).
Check the wires and connectors, If the check is OK, replace the Tray Module PWB (PL 16.15).
If the problem continues, replace the Tray 4 Paper Size Sensor (PL 16.1).

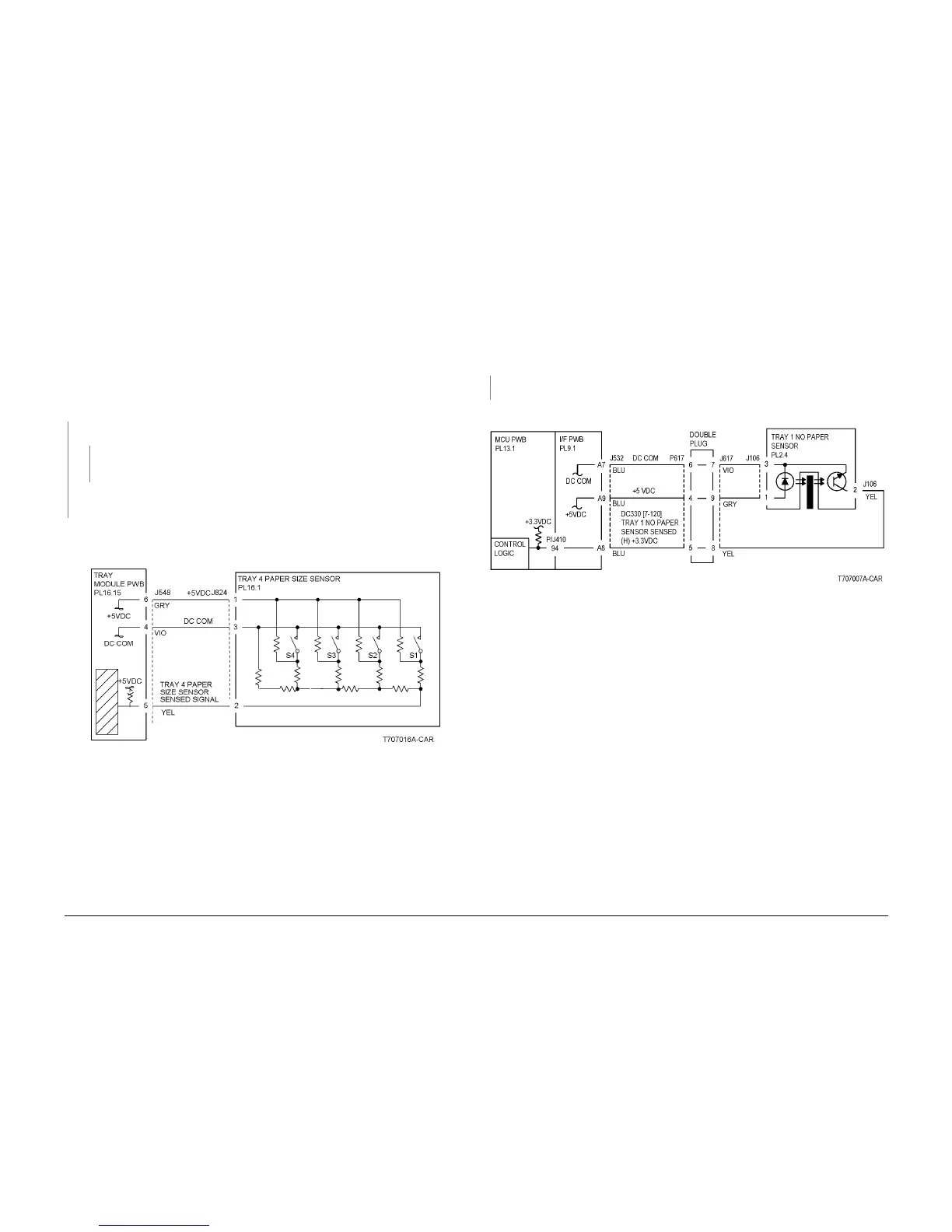

Figure 1 Tray 4 Paper Size Sensor
3-950 Tray 1 No Paper
No paper in Tray 1
Procedure
Enter dC330 [007-120] and press Start. Actuate Tray 1 No Paper Sensor. The display
changes state.
YN
Go to OF 99-2 Transmissive Sensor RAP, repair Tray 1 No Paper Sensor (PL 2.4).
Replace MCU PWB (PL 13.1).
Figure 1 Tray 1 No Paper Sensor CD
