OmniAccess 5740 Unified Services Gateway CLI Configuration Guide

Alcatel-Lucent

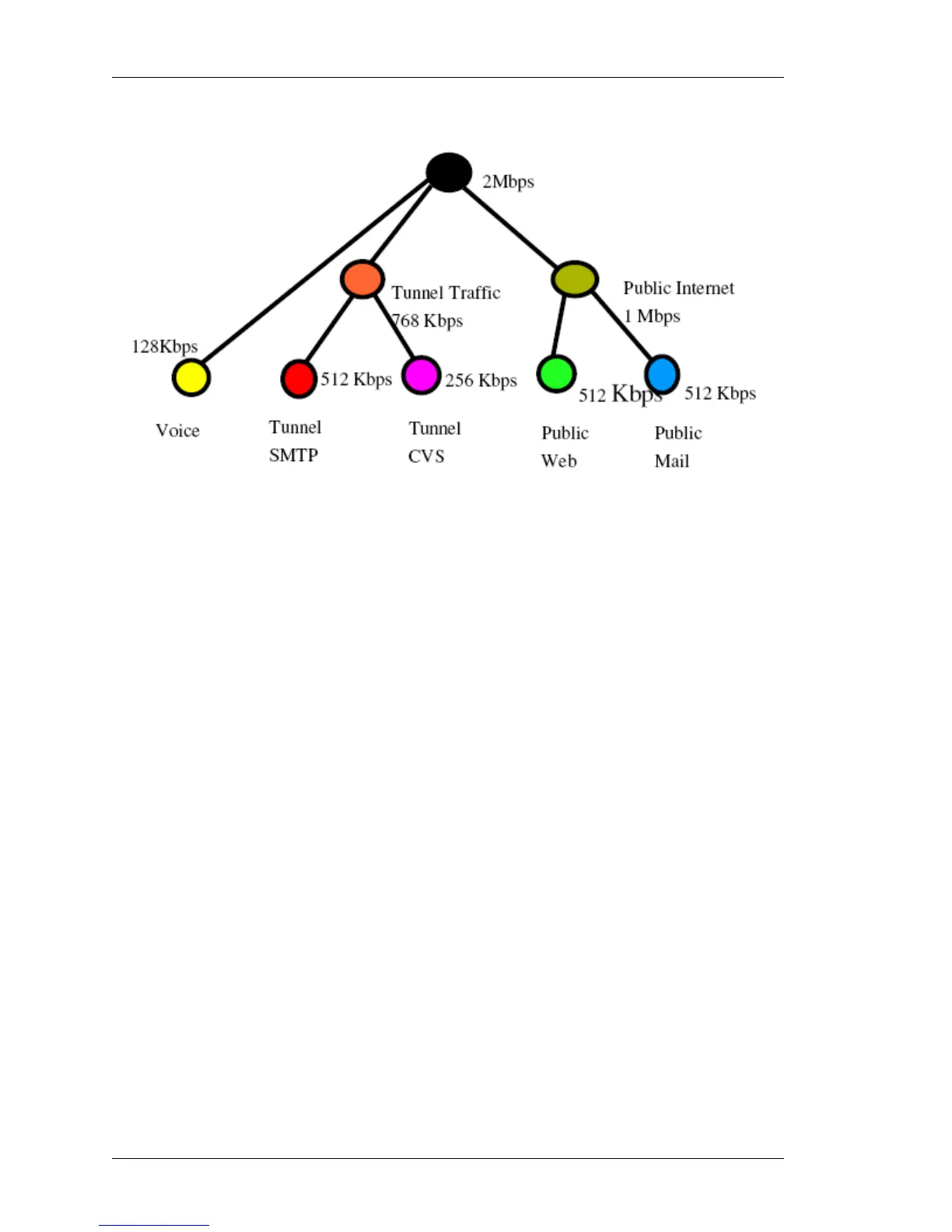

Figure 49: Link Sharing Solution

Hierarchical queues are configured using ‘service-policy’ command within a

policy. Thus policy-in-a-policy configuration provides hierarchal link sharing

structure.
