IP Security - Virtual Private Network

Left running head:

Chapter name (automatic)

900

Beta Beta

OmniAccess 5740 Unified Services Gateway CLI Configuration Guide

Alcatel-Lucent

DMVPN CONFIGURATION SCENARIOS USING OMNIACCESS

5740 USG

The OmniAccess 5740 USG topology below consists of the following

components:

• 2 OmniAccess 5740 USG

• 1 Hub that supports NHS functionality

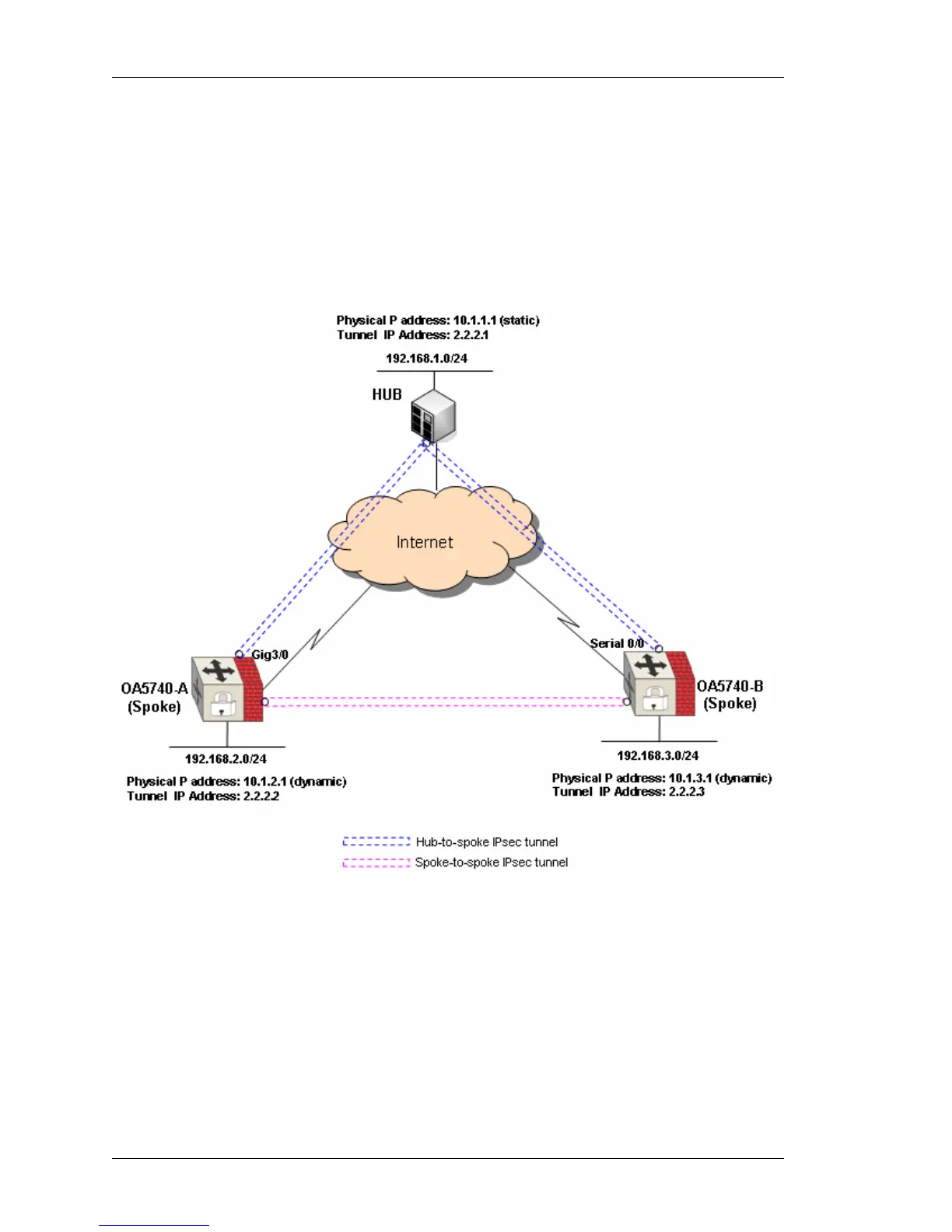

Figure 36: DMVPN tunnel interface configuration topology
