PVST+ CONFIGURATION EXAMPLES
EXAMPLE 1

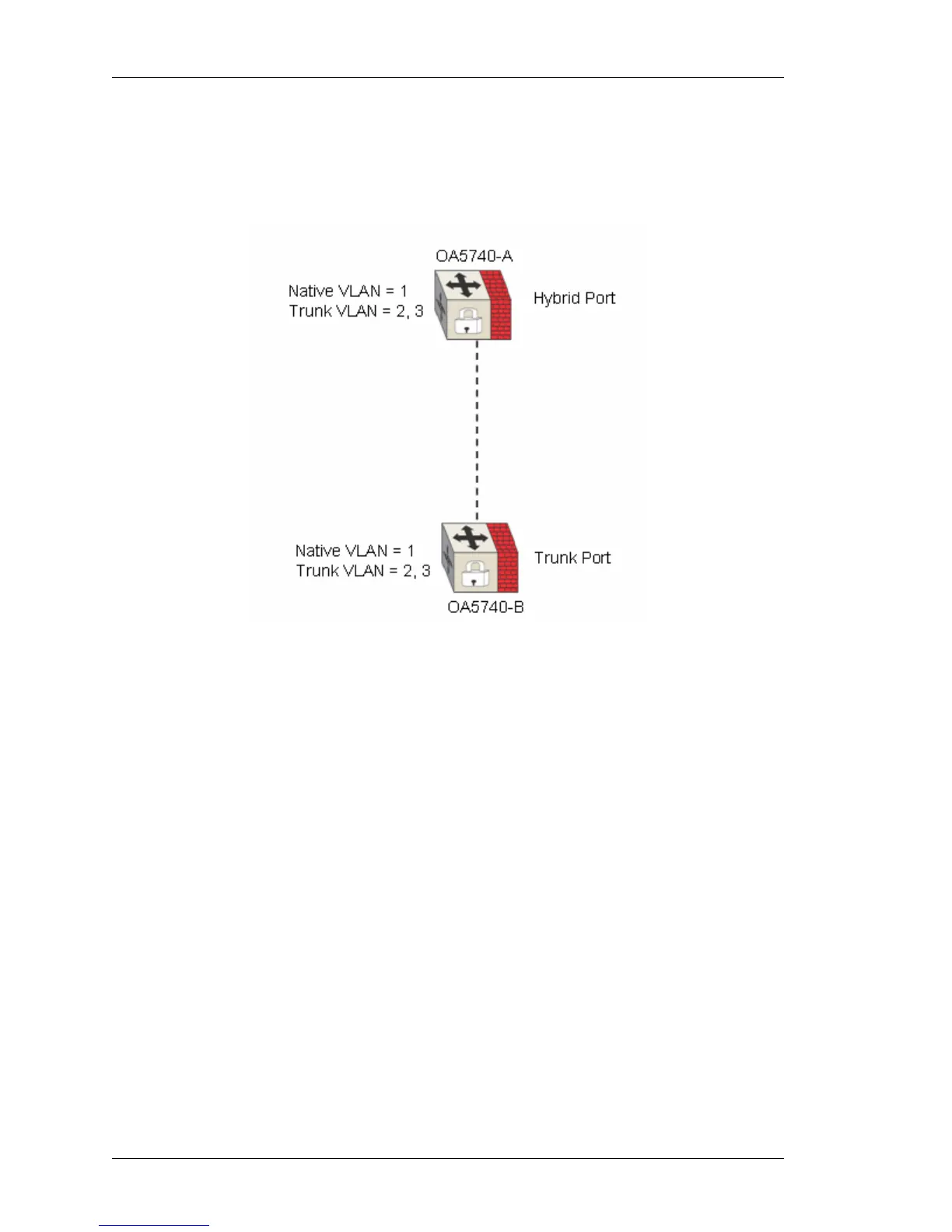

Figure 12: PVST+ Topology
F
OR SPANNING TREE
Spanning Tree for vlan 1: OA5740-B is Root
Spanning Tree for vlan 2: OA5740-B is Root
Spanning Tree for vlan 3: OA5740-A is Root
O
N OA5740-A
PVST Global configuration
ALU(config)# spanning-tree
ALU(config)# spanning-tree vlan 2
ALU(config)# spanning-tree vlan 3
ALU(config)# spanning-tree vlan 3 priority 3
ALU(config)# interface switchport0/0
ALU(config-if switchport0/0)# switchport mode hybrid
ALU(config-if switchport0/0)# switchport trunk allowed vlan 2 3
ALU(config-if switchport0/0)# no shutdown
