IDS/IPS TOPOLOGY
The topology consists of the following components:
• OmniAccess 5740 USG
• 3 PCs - with 2 PCs running Nessus
T
EST CASE
In the topology given below, OmniAccess 5740 USG is configured in the
Prevention mode. Attacks from PC-1 and PC-2 running application Nessus is
intercepted by the OmniAccess 5740 USG and dropped.

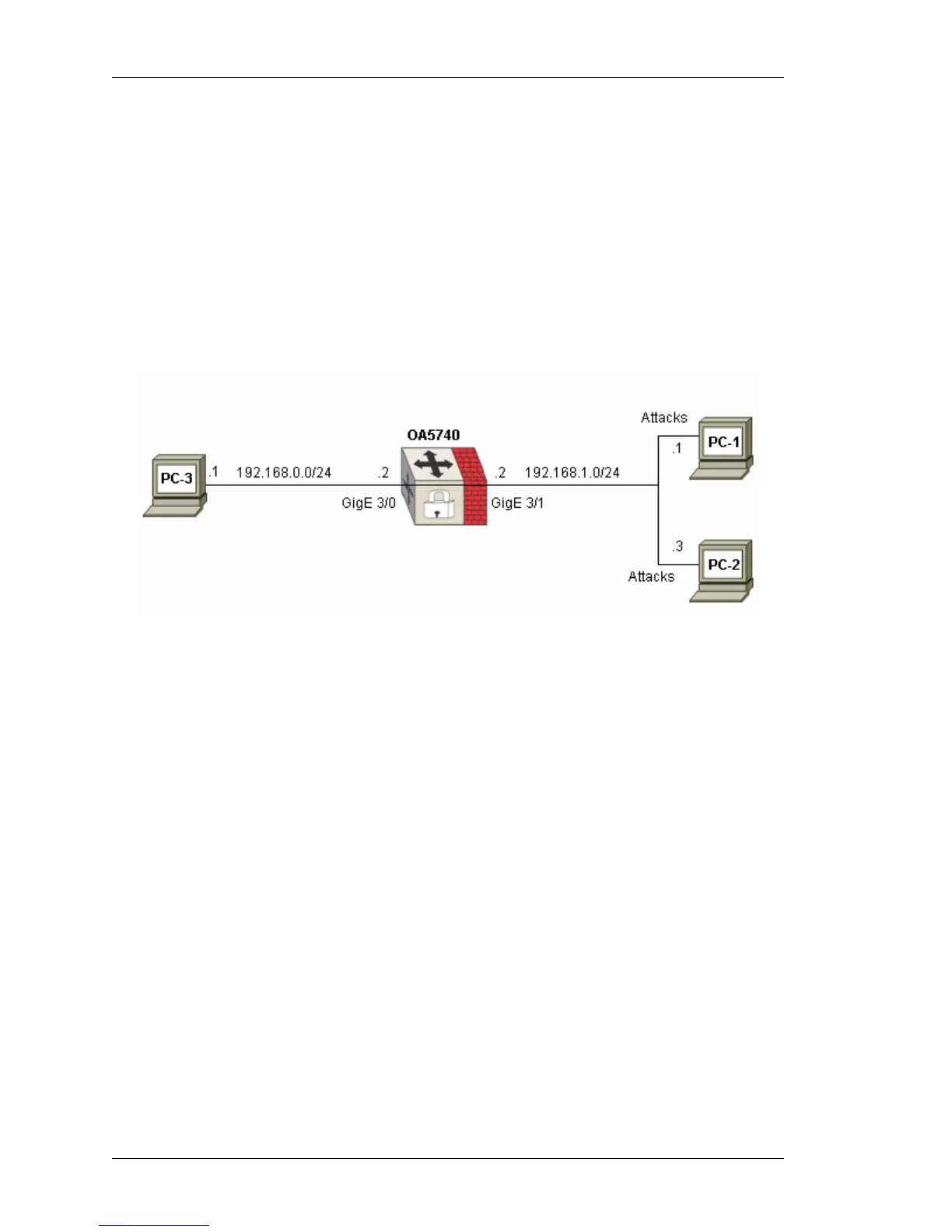

Figure 39: IDS/IPS Topology
