OmniAccess 5740 Unified Services Gateway CLI Configuration Guide
PORT MONITORING CONFIGURATION ON OMNIACCESS 5740
USG

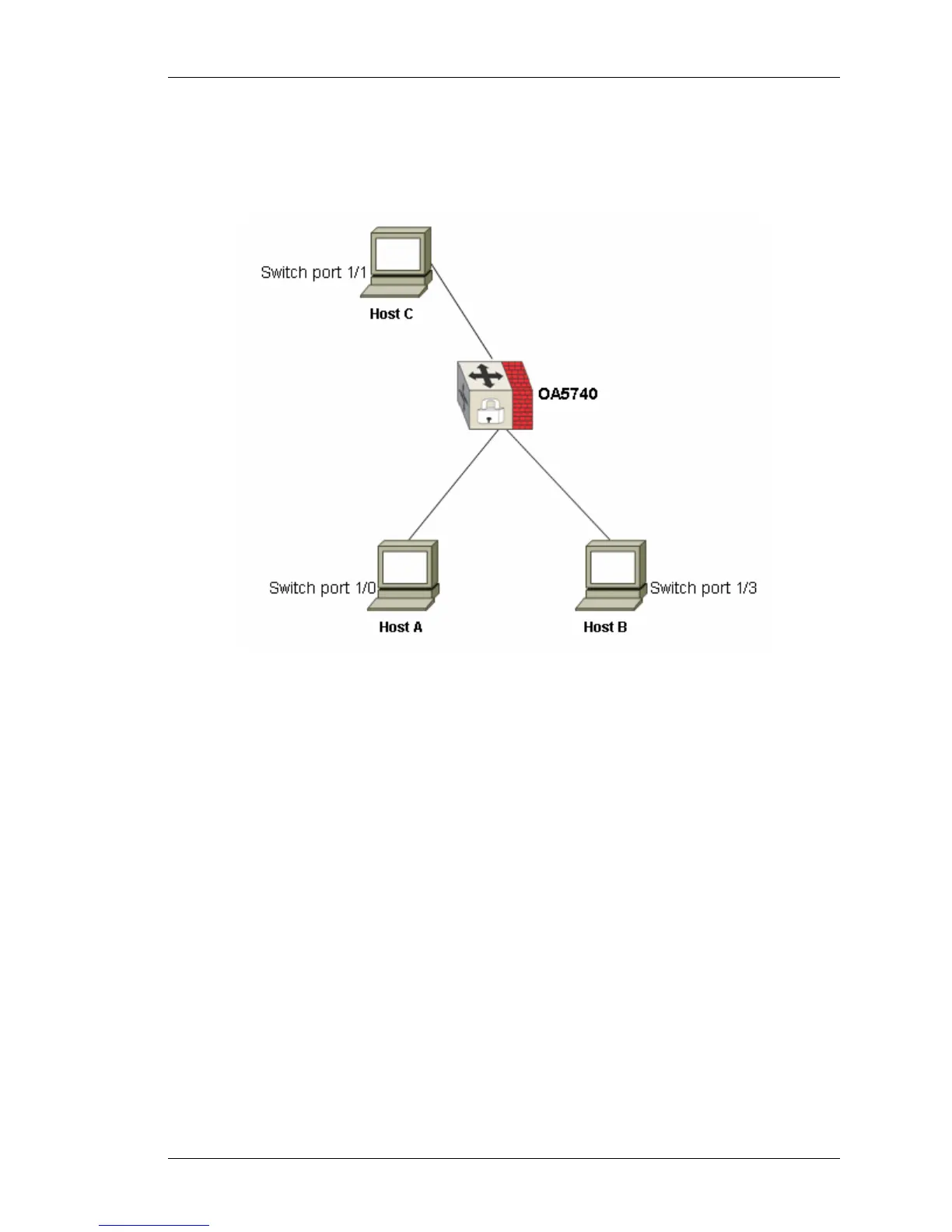

Figure 19: Port Monitoring Topology
P
ROCEDURE
The above topology shows that the Host A, Host B, and Host C are connected to
switchport 1/0, 1/3, and 1/1 respectively.
Switchport 1/0 is to be monitored (for both ingress and egress traffic) using
switchport 1/3. Switchport 1/3 being the monitoring port, has to receive the
mirrored data from switchport 1/0.
To configure port monitoring, the following configuration is to be used:
C
ONFIGURE PORT MONITORING
ALU(config)# interface switchport 1/3
ALU(config-if switchport1/3)# port monitor switchport 1/0
both
