SWITCHING CONFIGURATION USING OMNIACCESS 5740 USG
When no VLANs are configured on the L2 ports, all ports of the switch belong to
one broadcast domain. All the L2 ports participate in pure bridging.
OMNIACCESS 5740 USG AS A SWITCH WITH NO VLANS
The topology consists of the following components:
• 1 OmniAccess 5740 USG
• 6 PCs/Laptops

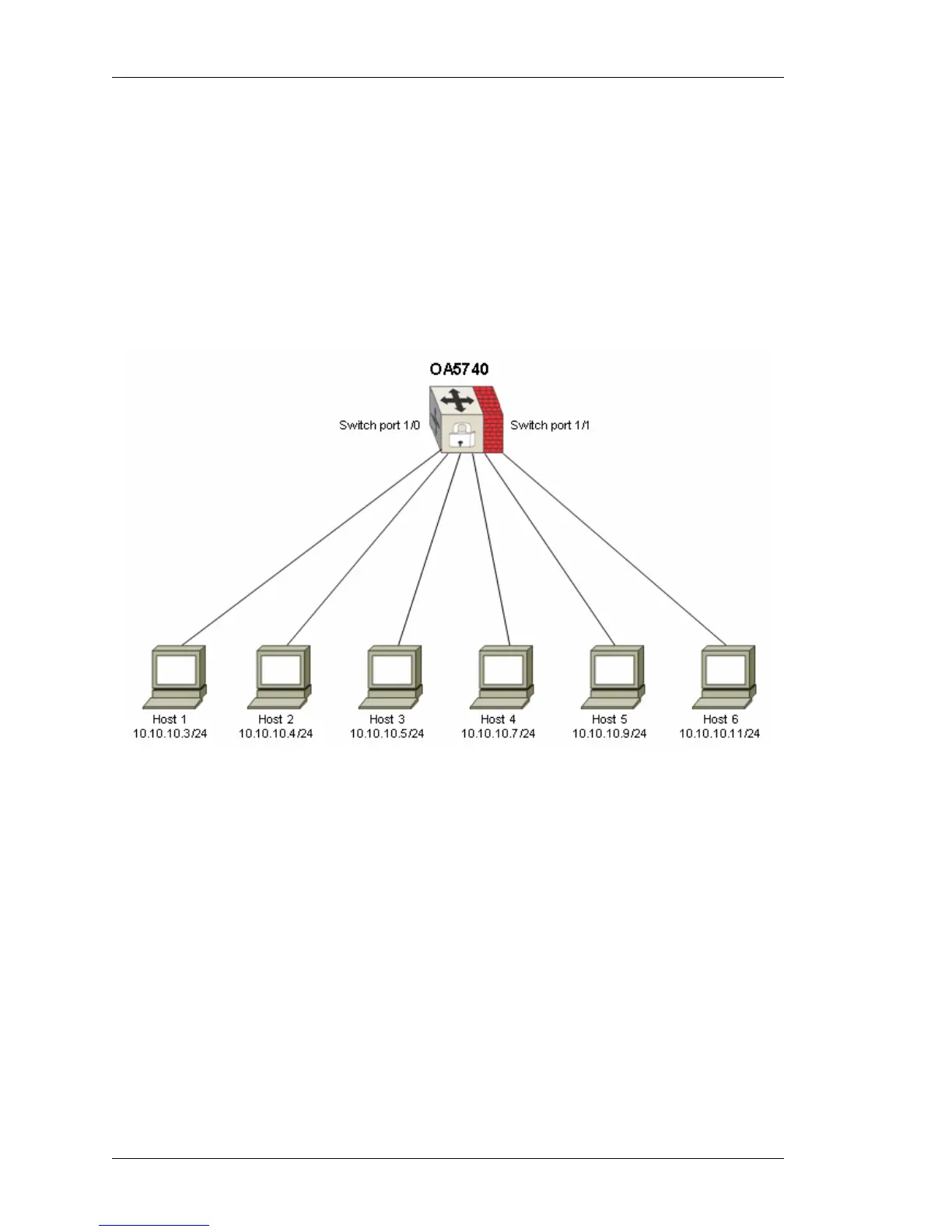

Figure 9: Switching with no VLANs
P
ROCEDURE
By default, all Switch ports will be in bridged mode. They belong to 1 broadcast
domain.
ALU(config)# interface switchport1/0
ALU(config-if switchport1/0)#
ALU(config-if switchport1/0)# no shutdown
To check for reachability between hosts, verify with ping from, say Host 1 to Host
5.
