BCP CONFIGURATION USING OMNIACCESS 5740 USG
TOPOLOGY FOR BCP CONFIGURATION ON OMNIACCESS 5740 USG
Consider a scenario with two LANs OA5740-A and OA5740-B segregated by a
WAN link. The hosts in the LAN belong to same subnet and need to communicate
through the WAN link.

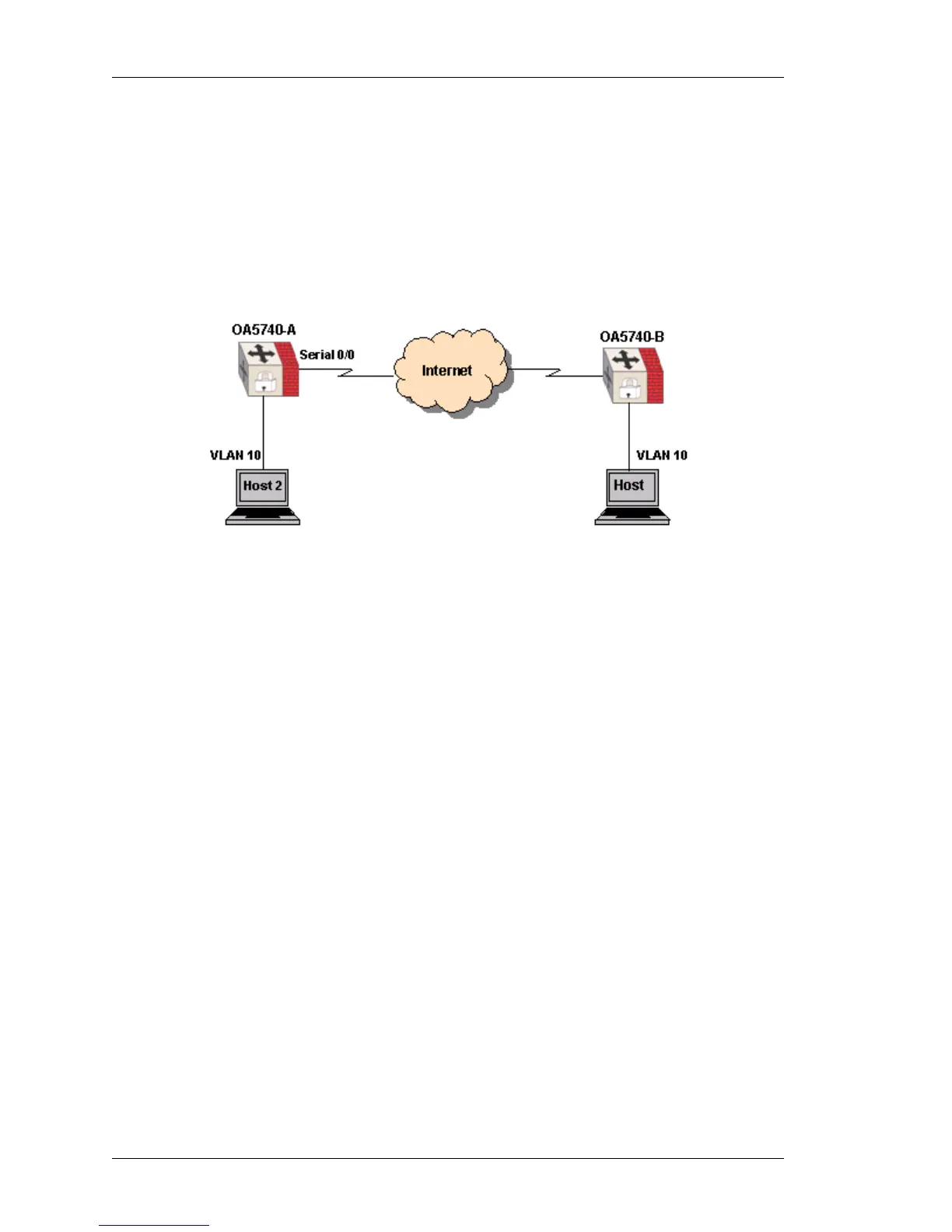

Figure 41: BCP configuration scenario on OmniAccess 5740 USG
By enabling bridging on the serial interface 0/0 on OA5740-A, packets coming out
of VLAN 10 are bridged as tagged packets.
O
N OA5740-A
Step 1: Configure a serial Interface, and administratively bring up the interface.
ALU(config)# interface Serial 0/0
ALU(config-if Serial0/0)# no shutdown
Step 2: Set PPP encapsulation on the interface
ALU(config-if Serial0/0)# encapsulation ppp
Step 3: Enable BCP on the interface.
ALU(config-if Serial0/0)# vlan 10 native
