Ethernet OAM (Operations, Administration, and Maintenance)
Left running head:
Chapter name (automatic)
398
Beta Beta
OmniAccess 5740 Unified Services Gateway CLI Configuration Guide
Alcatel-Lucent
ALCATEL-LUCENT SPECIFIC OVERVIEW
• Supports Ethernet OAM functionality on Gigabit Ethernet interface and BCP
enabled T1E1 serial interface on OmniAccess 5740 USG.
E
LEMENTS OF OAM

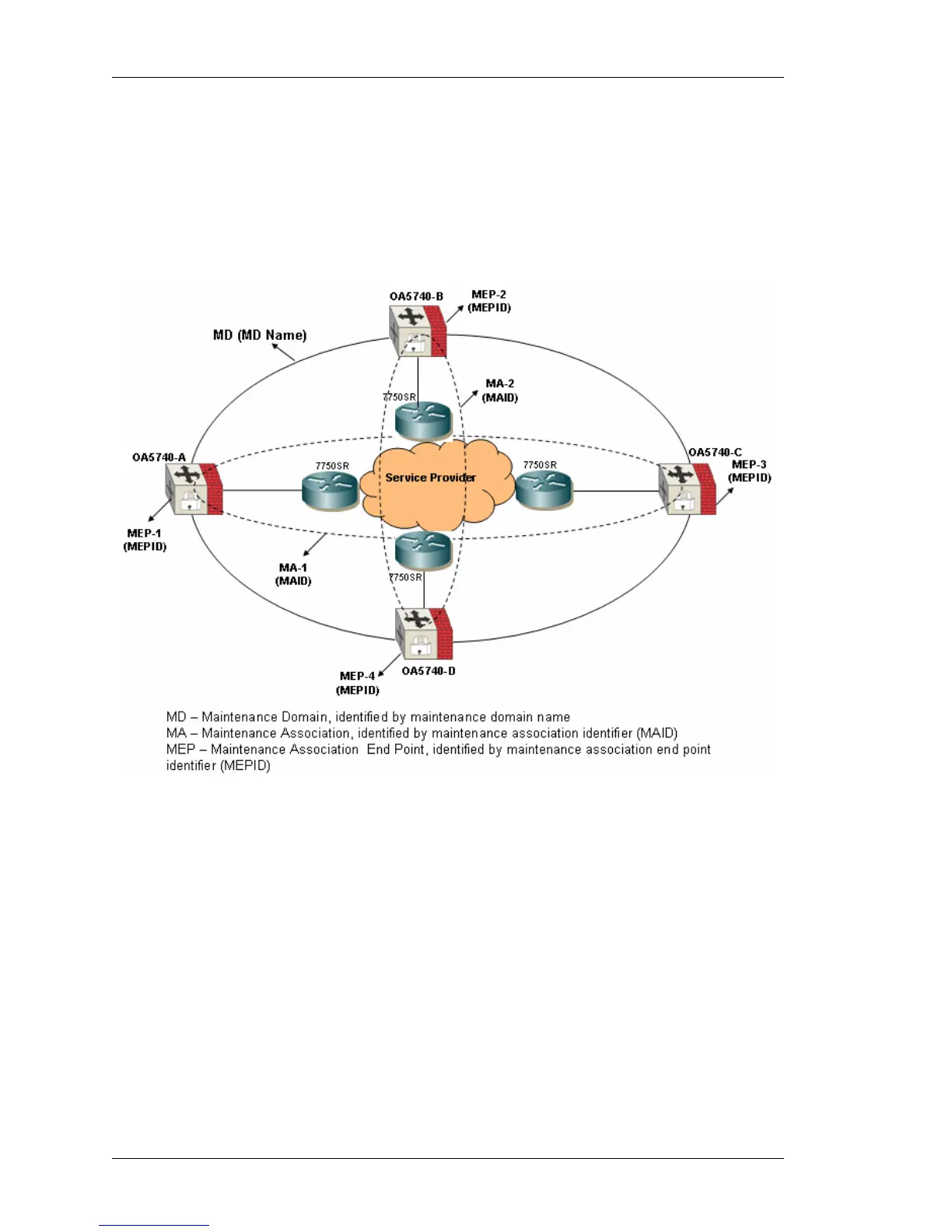

The following figure shows graphical representation of the main elements of OAM:
• Maintenance Domain (MD)
The network or the part of the network for which faults in connectivity can be
managed. The boundary of a MD is defined by a set of DoSAPs, each of
which can become a point of connectivity to a service instance.
• Maintenance Domain Name
The identifier, unique over the domain for which CFM is to protect against
accidental concatenation of service instances, of a particular MD.
• Maintenance Association (MA)
A set of MEPs, each configured with the same MAID and MD Level,
established to verify the integrity of a single service instance. MA can also be
thought of as a full mesh of maintenance entities among a set of MEPs so
configured.
