CONFIGURATION EXAMPLE OF LFI ON FR
The following example illustrates the configuration of LFI on a FR interface.
In the following example, the goal is to configure LFI by configuring fragment size
on FR on OA5740-A and OA5740-B so that the serialization delay of 10 ms on
Serial 0/0 interface is achieved.

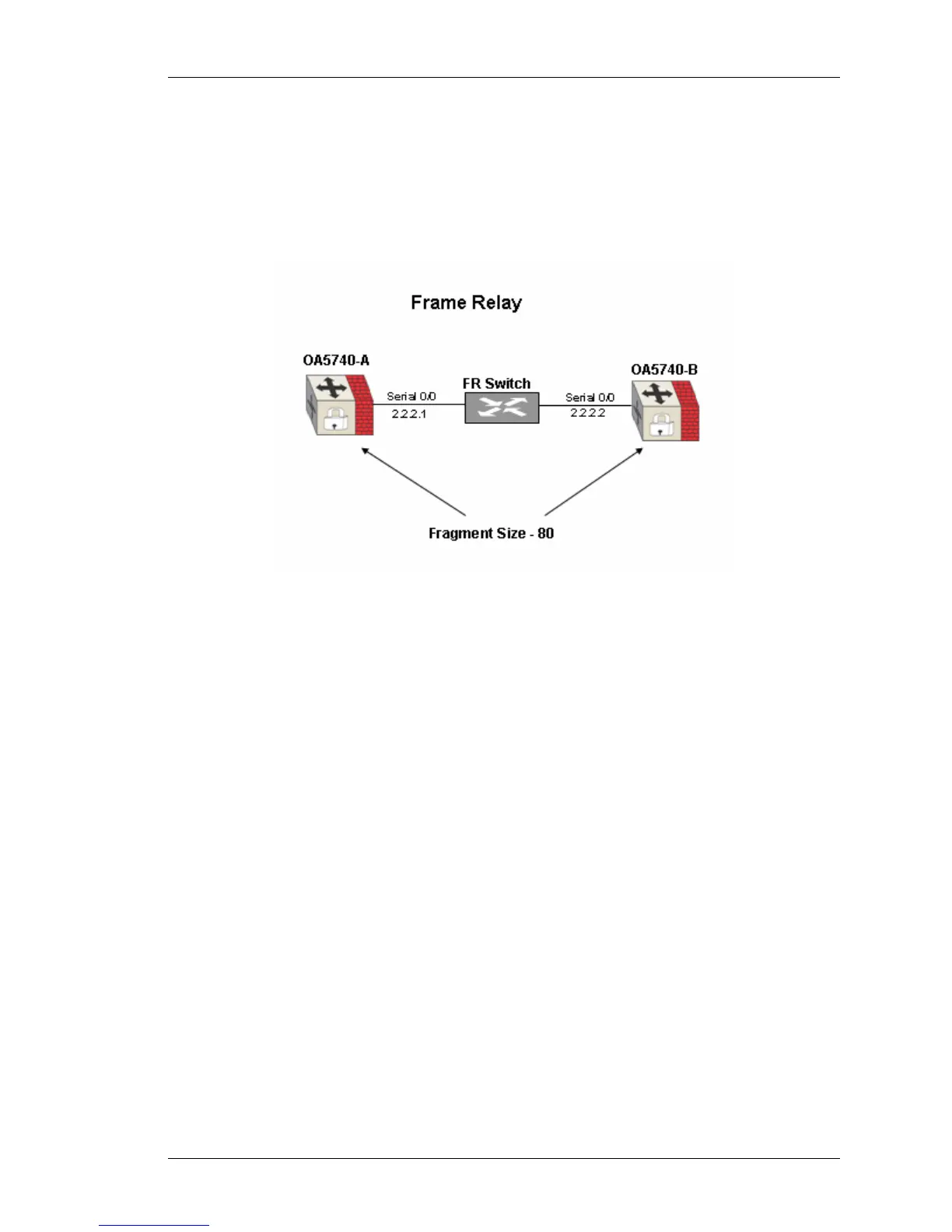

Figure 1: LFI Configuration on FR
On OA5740-A
a) Configure Serial interface. Set FR encapsulation and configure DLCI on the
interface.
ALU-1(config)#controller T1 0/0
ALU-1(config-controller T1)# channel-group 0 timeslots 1
ALU-1(config-controller T1)# exit
ALU-1(config)#
ALU-1(config)#interface Serial 0/0:0
ALU-1(config-if Serial0/0:0)# no shutdown
ALU-1(config-if Serial0/0:0)# ip address 2.2.2.1/24
ALU-1(config-if Serial0/0:0)# encapsulation frame-relay
ALU-1(config-if Serial0/0:0)# frame-relay interface-dlci 100
b) Configure policy map. Associate match-list and class map with the policy map.
ALU-1(config)# match-list m1
ALU-1(config-match-list-m1)# tcp any any
ALU-1(config)# class-map c1
ALU-1(config-qos-c1)# match m1
ALU-1(config)# policy-map P1
ALU-1(config-qos-P1)# class C1
ALU-1(config-qos-P1-C1)# priority
