OMNIACCESS 5740 USG AS A SWITCH WITH VLANS
TOPOLOGY
The topology consists of the following components:
• 1 OmniAccess 5740 USG
• 6 PC/Laptops
• 3 VLANs configured
L2 ports can be configured for 3 Modes of operation: Access, Trunk, Hybrid

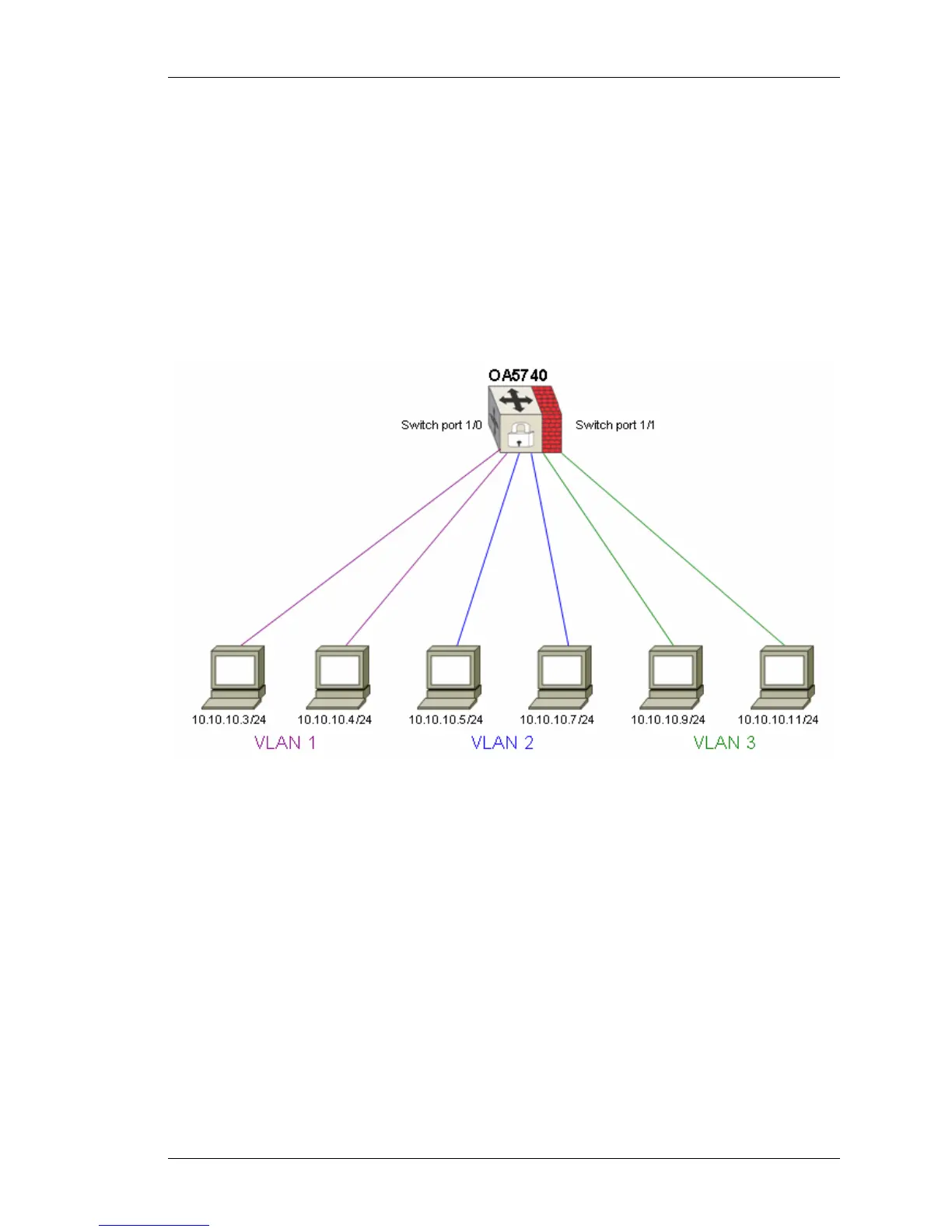

Figure 10: Switching with VLAN
P
ROCEDURE
3 VLANs - VLAN1, VLAN2, VLAN3 are configured.
VLAN 1 is configured with ports S0/2 and S0/3. VLAN2 is configured with ports
S0/4 and S0/5 and VLAN3 is configured with ports S0/6 and S0/7.
Hence, hosts 1 and 2 belong to VLAN1, hosts 3 and 4 belong to VLAN2, and
hosts 5 and 6 belong to VLAN3.
T
O CONFIGURE ACCESS VLAN
ALU(config-if switchport1/0)# switchport access vlan 10
ALU(config-if switchport1/0)#
T
O DELETE ACCESS VLAN CONFIGURED
ALU(config-if switchport1/0)# no switchport access vlan
