IRB CONFIGURATION USING OMNIACCESS 5740 USG
TOPOLOGY FOR IRB CONFIGURATION ON OMNIACCESS 5740 USG
The topology consists of the following components:
• 1 OmniAccess 5740 USG
• A Serial Connector
• 4 PCs/Laptops

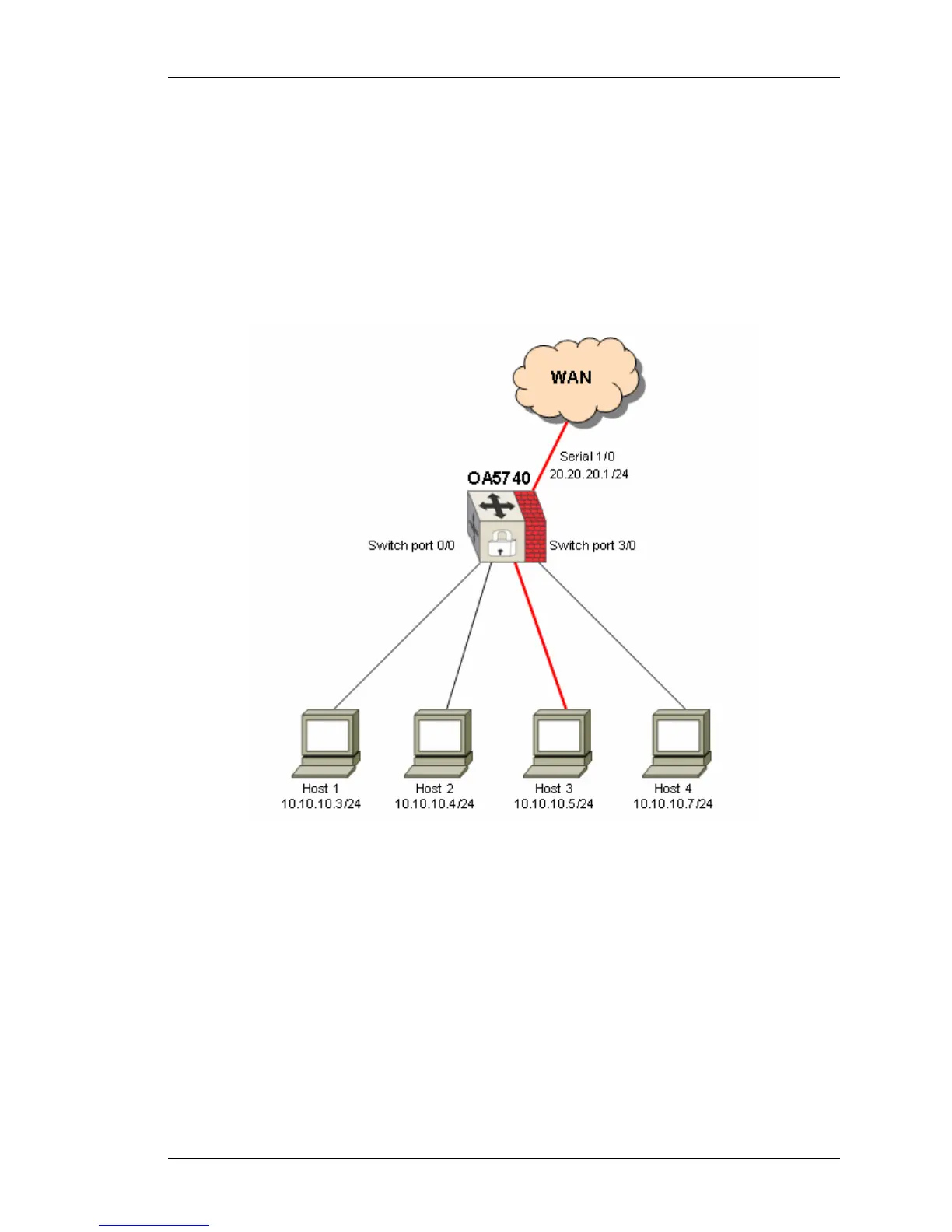

Figure 14: IRB Topology
P
ROCEDURE
By default, all switchports will be in bridge mode. They belong to one broadcast
domain. By configuring IRB on OmniAccess 5740 USG, local or unroutable traffic
is bridged among bridge interfaces and routable traffic is routed to other routed
interfaces.
Based on the above given topology, configure VLAN 100 on Switchport 2. This will
route the traffic to another interface.
