CONFIGURING IPSEC BETWEEN OMNIACCESS 5740 USG AND
S
ONICWALL (PRO 3060)
The following scenario explains how to establish a IPsec tunnel between the
OmniAccess 5740 USG system and Sonicwall.
Topology:

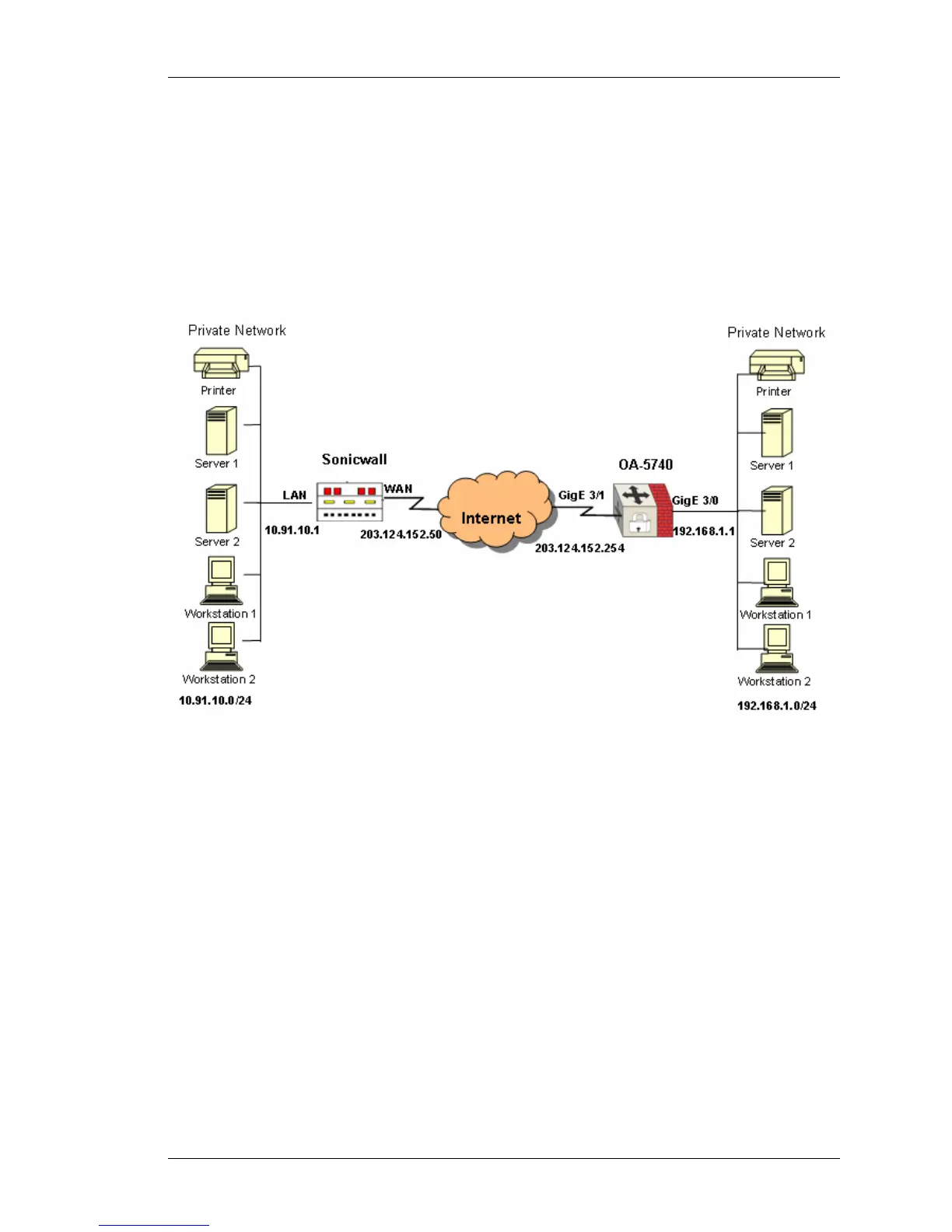

Figure 71: IPsec Interoperability Between OmniAccess 5740 USG and
Sonicwall PRO 3060
The above network shows the setup used to create a tunnel between Sonicwall
and OmniAccess 5740 USG.
The tunnel is built to allow network behind the OmniAccess 5740 USG gateway
(192.168.1.0) to communicate with network behind Sonicwall (10.91.10.0). The
IPsec tunnel hence built allows the networks to communicate with each other in a
secure manner.
