Electrical installation
Type 8098 FLOWave L

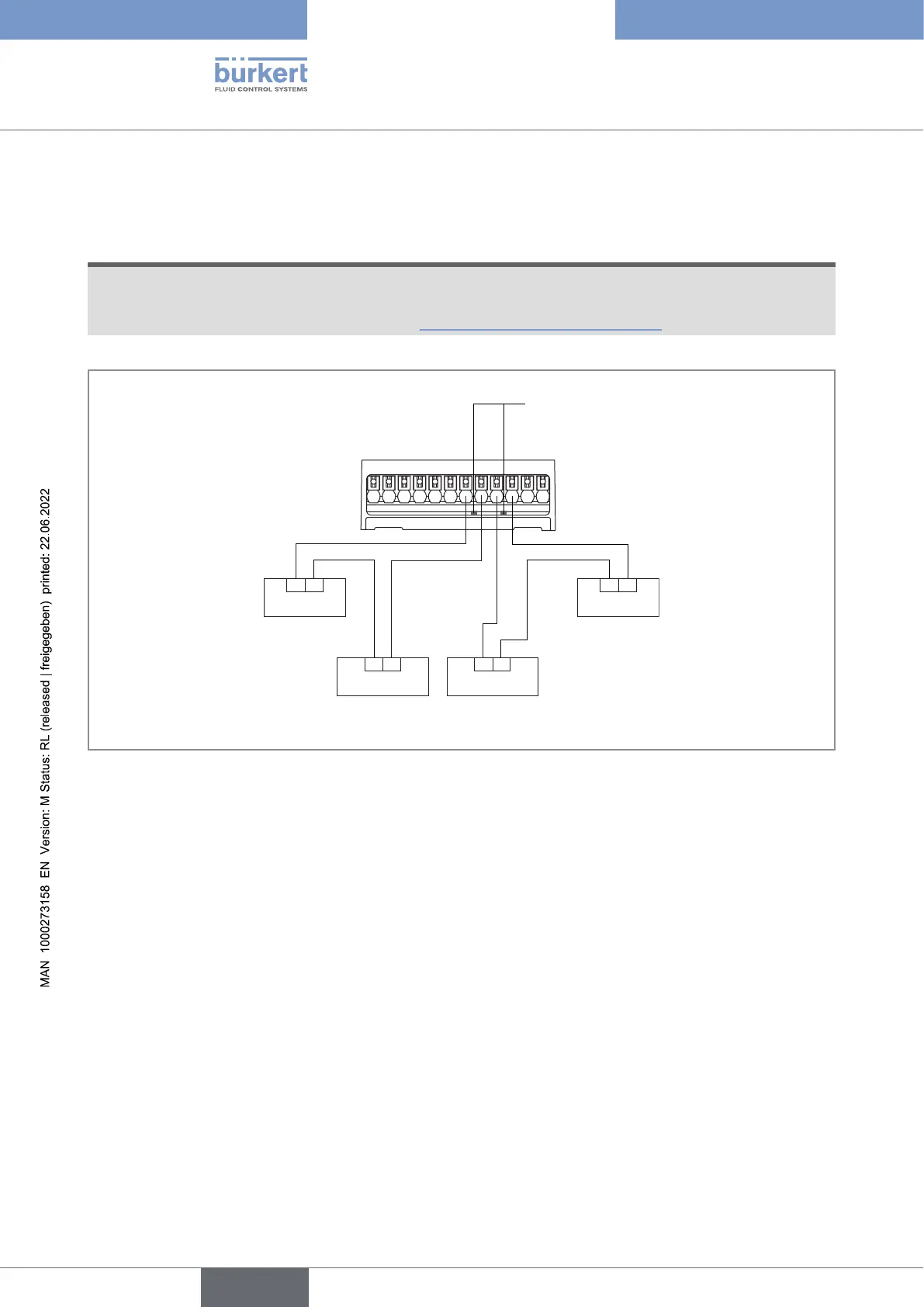

8.15 Wiring output 2 (digital) and output 3 congured as a
digital output (device variant with cable glands)
NOTICE
Riskofshort-circuitifthecongurationofoutput3iswrong.
▶ 
.
A digital output can be wired either in NPN mode or in PNP mode.
11234567891 1210
+-
+-
12-35 V DC
+-
12-35 V DC
+-

to output 3

to output 2
Power supply for
output 3
Power supply for
output 2

related digital output is
switched to ON
 
