Electrical installation
Type 8098 FLOWave L
Cable and conductors connected


connector
Cable and conductors
connected inside the device

female connector
Cable and conductors
connected inside the device


 
 

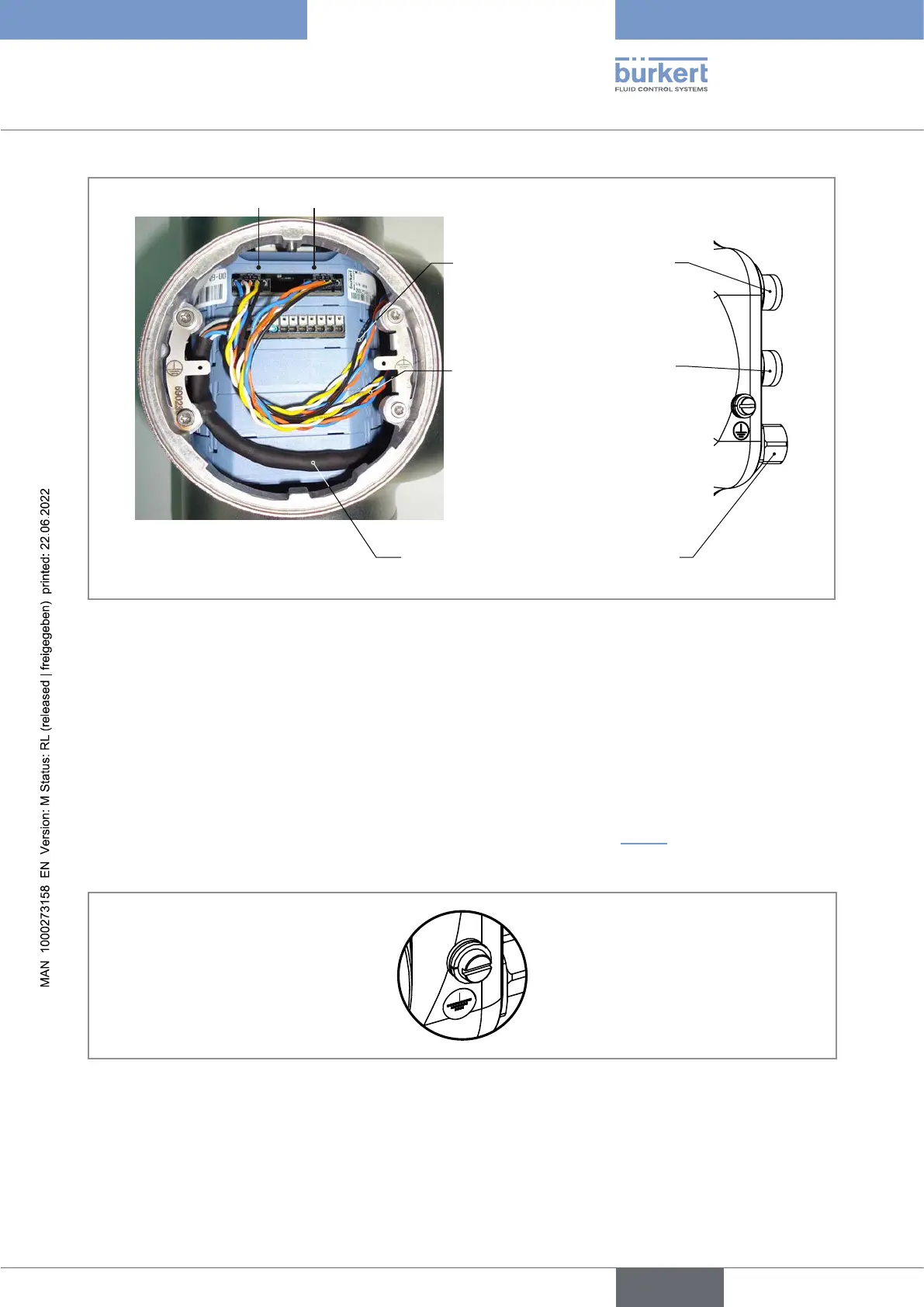

8.19 Connecting the functional earth (device variant with
two 4-pin M12 female connectors – Ethernet device
variant)
For a proper function of device always connect the yellow/green functional earth conductor to the functional
earth screw on the outer surface of the transmitter housing.
→ 
→ Connect the functional earth conductor to the functional earth screw, see .
→ 
 
